Quick Details
-
Voltage:
-
according to your local requiremnet
-
Dimension(L*W*H):
-
2.8*1.2*1.8m
-
Year:
-
2019
-
Weight (KG):
-
2800 kg
-
Power (kW):
-
30
-
Product name:
-
Shredder machine
-
Blade number:
-
20 pcs
-
Blade thickness:
-
30mm
-
Crushing chamber:
-
600x550mm
-
Mainshaft speed:
-
30rmin
-
Blade mateiral:
-
Cr12Mov
-
Wearing parts:
-
Blade
-
Weight:
-
2.8t
-
Power:
-
15kwx2
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Huahong
-
Model Number:
-
600
-
Voltage:
-
according to your local requiremnet
-
Dimension(L*W*H):
-
2.8*1.2*1.8m
-
Year:
-
2019
-
Weight (KG):
-
2800 kg
-
Power (kW):
-
30
-
Product name:
-
Shredder machine
-
Blade number:
-
20 pcs
-
Blade thickness:
-
30mm
-
Crushing chamber:
-
600x550mm
-
Mainshaft speed:
-
30rmin
-
Blade mateiral:
-
Cr12Mov
-
Wearing parts:
-
Blade
-
Weight:
-
2.8t
-
Power:
-
15kwx2

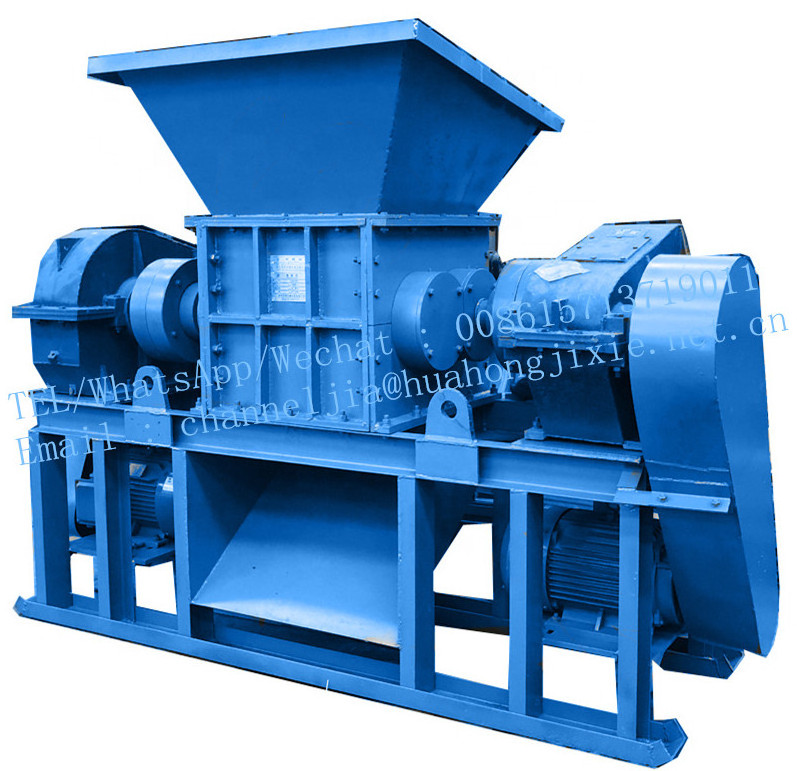

Intraduce of tire shredder machine
The tire shredding machine can reduce the material size by cutting, tearing and extrusion.
the tyre shredding machine is widely used in waste plastics, waste rubber, wood and other large volume waste.
The feeding materials of tire shredder machine can be :
1. Bicycles, motorcycles, car shells, waste metal.
2. Cans, paint bucket, iron sheet, color steel tile.
3. The final particle size is based on your demand, and the outlet size can be changed according to change the screen.
|
Technical data of Shredder machine
|
|
|
|
|
|
|
|
|||||||
|
Model
|
Power
(kw)
|
Blade
number
|
Blade thickness(mm)
|
Blade DIA
(mm)
|
Crushing chamber
|
Capacity
(t/h)
|
Dimension
(m)
|
|||||||
|
400
|
11
|
20
|
20
|
300
|
400*400
|
0.5-1.5
|
1.6*1.2*1.5
|
|||||||
|
600
|
2*11
|
20
|
30
|
300
|
600*550
|
0.5-2
|
2.8*1.2*1.8
|
|||||||
|
800
|
2*15
|
20
|
40
|
300
|
800*600
|
1-3
|
3.0*1.2*1.9
|
|||||||
|
1000
|
2*30
|
24
|
40
|
300
|
1000*700
|
1.5-3.5
|
3.5*1.8*2.0
|
|||||||
|
1200
|
2*37
|
30
|
40
|
400
|
1200*800
|
2-5
|
4.0*2.1*2.3
|
|||||||
|
1600
|
2*45
|
40
|
40
|
400
|
1600*900
|
3-7
|
4.5*2.1*2.2
|
|||||||
|
2000
|
2*55
|
50
|
40
|
450
|
1600*900
|
5-15
|
5.5*2.1*2.9
|
|||||||
Main Features of tyre shredder
1.Heavy-duty construction and efficient performance are determined by the precisely processed combined frame made of extra-thick plates
2. Wide angle, hexagon prism of power slewing axis; large hopper with big caliber for feeding large material
3. It adopts
PLC control system,
automatic overload protection and auto reverse switch
4. The low rotation speed results in a particularly quiet shredding process with low levels of dust generation
5. It can be adjusted according to customer specific requirements for throughput volume, material to be processed, etc
|
Model
|
600
|
Crushing chamber size
|
600x550
|
|
Power
|
2x11 kw
|
Capacity
|
1-3 t/h
|
|
Knife number
|
20 pics / can be adjust
|
Overall size
|
2.8x1.2x1.8 m
|
|
Knife thickness
|
30 mm / can be adjust
|
Weight
|
1.5 t
|
