Quick Details
-
Weight (KG):
-
300
-
Voltage:
-
220V/380V
-
Current:
-
350A
-
Dimensions:
-
1440/1840/2000
-
Use:
-
welding
-
Application:
-
Industrial Automatic
-
Output:
-
Depends
-
Usage:
-
Production Line
-
Product name:
-

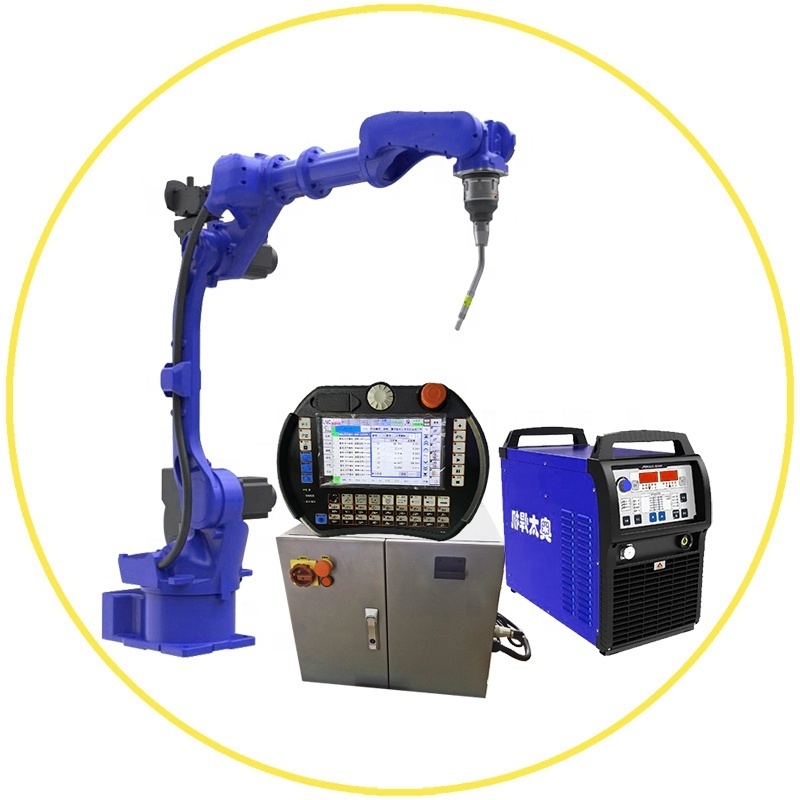

Industrial Robot Arm 6 Axis
-
After Warranty Service:
-
Video technical support
-
Type:
-
Six-axis Vertical Multi-joint
-
Function:
-
Welding
-
Machine type:
-
Welding Robot Arm
-
Controller System:
-
LNC
-
Degree of freedom:
-
360
Quick Details
-
Marketing Type:
-
Hot Product
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Rayman
-
Weight (KG):
-
300
-
Voltage:
-
220V/380V
-
Current:
-
350A
-
Dimensions:
-
1440/1840/2000
-
Use:
-
welding
-
Application:
-
Industrial Automatic
-
Output:
-
Depends
-
Usage:
-
Production Line
-
Product name:
-
Industrial Robot Arm 6 Axis
-
After Warranty Service:
-
Video technical support
-
Type:
-
Six-axis Vertical Multi-joint
-
Function:
-
Welding
-
Machine type:
-
Welding Robot Arm
-
Controller System:
-
LNC
-
Degree of freedom:
-
360
Product Description
Specification
|
item
|
Parameter
|
|
Model No.
|
MR10-1440
|
|
Controlled axis
|
6-DOF
|
|
Max payload
|
10 kg
|
|
Max stroke
|
1440mm
|
|
IP Level
|
J1, J2-IP56; J3, J4, J5, J6-- IP67
|
|
Installation mode
|
Floor type, ceiling type
|
|
Robot mass
|
172 kg
|
|
Repeatability
|
±0.05 mm
|
|
Welding machines |
Standard: Aotai NBC-350R (MIG/MAG/CO2)
Optional: Aotai NBC-350RL (low spatter) Optional: Aotai MIG-350RP (pulse MIG) |
|
Welding current
|
350A/500A
|
|
Welding torch
|
Standard air-cooling torch with built-in anti-collision protection
|
|
Travel range
|
|
|
J1 axis S
|
±160°
|
|
J2 axis L
|
+80°~-145°
|
|
J3 axis U
|
+145°~-75°
|
|
J4 axis R
|
±190°
|
|
J5 axis B
|
+50°~-210°
|
|
J6 axis T
|
±230°
|
|
Travel Speed
|
|
|
J1 axis S
|
199.5 ˚/s
|
|
J2 axis L
|
159.3 ˚/s
|
|
J3 axis U
|
199.5 ˚/s
|
|
J4 axis R
|
392 ˚/s
|
|
J5 axis B
|
272 ˚/s
|
|
J6 axis T
|
1000 ˚/s
|
