- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WONRAY&WRST
-
Model Number:
-
700-12, 600-9
-
Manufacturer:
-
YANTAI WonRay Rubber Tyre Co.,Ltd
-
Color:
-
White, grey, black,green or customized
-
Usage:
-
forklifts
-
Certificate:
-
ISO9001, REACH
-
Factory:
-
YES
-
Tire Type:
-
Pneumatic Shaped Solid Forklift Tire
-
Advantages:
-
Higher loading capacity, lower rollling resistance, no exploading etc
-
Layer of rubber:
-
Three layer super-flexible
-
Recommended Rim Width::
-
5.00, 4.00
Quick Details
-
Warranty:
-
1.5 years
-
Weight (KG):
-
47.6
-
Marketing Type:
-
2023 New products
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WONRAY&WRST
-
Model Number:
-
700-12, 600-9
-
Manufacturer:
-
YANTAI WonRay Rubber Tyre Co.,Ltd
-
Color:
-
White, grey, black,green or customized
-
Usage:
-
forklifts
-
Certificate:
-
ISO9001, REACH
-
Factory:
-
YES
-
Tire Type:
-
Pneumatic Shaped Solid Forklift Tire
-
Advantages:
-
Higher loading capacity, lower rollling resistance, no exploading etc
-
Layer of rubber:
-
Three layer super-flexible
-
Recommended Rim Width::
-
5.00, 4.00
Product Description:

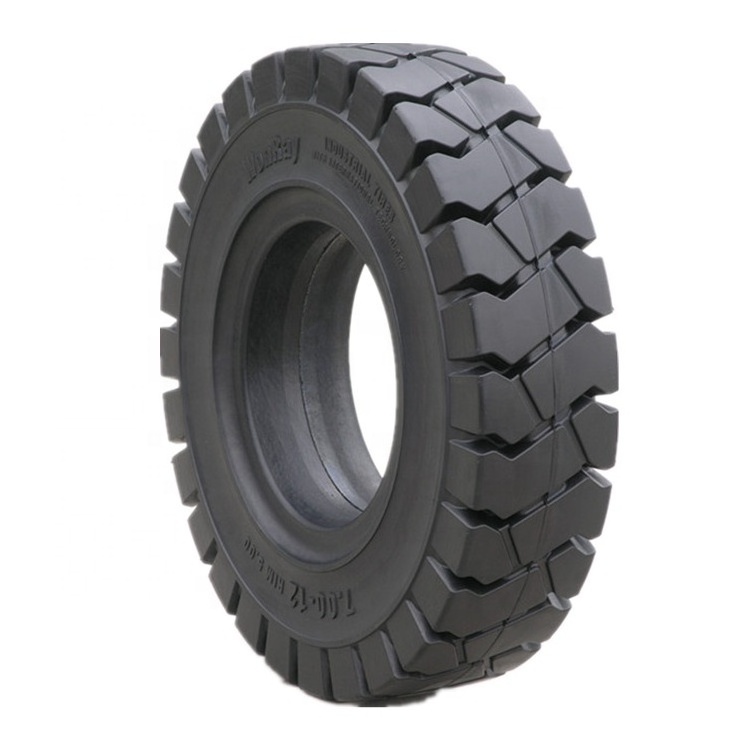

FRONT TIRES 700x12 SOLID FORKLIFT TIRES and REAR TIRES-600x9
The High quality with competitive price WonRay solid forklift tire was purpose built for today's material handling equipment requirements, including wear resistance, stability and comfort. The unique design of the new tread pattern solid forklift tire minimizes distortion while increasing overall stiffness making it an excellent choice for many forklifts.
Products display:
It is the ideal replacement of pneumatic tire in the fields of low speed, high load circumstances. Cushion rubber center provides good shock absorption, reducing damage and improves ride. High strength base rubber and steel reinforce base provides absolute rim adherence.
And b uilt in Nose retaining bead for easy mounting.
We had finished test on stacking machine of Sany Heavy Industry on 14.00-24 tire, and begin to supporting business for Sany in the domestic market. So please don't worry our quality.
Pattern Description
Product Parameters
| size of tire | Type | rim size | pattern no. |
outside diameter (mm) |
section width (mm) |
net weight (kg) |
|
5.00-8/3.00/3.50/3.75 |
solid tire | 3.00/3.50/3.75 | R701/R705/R706 | 466 | 127 | 18.4 |
| 6.00-9/4.00 | solid tire | 4.00 | R701/R705 | 533 | 140 | 26.8 |
| 600-15/4.50 | solid tire | 4.50 | R701 | 694 | 148 | 41.2 |
| 650-10/5.00 | solid tire | 5.00 | R701/R705 | 582 | 157 | 36 |
|
7.00-9/5.00 |
solid tire | 5.00 | R701 | 550 | 164 | 34.2 |
| 7.00-12/5.00 | solid tire | 5.00 | R701/R705 | 663 | 163 | 47.6 |
| 7.00-12/5.00 wide | solid tire | 5.00 | R705 | 663 | 188 | 52.3 |
| 7.00-15/5.50/6.00 | solid tire | 5.50/6.00 | R701 | 734 | 178 | 60 |
| 7.50-15/5.50 | solid tire | 5.50 | R701 | 768 | 188 | 75 |
| 7.50-16/6.00 | solid tire | 6.00 | R701 | 805 | 180 | 74 |
| 8.25-15/6.50 | solid tire | 6.50 | R701/R705/R700 | 829 | 202 | 90 |
| 14x4 1/2-8/3.00 | solid tire | 3.00 | R706 | 364 | 100 | 7.9 |
| 15x4 1/2-8/3.00 | solid tire | 3.00 | R701/R705 | 383 | 107 | 9.4 |
| 16x5-9/3.50/4.00 | solid tire | 3.50/4.00 | R706 | 404 | 126 | 12.5 |
| 16x6-8/4.33 | solid tire | 4.33 | R701/R705 | 416 | 156 | 16.9 |
| 18x7-8/4.33 | solid tire | 4.33 | R701/R705 | 452 | 155 | 20.8 |
| 18x7-8/4.33 wide | solid tire | 4.33 | R701 | 452 | 170 | 21.6 |
| 21x8-9/6.00 | solid tire | 6.00 | R701/R705 | 523 | 180 | 34.1 |
| 23x9-10/6.50 | solid tire | 6.50 | R701/R705 | 595 | 212 | 51 |
|
27x10-12/8.00 |
solid tire | 8.00 | R701/R705 | 680 | 236 | 74.7 |
|
28x9-15/7.00 (815-15) |
solid tire | 7.00 | R701/R705 | 700 | 230 | 61 |
| 140/55-9/4.00 | solid tire | 4.00 | R705 | 380 | 130 | 10.5 |
| 200/50-10/6.50 | solid tire | 6.50 | R701/R705 | 458 | 198 | 25.2 |
| 250-15/7.00/7.50 | solid tire | 7.00/7.50 | R701/R705 | 726 | 235 | 73.6 |
| 300-15/8.00 | solid tire | 8.00 | R701/R705 | 827 | 156 | 112.5 |
| 355/65-15/9.75 | solid tire | 9.75 | R701 | 825 | 302 | 132 |
More sizes are available. For more detailed information, please chat with us online, or leave us message, or call us directly!
Contact: Lucy Liu
QQ : 3494604374
Skype: wonray03
Tel/ Wechat: 0086-18364558710
Mainly Products Show
Cases
Our company has matching products to many prominent enterprises, such as Sany Heavy Industry, Carrie Heavy Industry, XCMG, Liugong Machinery, Maximal, Tailift, MCC Baosteel and Haipeng Indestry etc.
Our Company
Yantai Wonray Rubber Tire Co., Ltd. is a comprehensive enterprise engaged in researching, producing and selling industrial tires with high performance at low costs. Our annual production capacity is 300,000 pieces, among which 40% products are exported to oversea markets like North America, Europe, Southeast Asia, Oceania, Africa, etc. Our sales network spreads all over China, and we can provide excellent and complete after-sales services for all customers.
Costomers Inspection
Packaging and Shipping
Our Exhibition
Our Service
*
All our solid tires are in line with GB/T10824-2008
*
If needed, we can supply the correct rims and free pressing the rims into the tires
service for all customers
*
We will advise the speed limit and load capacity after sales
*
If any problem, please contact with us, we will reply in short time
*
If quality problem, please take photos, we will be responsible for this
*
For the need of developing new product, please offer us detailed technical requirement or
mould drawing.
Advantages
* Factory&Competitive price
* 26years' Strong Technical Support
* Perfect management system
* Better Performance & More Durability & More Saftey
* Warranty: 500hours under normal working environment
* 7 x 24 Hour Service
