pvdf panel for capsule house pvdf /pe aluminum composite panel ym-mbr-10-co-pvdf film acid pump

pvdf panel for capsule house pvdf /pe aluminum composite panel ym-mbr-10-co-pvdf film acid pump

FOB Reference Price: Get Latest Price

≥5 Kilograms

US $14

≥10 Kilograms

US $13

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: 10mm

Thickness:: 10mm

Size:: 10*1000mm

Color:: Natural

Oxygen content index:: 46%

Density:: 1.77-1.8g/m3

Crystallinity:: 65%~78%

Melting point:: 172 ℃

Hot deformation temperature:: 112-145 ℃

Long-term use temperature:: 40-150 ℃

Advantage:: High temperature resistance

Sample:: Available

Quick Details

Processing Service:: Cutting

Place of Origin:: Jiangsu, China

Brand Name:: valtro

Model Number:: 10mm

Thickness:: 10mm

Size:: 10*1000mm

Color:: Natural

Oxygen content index:: 46%

Density:: 1.77-1.8g/m3

Crystallinity:: 65%~78%

Melting point:: 172 ℃

Hot deformation temperature:: 112-145 ℃

Long-term use temperature:: 40-150 ℃

Advantage:: High temperature resistance

Sample:: Available

Product Description

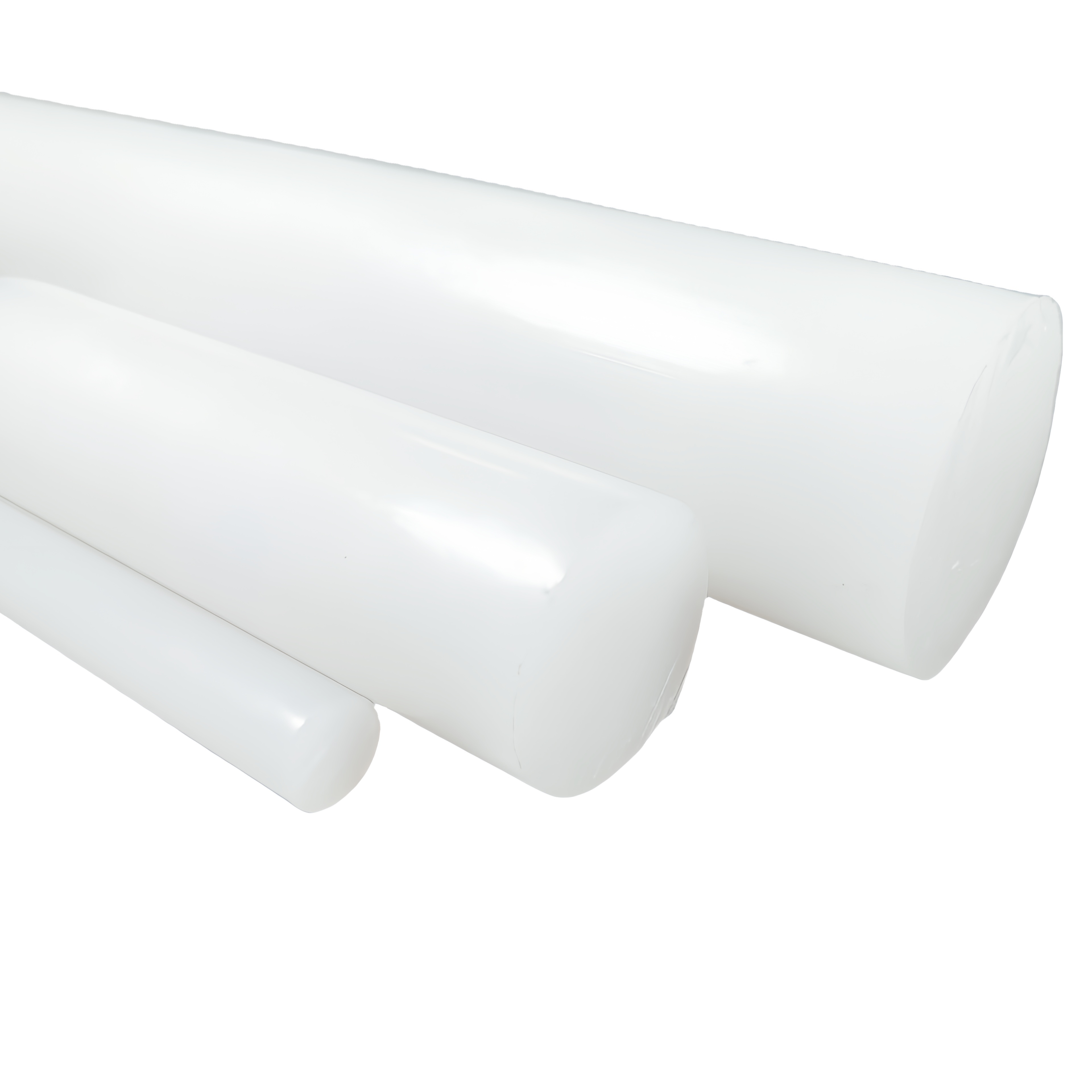

PVDF rod

PVDF Polyvinylidene fluoride rod, is a pure polymer extruded from PVDF resin at high temperature, it does not contain additives such as ultraviolet stabilizers, heat stabilizers, softeners, lubricants or flame retardants.

The oxygen content index is 46%, flame retardant, the crystallinity is 65%~78%, the density is 1.77~1.8g/cm3, the melting point is 172 °C, the heat deflection temperature is 112~145 °C, and the long-term use temperature is: 40~150 °C. Due to the chemically inert nature of PVDF, it hardly reacts with any medium.

Specification

Diameter(mm)	Length(mm)	Weight(kg)
5	1000	0.04
10	1000	0.14
15	1000	0.32
20	1000	0.57
25	1000	0.88
30	1000	1.27
35	1000	1.73
40	1000	2.26
45	1000	2.86
50	1000	3.53
55	1000	4.28
60	1000	5.09
65	1000	5.97
70	1000	6.93
75	1000	7.95
80	1000	9.05
85	1000	10.21
90	1000	11.45
95	1000	12.76
100	1000	14.14
110	1000	17.11
120	1000	20.36
130	1000	23.89
140	1000	27.71
150	1000	31.81
160	1000	36.19
180	1000	45.80
200	1000	56.55
220	1000	68.42
250	1000	88.36
300	1000	127.23

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Product Application

Application fields of PVDF rods:

Due to its excellent chemical resistance, processability, and resistance to fatigue and creep, PVDF is one of the materials used in pumps, valves, pipelines, pipeline fittings, storage tanks, and heat exchangers for the overall or lining of fluid treatment systems in petrochemical equipment.

Its good chemical stability and electrical insulation performance enable the produced equipment to meet TOCS and flame retardant requirements.

It is widely used in the storage and transportation of high-purity chemicals in the semiconductor industry, electronic industries such as semiconductors and liquid crystal related devices, chemical devices, food processing machines, etc.
