- Product Details
- {{item.text}}
Quick Details
-
Processor Core:
-
Quad Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HIGOLE
-
Model Number:
-
F6
-
Video Card:
-
Intel HD Graphics Gen8
-
Processor Brand:
-
intel
-
Display Type:
-
1280*800 IPS touch screen
-
Products name:
-
10.1 embedded industrial pc
-
Type:
-
ALL-IN-ONE
-
CPU:
-
Intel Cherry trail T3(Quad-core ) Z8350
-
Memory Capacity:
-
4GB
-
Keyword:
-
all in one industrial mini pc
-
Screen Size:
-
10.1 inch
-
Keywords:
-
mini pc, industrial pc
-
Application:
-
POS, industrial control
Quick Details
-
Use:
-
Industrial
-
Hard Drive Type:
-
EMMC
-
Video Memory Type:
-
With the main memory
-
Processor Core:
-
Quad Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HIGOLE
-
Model Number:
-
F6
-
Video Card:
-
Intel HD Graphics Gen8
-
Processor Brand:
-
intel
-
Display Type:
-
1280*800 IPS touch screen
-
Products name:
-
10.1 embedded industrial pc
-
Type:
-
ALL-IN-ONE
-
CPU:
-
Intel Cherry trail T3(Quad-core ) Z8350
-
Memory Capacity:
-
4GB
-
Keyword:
-
all in one industrial mini pc
-
Screen Size:
-
10.1 inch
-
Keywords:
-
mini pc, industrial pc
-
Application:
-
POS, industrial control
Product Description
|
System Physical Standard Configuration:
|
|
|
|
|
|
|
||||||
|
Type
|
|
Details
|
|
Descriptions
|
|
|
||||||
|
Product Form
|
|
Form Factor
|
|
10.1" All-in-one PC
|
|
|
||||||
|
|
|
Dimensions
|
|
244 x 184.2 x 65mm
|
|
|
||||||
|
|
|
Weight
|
|
0.9KG
|
|
|
||||||
|
LCD
|
|
Screen Size
|
|
10.1"
|
|
|
||||||
|
|
|
Screen Resolution
|
|
1280×800 (IPS + 250ANSI)
|
|
|
||||||
|
TP
|
|
Touch Module
|
|
G+G Multi-Touch
|
|
|
||||||
|
Battery
|
|
Type
|
|
/
|
|
|
||||||
|
System Hardware Configuration:
|
|
|
|
|
|
|
||||||
|
Type
|
|
Details
|
|
Descriptions
|
|
|
||||||
|
CPU
|
|
Type
|
|
Intel Atom x5-Z8350 Quad-Core
|
|
|
||||||
|
|
|
Speed
|
|
1.44GHz ~ 1.92GHz
|
|
|
||||||
|
GPU
|
|
Type
|
|
Intel HD Graphics Gen8
|
|
|
||||||
|
Memory
|
|
Capacity
|
|
4GB(Standard) / 2GB(Optional,Base on MOQ order)
|
|
|
||||||
|
Storage
|
|
eMMC
|
|
64GB(Standard) / 32GB(Optional,Base on MOQ order)
|
|
|
||||||
|
|
|
SSD
|
|
/
|
|
|
||||||
|
|
|
SATA 2.5“ HDD
|
|
/
|
|
|
||||||
|
Speaker
|
|
Built-in
|
|
8Ω/1W
|
|
|
||||||
|
Micphone
|
|
Built-in
|
|
/
|
|
|
||||||
|
G-sensor
|
|
Built-in
|
|
Yes
|
|
|
||||||
|
Network Connections:
|
|
|
|
|
|
|
||||||
|
Type
|
|
Details
|
|
Descriptions
|
|
|
||||||
|
WIFI
|
|
WIFI Module: Realtek 8723BS
|
|
WIFI 802.11b/g/n 2.4G
|
|
|
||||||
|
BT
|
|
BT Module: Realtek 8723BS
|
|
BT 4.0
|
|
|
||||||
|
Ethernet Network
|
|
RJ-45
|
|
100/1000Mbps Gigabit Lan
|
|
|
||||||
|
Interface Configuration:
|
|
|
|
|
|
|
||||||
|
Type
|
|
Details
|
|
Descriptions
|
|
|
||||||
|
USB Interface
|
|
USB3.0
|
|
×1pc
|
|
|
||||||
|
|
|
USB2.0
|
|
×3pc
|
|
|
||||||
|
SD / TF Card reader
|
|
TF Card reader
|
|
×1pc (up to 128GB)
|
|
|
||||||
|
Audio Jack
|
|
3.5mm headphone (Output only)
|
|
×1pc
|
|
|
||||||
|
HDMI
|
|
HDMI 1.4
|
|
×1pc
|
|
|
||||||
|
|
|
Video output through HDMI
|
|
Up to 4K
|
|
|
||||||
|
COM Port
|
|
DB9 (RS232)
|
|
×1pc (External small PCBA)
|
|
|
||||||
|
Button Switch:
|
|
|
|
|
|
|
||||||
|
Type
|
|
Details
|
|
Descriptions
|
|
|
||||||
|
Power
|
|
On/Off
|
|
×1pc
|
|
|
||||||
|
Volume
|
|
Down/UP
|
|
×1pc
|
|
|
||||||
|
CMOS Reset
|
|
Reset by Short Press
|
|
/
|
|
|
||||||
|
Main Accessories:
|
|
|
|
|
|
|
||||||
|
Type
|
|
Details
|
|
Descriptions
|
|
|
||||||
|
Power adapter
|
|
DC 5V/3A
|
|
×1pc
|
|
|
||||||
|
User's Manual
|
|
User's Manual
|
|
×1pc
|
|
|
||||||
|
Software Configuration:
|
|
|
|
|
|
|
||||||
|
Type
|
|
Details
|
|
Descriptions
|
|
|
||||||
|
Power on Function
|
|
By Power Button or Auto Power on
|
|
Optional
|
|
|
||||||
|
Wake up on Lan
|
|
Wake up on Lan by RJ45
|
|
/
|
|
|
||||||
|
PXE
|
|
Preboot Execution Environment
|
|
/
|
|
|
||||||
|
Operating System
|
|
Windows 10
|
|
Optional
|
|
|
||||||
|
|
|
Linux
|
|
Test by end user
|
|
|
||||||
|
Environment:
|
|
|
|
|
|
|
||||||
|
Temperature
|
|
Operation Temperature
|
|
-10oC ~ 50oC (1080p or 4K local video display)
|
|
|
||||||
|
|
|
Storage Temperature
|
|
-20oC ~ 70oC (Restore to Operation Temperature 2hr before use)
|
|
|
||||||
|
Humidity
|
|
Oprating Humidity
|
|
35% ~ 80% relative humidity, Non-condensing
|
|
|
||||||
|
|
|
Storage Humidity
|
|
20% ~ 93% relative humidity, Non-condensing
|
|
|
||||||
|
Certification:
|
|
|
|
|
|
|
||||||
|
CE
|
|
CE
|
|
Yes
|
|
|
||||||
|
Other
|
|
Other
|
|
Optional
|
|
|
||||||

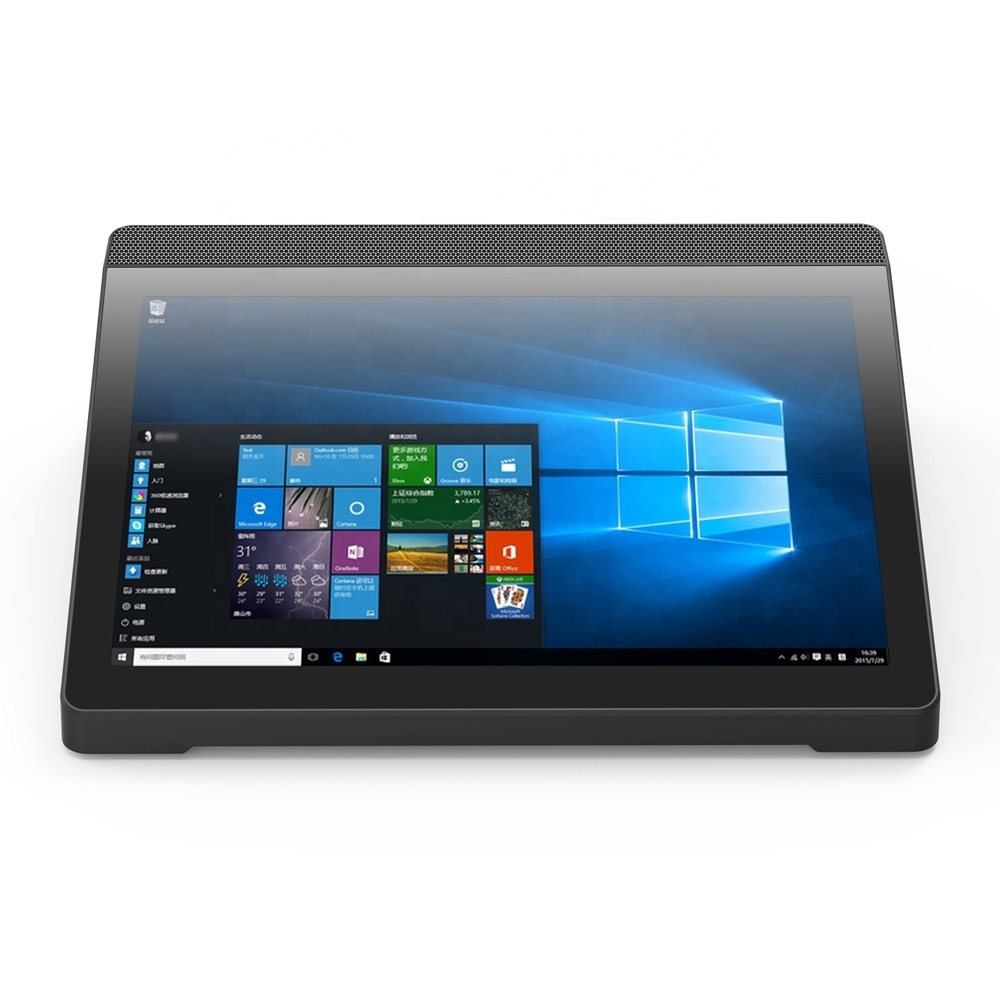

10.1 inch all in one touch pc.
1. Mini size 10.1inch, 0.9kg net weight, portable, 4GB+64GB storage
2. Low power, 5V, Power consumption: 360watt/day, 10800watt/month
3. 10.1 inch IPS G+G capacitive multi touch screen
4. Multi interface HDMI, RJ45, RS232, USB 3.0, USB2.0, Audio Jack Headphone, to meet multi needs
5. Fanless design, to prevent the dust going into the machine
6. Wide usage, POS, education, 3D printing, video meeting, industrial control, etc
Application
The product can support WIFI 2.4G, Bluetooth4.0, HDMI1.4, TF cardreader etc. With USB3.0, USB2.0, COM ports, RJ-45 Gigabit Lan, and 5V DC power, it can be widely used in POS, printing server, video meeting, catering, education, smart home and industry manufacturing, etc. It is very smart, portable and power saving, and can replace desktop pc in most cases.
