Quick Details
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
CE,TUV,RoHS,ISO9001
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JOYVOIT
-
Model Number:
-
NSS2.5G
-
Load Power (W):
-
2200W
-
Output Voltage (V):
-
DC24V/12V&USB5V
-
Output Frequency:
-
50HZ/60HZ
-
Work Time (h):
-
8 hours
-
Item:
-
Portable solar system 2.5KW
-
Battery:
-
12V 120Ahx2 , GEL battery
-
Solar panel:
-
400W, 2 unit Mono
-
Controller:
-
MPPT solar controller
-
Work Temperature Range:
-
- 20℃ ~ 55℃
-
Enclosure:
-
IP20
-
Lights cables:
-
8meter, 5 pieces
-
Dimension (mm):
-
435X504X574.5mm(Include Feet And Handles)
-
Function:
-
Home, family lighting, phone charging & Radio.
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Monocrystalline Silicon
-
Battery Type:
-
Lithium Ion
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
CE,TUV,RoHS,ISO9001
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JOYVOIT
-
Model Number:
-
NSS2.5G
-
Load Power (W):
-
2200W
-
Output Voltage (V):
-
DC24V/12V&USB5V
-
Output Frequency:
-
50HZ/60HZ
-
Work Time (h):
-
8 hours
-
Item:
-
Portable solar system 2.5KW
-
Battery:
-
12V 120Ahx2 , GEL battery
-
Solar panel:
-
400W, 2 unit Mono
-
Controller:
-
MPPT solar controller
-
Work Temperature Range:
-
- 20℃ ~ 55℃
-
Enclosure:
-
IP20
-
Lights cables:
-
8meter, 5 pieces
-
Dimension (mm):
-
435X504X574.5mm(Include Feet And Handles)
-
Function:
-
Home, family lighting, phone charging & Radio.

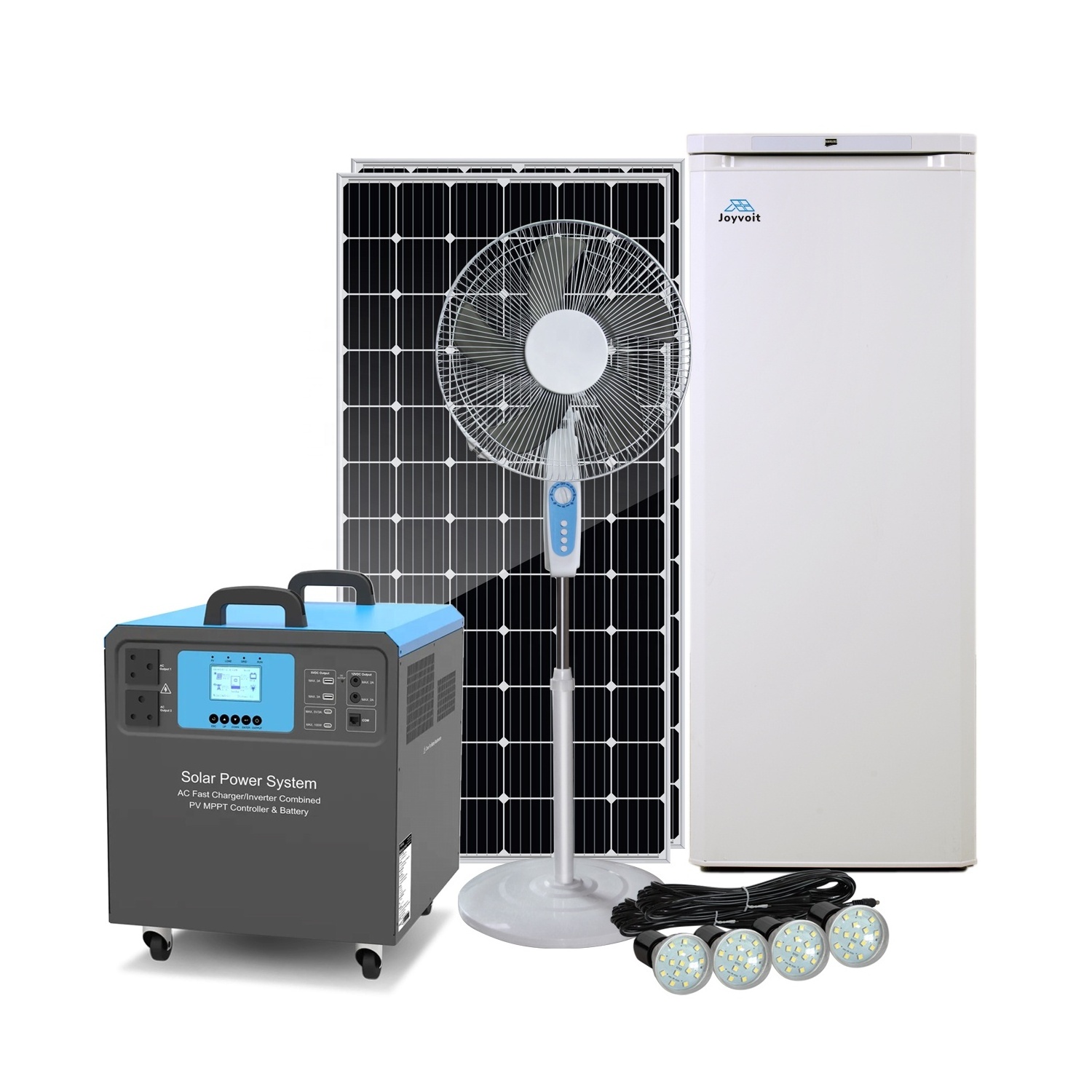

Whole House 2500W Portable Solar Power Station with Photovoltaic Panel Energy System Solar Generator Kits 1.5/1
K
W for home
Specification
|
Model no
|
NSS2.5G
|
NSS1.5G
|
|
1. solar panel
|
Mono-crystalline, 400W, 2 unit
|
Mono-crystalline, 300W, 2 unit
|
|
2. Solar battery
|
Gel, 12V120AH, 2 units
|
Gel, 12V70AH, 2 units
|
|
3. Inverter
|
2500W,220V or 110V
|
1500W,220V or 110V
|
|
|
Pure, low frequency
|
Pure, low frequency
|
|
4. DC12V light
|
5W 600lm, 4 units
|
5W 600lm, 4 units
|
|
|
3W 420lm, 1 unit
|
3W 420lm, 1 unit
|
|
5. lights cables
|
8meter, 5 pieces
|
8meter, 5 pieces
|
|
6. Cable for PV
|
10meter, 1 piece
|
10meter, 1 piece
|
|
7. Solar Power box
|
MPPT solar controller built-in
|
MPPT solar controller built-in
|
|
|
2*USB port
|
2*USB port
|
|
|
6*12V outputs for lights
|
6*12V outputs for lights
|
|
|
|
|
Technical Data
|
Model
|
NSS2.5G
|
|
|
Utility Input
|
|
|
|
Rated Utility Work Voltage
|
220V
|
|
|
Utility Work Voltage Range
|
176V-285Vac
|
|
|
Utility Input Frequency Range
|
45Hz-65Hz
|
|
|
Max.Utility Input Current
(Charging + Bypass)
|
Current for charging 3.5A+bypass load current 11.4A@220Vac
|
|
|
Utility Transfer Time
|
Utility Transfer Time(Bypass to Inverter):<10ms
|
|
|
(Bypass To Inverter)
|
Utility Transfer Time(Inverter to Bypass):0ms
|
|
|
AC Input Overload Relay
|
YES
|
|
|
Inverter Output
|
|
|
|
Continuous Output Power(@25C)
|
2500W
|
|
|
Surge Output Power(5s)
|
4000W
|
|
|
Rated Output Voltage
|
220V±3%
|
|
|
Rated Output Frequency
|
Default 50Hz/60Hz settable,error +0.2%
|
|
|
Output Wave
|
Pure Sine Wave
|
|
|
Output Distortion THD
|
THD<3%(Resistive Load)
|
|
|
Output Soft Start
|
YES
|
|
|
Solar Controller
|
|
|
|
Max.PV Input Withstand Voltage
|
145V
|
|
|
Solar Controller Type
|
MPPT
|
|
|
MPPT Efficiency
|
>99.5%
|
|
|
MPPT Voltage Range
|
30V~120V
|
|
|
MPPT Ways
|
One way
|
|
|
Max.PV Output Charging Current
|
30A
|
|
|
Battery
|
|
|
|
Battery Type
|
GEL
|
|
|
Rated Battery Voltage
|
24VDC
|
|
|
Battery Work Voltage Range
|
21VDC-32VDC
|
|
|
Battery Work Temperature Range
|
Discharging Mode:-20C~55℃ Charging Mode:0C~40℃
|
|
|
Rated Battery Capacity
|
12V 120Ah*2
|
|
|
DC Output
|
|
|
|
DC 12V Port
|
12V2A*2pcs
|
|
|
USB Port
|
5V3A*2pcs
|
|
|
TYPE C Port
|
Type C-100W *1pcs(support PD3.0 and multiple protocols),
Type C-5V/3A x1pcs
|
|
|
DC Output Switch
|
YES
|
|
|
* Note 1:In any case,if PV input voltage exceeds 95V,the equipment
|
|
|
Main Features
:
1. Solar panels, poly or mono, up to 670w max.
2. LCD display, can display both charging and discharging data.
3. MPPT Controller, high efficiency, no less than 99.5%.
4. Pure sine wave inverter, with SPWM technology, can be charged by both solar and solar.
5. Gel battery built-in, deep cycle, long lifetime.
6. DC 12V2A, USB5V3A, type C(3A and 100W), AC220V or 110v outlets.
7. Protection against lightning, over charging, discharging, short circuit, etc.
8. Optional: 4G, Wifi module to remote control the inverter/charger.
2. LCD display, can display both charging and discharging data.
3. MPPT Controller, high efficiency, no less than 99.5%.
4. Pure sine wave inverter, with SPWM technology, can be charged by both solar and solar.
5. Gel battery built-in, deep cycle, long lifetime.
6. DC 12V2A, USB5V3A, type C(3A and 100W), AC220V or 110v outlets.
7. Protection against lightning, over charging, discharging, short circuit, etc.
8. Optional: 4G, Wifi module to remote control the inverter/charger.
