Approval Standard
1.The liferafts consist of type A throw-overboard inflatable life raft intended for 6 persons,10 persons, 15 persons, 20 persons, 25 persons respectively,
2.Technical regulations for the statutory surveys of fishing vessel 2000
3.It can be used in the fishing vessels
- Product Details
- {{item.text}}
Quick Details
-
Certificate:
-
CCS
-
Material:
-
Water-proof Cloth
-
Application:
-
Marine Life Saving
-
Capacity:
-
6~25persons
-
Standard:
-
SOLAS Standard
-
Type:
-
Throw Overboard Inflatable Life Raft
-
Color:
-
Orange
-
Use:
-
Vessels Sailing
-
Product Name:
-
Life raft
-
Approval:
-
CCS Solas Approved Inflatable Life Rafts
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
OEM
-
Model Number:
-
KHA-6
-
Certificate:
-
CCS
-
Material:
-
Water-proof Cloth
-
Application:
-
Marine Life Saving
-
Capacity:
-
6~25persons
-
Standard:
-
SOLAS Standard
-
Type:
-
Throw Overboard Inflatable Life Raft
-
Color:
-
Orange
-
Use:
-
Vessels Sailing
-
Product Name:
-
Life raft
-
Approval:
-
CCS Solas Approved Inflatable Life Rafts
Product Description
6 person 16 person 20 person Marine Solas approved ship self saving rigid type liferafts inflatable viking life raft
Specification
inflatable 20 persons Life Raft
1. Capacity: 6 10 15 20 25
2. Solas approved
3. CCS and EC approvd life raft
4. Throw over

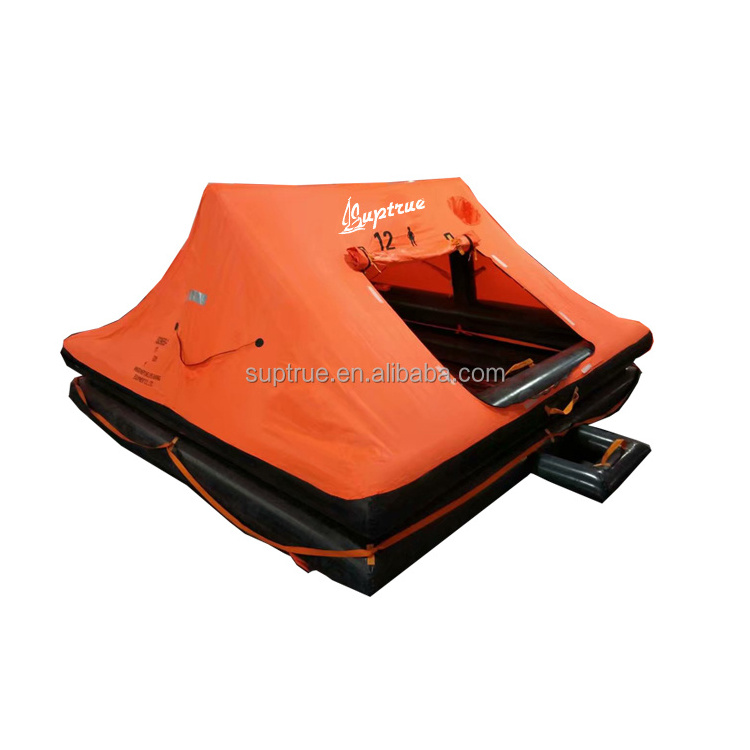

Marine throwing type solas approved 20 persons life raft
After throw-over from ship, the life-raft can be inflated and opened automatically. If the ship sinks very fast and the life-raft can not be thrown-over, the raft still can float up from water under the action of Hydrostatic Release Unit can be inflated and opened automatically.
Inflatable Life Raft
1.Have capacity to accommodate 6, 10, 15, 20, 25 persons
2.Have a canopy to protect occupants from exposure
3.Floor shall be water tight and insulated from protection against cold water
4.Consist of two separate buoyancy tubes.
Lifesaving life rafts
|
Type
|
|
KHA-6
|
KHA-10
|
KHA-15
|
KHA-20
|
KHA-25
|
|||||
|
Capacity
|
|
6
|
10
|
15
|
20
|
25
|
|||||
|
Length ,mm, ±1000
|
|
2170
|
2730
|
3300
|
4390
|
4770
|
|||||
|
Width, mm, ±1000
|
|
2170
|
2730
|
3300
|
3040
|
3370
|
|||||
|
Height , mm, ±50
|
|
1250
|
1400
|
1500
|
1500
|
1500
|
|||||
|
WP pressure,kPa
|
|
13.3
|
|
|
|
|
|||||
|
Specification of cylinder
|
|
3×2
|
3×2
|
5×2
|
6×2
|
7×2
|
|||||
|
Gas volume, g
|
CO2, ±050
|
1200
|
1700
|
2700
|
3500
|
4200
|
|||||
|
|
N2, ±020
|
100
|
160
|
180
|
240
|
280
|
|||||
|
Container
|
Dia. (mm)
|
545
|
615
|
675
|
700
|
730
|
|||||
|
Length(mm)
|
|
1045
|
1090
|
1135
|
1285
|
1440
|
|||||
|
Total weight, kg ≤
|
|
78
|
107
|
137
|
170
|
185
|
|||||
The details of marine life rafts
