- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
G5
-
Model Number:
-
E-012-OPS-S-E1-E2-N
-
Warranty:
-
12 Months
-
Product name:
-

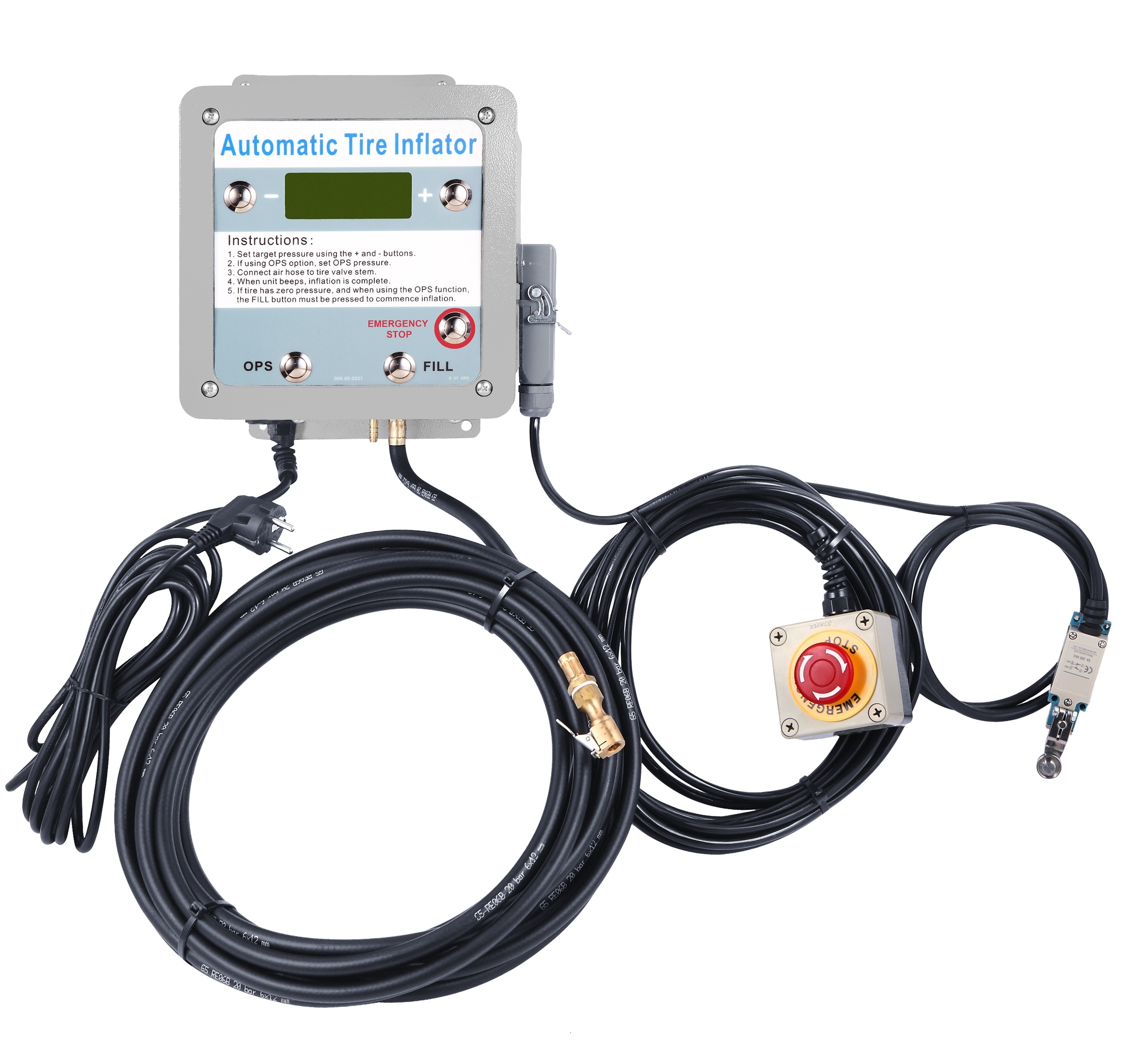

Wall-Mounted Automatic Digital Tyre Inflator for Safety Inflation Cage
-
Product Model:
-
E-012-OPS-S-E1-E2-N
-
Application:
-
Car Motorcycle Scooter Bicycle Bike Tire
-
Packing:
-
Carton
-
Material:
-
Plastic+Metal
-
Certification:
-
CE
-
Air pressure:
-
0-150PSI
-
MOQ:
-
1PCS
-
Keyword:
-
Automatic Digital Tire Inflator
Quick Details
-
Car Fitment:
-
bmw
-
Size:
-
25*23*12cm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
G5
-
Model Number:
-
E-012-OPS-S-E1-E2-N
-
Warranty:
-
12 Months
-
Product name:
-
Wall-Mounted Automatic Digital Tyre Inflator for Safety Inflation Cage
-
Product Model:
-
E-012-OPS-S-E1-E2-N
-
Application:
-
Car Motorcycle Scooter Bicycle Bike Tire
-
Packing:
-
Carton
-
Material:
-
Plastic+Metal
-
Certification:
-
CE
-
Air pressure:
-
0-150PSI
-
MOQ:
-
1PCS
-
Keyword:
-
Automatic Digital Tire Inflator
Product Description
Specification
| E-012-OPS-S-E1-E2-N Wall-Mounted Automatic Digital Tyre Inflator for Safety Inflation Cage(Indoor) | |
| Main Feature | |
| 1. 174PSI/12bar/1200kPa output pressure make the unit a fit for almost any size automotive service facility ** | |
| 2. Rugged and durable diecast aluminium enclosure for inflator head | |
| 3. With safety switch: Open the cage door, tire inflation is paused | |
| 4.With 2 emergency stop switches (Panel & Extension Cable): Press the switch, tire inflation is stopped and tire pressure is discharged. | |
| 5. Suit for: Car, Light Truck, Bus * | |
| Technical Data | |
| Dimensions (Height*Width*Depth) | 290mm*230mm*120mm 11.4"*9.1"*4.7" |
| Net Weight | 4kg/8.8lbs |
| Gross Weight | 7kg/15.4lbs |
| Packing Size (Height*Width*Depth) | 170mm*500mm*290mm 6.7"*19.7"*11.4" |
| Power Requirement | 100-240Vac 50/60Hz |
| Power Consumption | 23VA |
| Operating Temperature Range | -20°C/-4°F to 70°C/158°F |
| Max Inlet Air/Nitrogen Supply | 217PSI /15bar /1500kPa |
| Operating Range | 5-174PSI/0.3-12bar/35-1200kPa |
| Over Pressure Setting Range | 0-29PSI/0-2.0bar/0-200kPa |
| Accuracy | ±1PSI/0.07bar/7kPa |
| Resolution | 1PSI/0.1bar/5kPa |
| Units of Measurement | PSI/bar/kPa |
| Specification | |
|
1. Adjustable over pressure setting (OPS) 2. Auto-start inflation 3. Automatic zero drift adjustment 4. Remain at last setting 5. Comprehensive diagnostics and error reporting 6. Audible and visual end of the cycle signal indicators 7. Large backlight LCD display 8. Vandal resistant mechanical switches 9. 1 Nos.*10M/32.8ft standard hose with single clip-on open type chuck |
|
