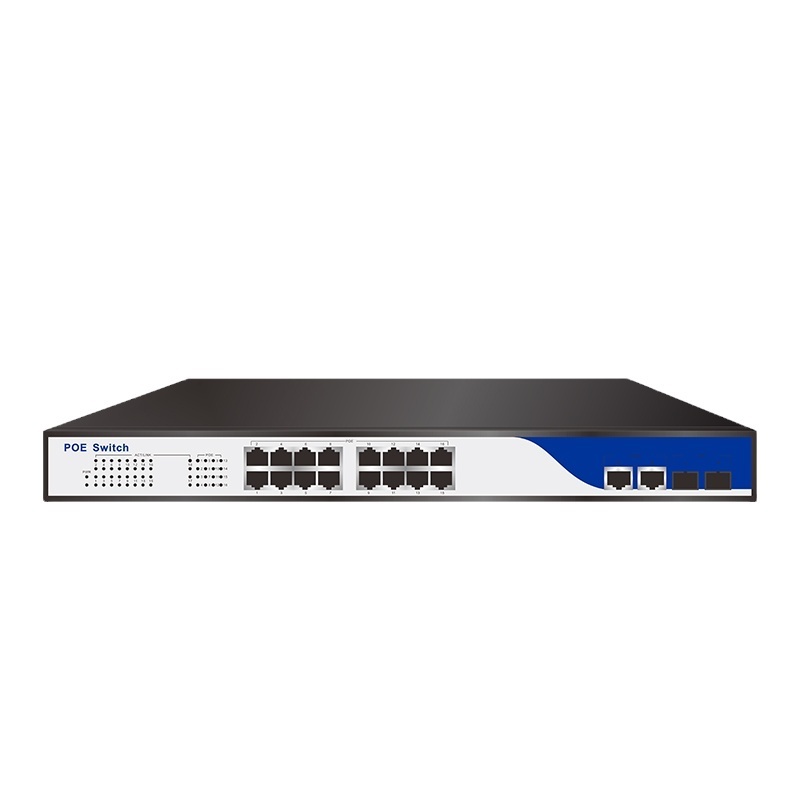

2 port 1000mbps uplink and 16 port fast ethernet poe switch for cctv system ip cameras

2 port 1000mbps uplink and 16 port fast ethernet poe switch for cctv system ip cameras

FOB Reference Price: Get Latest Price

≥1 Pieces

US $70

≥50 Pieces

US $68

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: xtdp-link

Model Number:: PL-PSE1218-A1

Place of Origin:: Guangdong, China

Rack mount:: Yes

Size:: 440x 350x 45mm

Standards:: IEEE802.3af/at

Type:: 16+2 gigabit/sfp poe switch

LED indicators:: Power, Link/Act,POE

Transfer Method:: Store-and-Forward

Web smart:: Support management vlan

Total power:: 250W

IP address:: 192.168.2.1

Warranty:: 1 year

Quick Details

Transmission Rate:: 10/100/1000Mbps

Communication Mode:: Full-Duplex & Half-Duplex

Switch Capacity:: 7.2G

Brand Name:: xtdp-link

Model Number:: PL-PSE1218-A1

Place of Origin:: Guangdong, China

Rack mount:: Yes

Size:: 440x 350x 45mm

Standards:: IEEE802.3af/at

Type:: 16+2 gigabit/sfp poe switch

LED indicators:: Power, Link/Act,POE

Transfer Method:: Store-and-Forward

Web smart:: Support management vlan

Total power:: 250W

IP address:: 192.168.2.1

Warranty:: 1 year

2 1000mbps uplink 16 port fast ethernet poe switch for cctv system ip camera

The faceplates can be customized with your logo and favorite color

Definition

PL- PSE 1218 -A1 16 Port fast ethernet poe switch

Description

PL- PSE1218-A 1 Managed PoE Switch complies with IEEE 802.3af/at standard, provides 16 10/100Mbps RJ45 ports with auto-MDI/MDIX. provides remote management (RSSM) functions including VLAN, Port Bandwidth Control and Port Mirror, Trunk, Priority, MIB Information, Telnet etc.

1. 16 10/100M RJ45 port, all with PoE function

2. Support port statistic function

3. Supports Port-Based VLAN and IEEE 802.1Q Tag VLAN

4. Supports Static MAC address & filtering MAC address management

5. Support MAC address learning, allow configuring MAC address aging time.

6. 8K MAC Address table

7. Support LACP link aggregation

8. Support ping (packet internet groper)

9. Supports WEB network management

Standard		IEEE802.3, IEEE802.3u IEEE802.1P, IEEE802.1Q, IEEE802.1x IEEE802.3af/at POE
Interface	16* 10/100M RJ45 ports, 2 10/100/1000mbps RJ45/SFP uplink
Transmission Method	Store-and-forward
MAC Address	8K, Auto-learning and aging
Flow Control	Back pressure for half duplex, IEEE802.3x for full duplex
PoE Specification	48V DC, Max. 15.4Watt per port PIN definition : 4/5(+), 7/8(-)
Management	web smart In-band : SNMP/Telnet/Http/Https Support Administrator IP/Subnet limit is Radius Authentication for Management Access(Telnet/Http)
DHCP	DHCP Client / Relay / Option 82 functions
SNMP agent	VLAN MIB (802.1Q), Private MIB
VLAN	IEEE802.1Q VLAN Port-based VLAN & Private VLAN
Trunking	Support up to 8 trunks using either static or dynamic trunking (LACP)
QoS	Four priority queues per port for Port-based & 802.1p tagged-based QoS Strict Priority/WRR scheduling
Port Mirror	Support Port Mirror
Network Security	IP-MAC-Port Binding Static MAC Address Binding Dynamic MAC Address Number Limit DHCP Option 82 Functions, DHCP Snooping Access Control List (ACL) Administrator IP/Subnet Limit
IEEE 802.1x	Support Transparent and Authentication modes Support Dynamic VLAN & Guest VLAN
Storm Control	broadcast/flooding/multicast traffic control
IP Multi-cast	IGMP Snooping (256 Groups Max.) / query and MVR function
LED Indicators	Power, Link/Act , MIL
Power Consumption	Max.250 Watt
Power Supply	100~240V AC, ~50/60 Hz
Environment	Operating Temperature: -20°C ~70°C Operating Humidity: 10% to 90% RH Non-Condensing
