Pressure distribution detection sensor array vola/planta pedis cushion system for Flexiforce fsr Pressure Sensor

Pressure distribution detection sensor array vola/planta pedis cushion system for Flexiforce fsr Pressure Sensor

FOB Reference Price: Get Latest Price

≥1 Pieces

US $188

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Use:: Flexiforce fsr Pressure Sensor

Place of Origin:: Guangdong, China

custom:: Flexiforce fsr Pressure Sensor

*** Welcome to MoreSuns ***

We offer all kinds of Electronic Components (Modules,Cables ,Sensors,NTC, Aluminum heatsink/waterblock/copper tube/ Thermoelectric Cooler ,Switches, Crystal Oscillator and Connectors etc.) with a wide range, good quality, reasonable prices and stylish designs according to your need

More quantity, please contact for best discount and postage

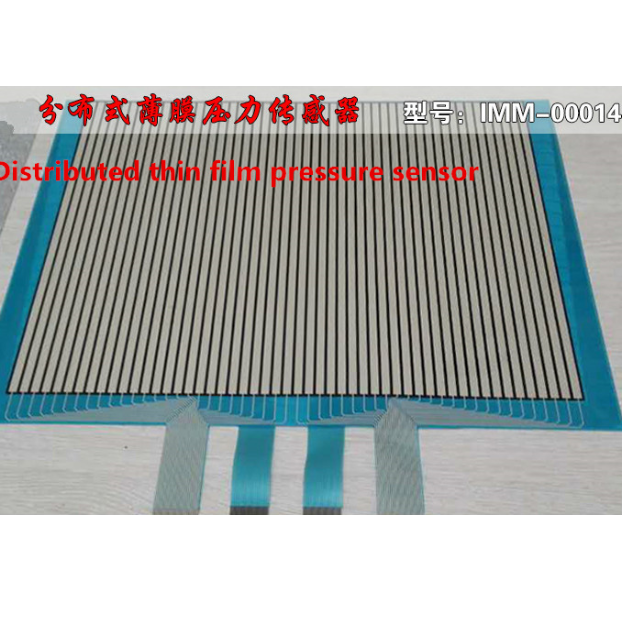

Pressure distribution detection sensor array vola/planta pedis cushion system for Flexiforce fsr

(Support bulk orders and Custom service orders )

IMM-00014

Induction zone
A Induction point number :2288 (44 row* 52 line) pcs

B The ranks of the number: 44 row (width)* 52 line (length)

C Single point of inductive zone size:5MM*5MM

D Row spacing column spacing between electrode size:2mm

Outer packaging

A packaging size:40.5cm(width)*40.5cm(length),include the upper side,Wire width and lead wire length
B Induction zone size:30.5cm(width) *36.4cm(length)
C Signal Line number" 96pcs
D Signal lines lead to encapsulate length:7cm

The thickness of the sensor : smaller than 0.25mm

Signal Line interface
A FPC interface size:line width is 0.6mm, line spacing is 0.4mm
B FPC Strengthen plate thickness:0.3mm Strengthen plate.. lenght is 4CM
C FPC interface Interface for configuration:outside is total 52pcs, 2 group
(single group FPC is 26pcs) ,Bare by coarse face downward
middle is 44pcs (single group FPC is 22pcs) Bare by coarse face upward
