Quick Details
-
Model Number:
-
TT-X3MIKIR
-
Product Name:
-

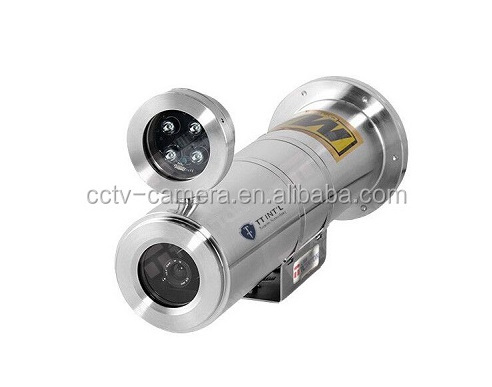

IK10 Anti-Explosion IP Camera
-
Resolution:
-
H.265 3.0MP
-
Lens:
-
2.8-12mm HD Motorized Zoom Lens (4X Optical)
-
LEDs:
-
4pcs Array LEDs
-
P2P:
-
Plug and play
-
Onvif:
-
Support Onvif
-
Function:
-
Support Mobile Remote Viewing
-
Software:
-
Mobile App, IE, CMS
-
Housing:
-
IK10 Anti-Explosion Housing
-
OEM and ODM:
-
Support
-
Certification:
-
CE , RoHS , FCC , ISO9001
Quick Details
-
Special Features:
-
NIGHT VISION, Waterproof / Weatherproof, IK10
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TT
-
Model Number:
-
TT-X3MIKIR
-
Product Name:
-
IK10 Anti-Explosion IP Camera
-
Resolution:
-
H.265 3.0MP
-
Lens:
-
2.8-12mm HD Motorized Zoom Lens (4X Optical)
-
LEDs:
-
4pcs Array LEDs
-
P2P:
-
Plug and play
-
Onvif:
-
Support Onvif
-
Function:
-
Support Mobile Remote Viewing
-
Software:
-
Mobile App, IE, CMS
-
Housing:
-
IK10 Anti-Explosion Housing
-
OEM and ODM:
-
Support
-
Certification:
-
CE , RoHS , FCC , ISO9001
Product Description
|
Product Name
|
H.265 3.0mp WDR Star-light IK10 IP Camera
|
|
Model
|
TT-X3MIKIR
|
|
Highlights
|
Anti-High Temperature Air-Cooled Explosion-Proof Camera Anti-Corrison IK10 PoE IP Camera
|
Major Features:
Anti-Explosion & High Temperature Protection IP Camera
H.265 HDR/WDR Star-light
1/2.7” 3 Megapixel STARVIS™ CMOS Sensor
2.8-12mm Motorized Zoom Lens (4X Optical)
4pcs Array LEDs
Built-in IR Cutter Filter
Built-in TF Card Slot
Built-in PoE (IEEE 802.3af Class3)
with Two-way Audio, Alarm in, Restore Functions
Support P2P, CMS, VPN and Hikvision Private Protocol and CMS
App for IOS & Android
Application: Applicable to mine, petrol stations, refineries, chemical plants, flour processing plants, barracks, underground
pipes, arsenals and other anti-corrosion explosion or high temperature places
H.265 HDR/WDR Star-light
1/2.7” 3 Megapixel STARVIS™ CMOS Sensor
2.8-12mm Motorized Zoom Lens (4X Optical)
4pcs Array LEDs
Built-in IR Cutter Filter
Built-in TF Card Slot
Built-in PoE (IEEE 802.3af Class3)
with Two-way Audio, Alarm in, Restore Functions
Support P2P, CMS, VPN and Hikvision Private Protocol and CMS
App for IOS & Android
Application: Applicable to mine, petrol stations, refineries, chemical plants, flour processing plants, barracks, underground
pipes, arsenals and other anti-corrosion explosion or high temperature places
Product Specifications
|
Model
|
TT-X3MIKIR
|
|
|
Image Sensor
|
1/2.7” 3 Megapixel STARVIS™ CMOS Sensor
|
|
|
Min. Illumination
|
0.001Lux/F1.4 / 0Lux/F1.4 (IR on)
|
|
|
Shutter time
|
1/25 s ~ 1/8,000s
|
|
|
Lens
|
2.8-12mm Motorized Lens (4X Optical)
|
|
|
Day& Night
|
Auto Switch IR Cutter Filter
|
|
|
Wide Dynamic
|
140 dB
|
|
|
DNR
|
3D DNR
|
|
|
Compression Standard
|
|
|
|
Compression
|
H.265 / H.264 / MPEG
|
|
|
H.265/H.264 Code
|
Main Profile
|
|
|
Video Bit Rate
|
32Kbps~16Mbps
|
|
|
|
|
|
|
Resolution
|
2048*1536
|
|
|
Frame Rate
|
2048*1536(25/30fps)
|
|
|
WDR
|
HDR
|
|
|
Image Enhancement
|
AGC, 3D DNR, WDR, Sharpness
|
|
|
Image Settings
|
Motion Detection, Privacy Mask, Video Tampering
|
|
|
Day/Night Switch
|
Auto/Outside Trigger/Color/Black White
|
|
|
Network
|
|
|
|
Network Storage
|
NVR & CMS
|
|
|
Protocols
|
TCP/IP, UDP, ICMP, HTTP, HTTPS, VPN, FTP, DHCP, DNS, DDNS, RTP, RTSP, Hikvision Private Protocol
|
|
|
General Function
|
Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask
|
|
|
System Compatibility
|
ONVIF2.4, PSIA, CGI, SPR
|
|
|
Browser
|
IE
|
|
|
Interface
|
|
|
|
Interface
|
1* RJ-45 10M/100M Ethernet Port
|
|
|
Audio Input
|
AV Port
|
|
|
Audio Output
|
AV Port
|
|
|
Reset button
|
1* Reset button
|
|
|
Alarm
|
1* Alarm Input; 1*Alarm Output (optional)
|
|
|
Micro SD Slot
|
Micro SD/TF Card Slot, Support Max. 128G (Optional)
|
|
|
LEDs
|
4pcs Array LEDs
|
|
|
General
|
|
|
|
Operating Temp.
|
-30 °C ~ 80 °C
|
|
|
Operating Humidity
|
Humidity 95% or less (non-condensing)
|
|
|
Power Supply
|
12 VDC ± 25%
|
|
|
PoE
|
PoE (IEEE 802.3af Class3)
|
|
|
Power Consumption
|
Max. 11.5W
|
|
|
IP Grade
|
IP69
|
|
|
IK Grade
|
IK10
|
|
|
Explosion Grade
|
ExdIT6
|
|
|
IR Range
|
80 Meters
|
|
|
Dimensions (mm)
|
380mm * 270mm * 140mm
|
|
|
Net Weight (kg)
|
8.5kg
|
|
Company Introduction
TT INT'L / HTW has performed a remarkable achievement in Security Field since its established in 2004, based in Shenzhen China over the decades, we experienced from the traditional CCD CVBS/SDI Analogue Camera period went through to the HD CMOS Camera period, and till current popular 4K IP Camera and Face Camera System, HD Cloud Home Wi-Fi Camera and HD USB Webcam.
Our Services & Strength
With 15 years of manufacturing and exporting experiences in surveillance monitoring, TT/HTW has been focusing on its quality and services with best competitive prices ever since, with highly experienced R&D team, advanced SMT machines and professional management teams, combined together to guarantee the quality control system in order to deliver the only qualified products to our customers.
