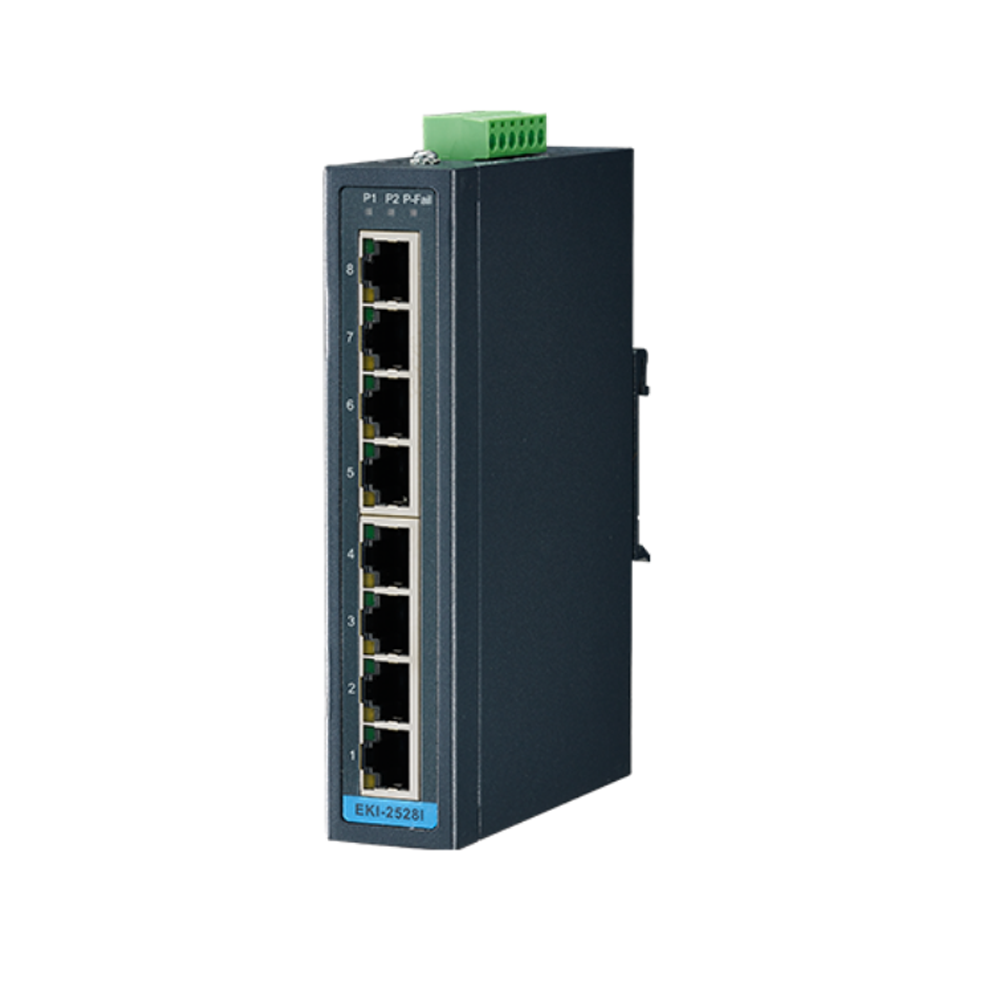

Advantech EKI-2528I 10/100 Mbps Fast Ethernet 8 Port PoE DIN rail Unmanaged Industrial Ethernet Network Switch

Advantech EKI-2528I 10/100 Mbps Fast Ethernet 8 Port PoE DIN rail Unmanaged Industrial Ethernet Network Switch

FOB Reference Price: Get Latest Price

≥2 Pieces

US $95

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Advantech

Model Number:: EKI-2528I-BE

Place of Origin:: Beijing, China

EMI:: CE, FCC Class A

RJ-45 Transmission Speed:: 10/100 Mbps

RJ-45 Port Number:: 8

RJ-45 Port Connector Type:: RJ-45

IP Rating:: IP30

Mounting:: DIN, Wall

Power Consumption:: 4.71W

Power:: 12-48 VDC

Technology:: Ethernet

Warranty Period:: 5 years

Quick Details

Transmission Rate:: 10/100Mbps

Communication Mode:: Full-Duplex & Half-Duplex

Switch Capacity:: 1.6Gbps

Brand Name:: Advantech

Model Number:: EKI-2528I-BE

Place of Origin:: Beijing, China

EMI:: CE, FCC Class A

RJ-45 Transmission Speed:: 10/100 Mbps

RJ-45 Port Number:: 8

RJ-45 Port Connector Type:: RJ-45

IP Rating:: IP30

Mounting:: DIN, Wall

Power Consumption:: 4.71W

Power:: 12-48 VDC

Technology:: Ethernet

Warranty Period:: 5 years

Products Description

Advantech EKI-2528I 10/100 Mbps Fast Ethernet 8 Port PoE DIN rail Unmanaged Industrial Ethernet Network Switch

Features

* Provides 5/8 Fast Ethernet ports with Auto MDI/MDI-X

* Supports 10/100 Mbps Auto-Negotiation

* Provides compact size with DIN-rail/Wall mount, and IP30 metal mechanism

* Supports redundant 12 ~ 48 VDC power input and P-Fail relay

* Supports wide operating temperatures from -40 to 75 °C

Introduction

The EKI-2525/2528 is a Fast Ethernet solution. Power is a +12 ~ 48 VDC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protection and Overload Current Resetable Fuse. The former tolerates reverse power switching while the later secures the system from overload currents. As the power supply turns normal, EKI-2525/2528 will automatically get back to work. Each EKI-2525/2528 port has 2 LED’s to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, which makes troubleshooting quick and easy. EKI-2525/2528 comes with a compact metal IP30 rated housing to protect against dusty industrial environments.

Specification

* Part Number	* EKI-2528I-BE
* EMI	* CE, FCC Class A
* EMS	* EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
* Safety	* UL 60950-1
* RJ-45 Port Number	* 8
* RJ-45 Port Connector Type	* RJ-45
* RJ-45 Transmission Distance	* 100 m
* RJ-45 Transmission Speed	* 10/100 Mbps
* Temperature (Operating Range)	* -10 ~ 60°C (14 ~ 140°F)
* Temperature (Storage Range)	* -40 ~ 85°C (-40 ~ 185°F)
* Dimensions (W x H x D)	* 30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.)
* IP Rating	* IP30
* Power Consumption	* 4.71W
* Power Input (DC)	* 12 ~ 48 VDC
* Mounting	* DIN, Panel
* Warranty Period	* 5 years
