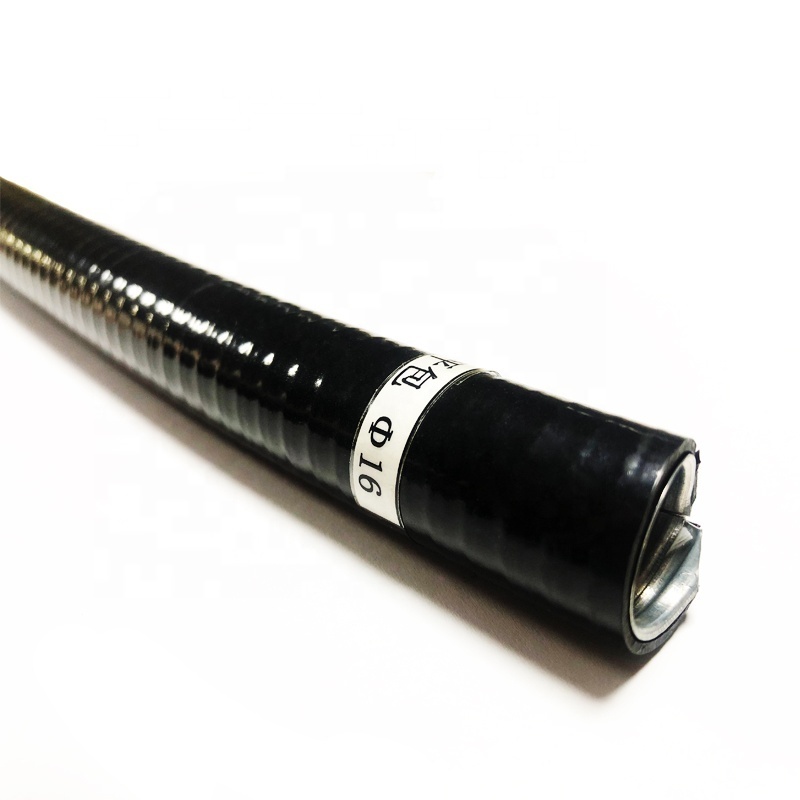

Product name: CNYY-JSP flat plastic metal hose
Material :(inner layer) with galvanized steel strip and special anti-corrosion treatment, (outer layer) with PVC raw material
(anti-ultraviolet, anti-aging).
Working temperature: -10℃ to +80℃, short time up to +100℃, can be customized high temperature and low temperature resistant
products.
Product certification: RoHS certification, CE certification, V0 grade flame retardant certification.
threading wires and cables.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
CNYY
-
Model Number:
-
CNYY-JSB
-
Color:
-
Black,Light grey,other colors can be customized
-
Meterial:
-
PVC+Galvanized steel band
-
Certification:
-
RoHS,CE,ISO:9001
-
Size:
-
6mm--100mm
-
Temperature Range:
-
-10°C~80°C, instantaneously can be 100℃
-
Outer diameter:
-
9±0.25mm~109±3.0mm
-
Max axial strain:
-
335kg~4700kg
-
Natural curve:
-
40mm~410mm
-
Thickness:
-
as required
-
Usage:
-
electric wires and cable protection
Quick Details
-
Type:
-
Flexible
-
Material:
-
PVC+Steel
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNYY
-
Model Number:
-
CNYY-JSB
-
Color:
-
Black,Light grey,other colors can be customized
-
Meterial:
-
PVC+Galvanized steel band
-
Certification:
-
RoHS,CE,ISO:9001
-
Size:
-
6mm--100mm
-
Temperature Range:
-
-10°C~80°C, instantaneously can be 100℃
-
Outer diameter:
-
9±0.25mm~109±3.0mm
-
Max axial strain:
-
335kg~4700kg
-
Natural curve:
-
40mm~410mm
-
Thickness:
-
as required
-
Usage:
-
electric wires and cable protection
Product Description
Product Description
Product color: black
Product characteristics: 1. The hose is waterproof, insulating and tensile.
2, the surface of the thick layer of PVC, smooth appearance, and PVC plastic added fire retardant.
3, the structure is reverse buckle type to increase tensile strength, not easy to break or deformation.
4. Internal smooth structure is very easy for threading wires and cables.
Product characteristics: 1. The hose is waterproof, insulating and tensile.
2, the surface of the thick layer of PVC, smooth appearance, and PVC plastic added fire retardant.
3, the structure is reverse buckle type to increase tensile strength, not easy to break or deformation.
4. Internal smooth structure is very easy for threading wires and cables.
Usage scenarios for products
Applications
Used for robot, aerospace and aviation equipment, high-speed railway and subway, electric power generation, railway and rail transit, ship, chemical industry, communication system, engineering equipment installation, industrial automation equipment, machine tool machinery equipment, lighting equipment, electrical insulation protection system and other indoor and outdoor environment wire and cable protection.
Size Information
|
ITEM
|
Metric
|
G System
|
Outer Diameter and Tolerance
|
Natural Curve
|
Max Axial Pull
|
Packaging Unit
|
|
CNYY-JSP
|
Φ10
|
5/16"
|
15.1±0.5
|
55
|
590
|
100
|
|
CNYY-JSP
|
Φ13
|
3/8"
|
17.9±0.5
|
65
|
765
|
50
|
|
CNYY-JSP
|
Φ16
|
1/2"
|
21.3±0.5
|
85
|
940
|
50
|
|
CNYY-JSP
|
Φ20
|
3/4"
|
26.0±0.5
|
100
|
1180
|
50
|
|
CNYY-JSP
|
Φ25
|
1"
|
32.4±0.5
|
120
|
1450
|
50
|
|
CNYY-JSP
|
Φ32
|
1-1/4"
|
42.4±0.5
|
150
|
1885
|
20
|
|
CNYY-JSP
|
Φ38
|
1-1/2"
|
47.6±0.6
|
180
|
2240
|
20
|
|
CNYY-JSP
|
Φ51
|
2"
|
60.2±1.0
|
220
|
3000
|
20
|
|
CNYY-JSP
|
Φ64
|
2-1/2"
|
73.7±1.5
|
310
|
|
10
|
|
CNYY-JSP
|
Φ75
|
3"
|
88.6±2.0
|
350
|
|
10
|
|
CNYY-JSP
|
Φ100
|
4"
|
113.5±3.0
|
410
|
|
10
|
Company Instruction
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.And produce the goods by ourself.
A: We are factory.And produce the goods by ourself.
Q: How long is your delivery time?
A
: About the production time :
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
And the delivery time : Generally about 30days. It is according to your location.
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
And the delivery time : Generally about 30days. It is according to your location.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
