Quick Details
-
Theoretical Shot Volume(cm³):
-
254.3 cm³
-
Injection Rate (g/s):
-
142.4 g/s
-
Injection Weight (g):
-
240 g
-
Screw Speed (rpm):
-
0 - 200 rpm
-
Screw diameter (mm):
-
45 mm
-
Weight (KG):
-
42000 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
250 mm
-
Model Number:
-
XCX-850ST
-
Brand Name:
-
XCX
-
Power (kW):
-
6.4 kW
-
Product name:
-
Plastic Injection Molding Machine
-
Single gross weight:
-
4.2tf
-
Screw diameter:
-
36/40/45mm
-
Injection pressure:
-
13.7mpa
-
After-sales Service Provided:
-
Online Support
-
Clamping force:
-
833KN
-
Opening stroke:
-
480/580mm
-
Weight (after packing):
-
5.5t
-
Machiner Dimensions(mm):
-
1.88*1.38*2.75/3.51m
-
max mold size:
-
400*300mm
Quick Details
-
Mold Height(mm):
-
230 - 330 mm
-
Ejector Stroke(mm):
-
60 mm
-
Ejector Force(kN):
-
26.5 kN
-
Theoretical Shot Volume(cm³):
-
254.3 cm³
-
Injection Rate (g/s):
-
142.4 g/s
-
Injection Weight (g):
-
240 g
-
Screw Speed (rpm):
-
0 - 200 rpm
-
Screw diameter (mm):
-
45 mm
-
Weight (KG):
-
42000 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
250 mm
-
Model Number:
-
XCX-850ST
-
Brand Name:
-
XCX
-
Power (kW):
-
6.4 kW
-
Product name:
-
Plastic Injection Molding Machine
-
Single gross weight:
-
4.2tf
-
Screw diameter:
-
36/40/45mm
-
Injection pressure:
-
13.7mpa
-
After-sales Service Provided:
-
Online Support
-
Clamping force:
-
833KN
-
Opening stroke:
-
480/580mm
-
Weight (after packing):
-
5.5t
-
Machiner Dimensions(mm):
-
1.88*1.38*2.75/3.51m
-
max mold size:
-
400*300mm
Product Description

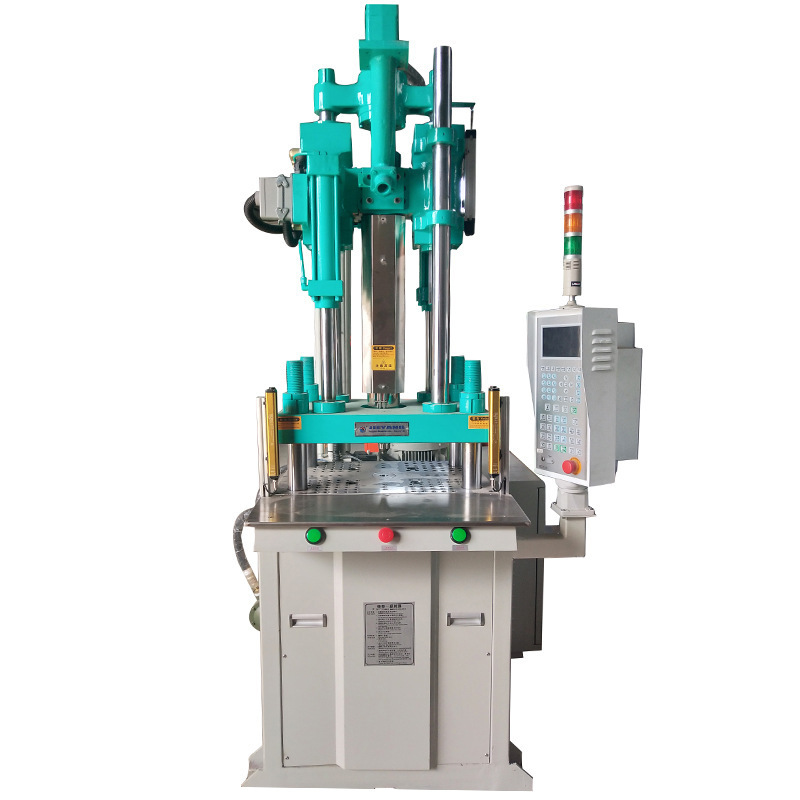

Machine Factory Plastic Manufacturing Machines Plastic Molding Machine Plug Making Equipment Desktop Molding Machine
FEATURES
1)Straight screw ejected assembly.
2)Three-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confectioned.
3)Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.
4)Low-pressure closed die assembly can protect the safety of die.
5)Material tube can be lifted. It is easy to clean stub bar. It is easy to fix die.
6)Can be installed a single mold or double shuttle table.
2)Three-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confectioned.
3)Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.
4)Low-pressure closed die assembly can protect the safety of die.
5)Material tube can be lifted. It is easy to clean stub bar. It is easy to fix die.
6)Can be installed a single mold or double shuttle table.
Specification
|
JY-850ST
|
|
|
|
|
||||
|
Screw Diameter
|
mm
|
Φ36
|
Φ40
|
Φ45
|
||||
|
Theoretical Injection Volume
|
cm³
|
162.7
|
201
|
254.3
|
||||
|
Injection Weight
|
g
|
153.8
|
190
|
240
|
||||
|
Max.Injection Pressure
|
Mpa
|
180.5
|
146
|
115.5
|
||||
|
Injection Rate
|
cm³/s
|
91
|
112.5
|
142.4
|
||||
|
Injection Speed
|
mm/s
|
89.6
|
|
|
||||
|
Injection Stroke
|
mm
|
160
|
|
|
||||
|
Screw Speed Rotation
|
r.p.m
|
0-200
|
|
|
||||
|
NO.of Temperaturecontrol
|
|
3+1
|
|
|
||||
|
Nozzie Out From Platens
|
mm
|
≥45
|
|
|
||||
|
Clamping Force
|
KN(tf)
|
833(85)
|
|
|
||||
|
Clamping Stroke
|
mm
|
250
|
|
|
||||
|
Min.Mold Thickness
|
mm
|
230/330
|
|
|
||||
|
Max.Opening
|
mm
|
480/580
|
|
|
||||
|
Distance Between Tie Bas(L*W)
|
mm
|
560*370
|
|
|
||||
|
Max.Mould Size(L*W)
|
mm
|
550*400
|
|
|
||||
|
Platen Size(L*W)
|
mm
|
750*560
|
|
|
||||
|
Ejector Distance
|
mm
|
60
|
|
|
||||
|
Ejector Force
|
KN(tf)
|
26.5(2.7)
|
|
|
||||
|
System Pressure
|
Mpa
|
13.7
|
|
|
||||
|
Oil Tank Capacity
|
L
|
250
|
|
|
||||
|
Electric Power
|
KW(HP)
|
11(15)
|
|
|
||||
|
Heater Power
|
KW
|
6.4
|
|
|
||||
|
Machine Dimensions(L*W*H)
|
m
|
1.88*1.38*2.75/3.51
|
|
|
||||
|
Machine Weight
|
tf
|
4.2
|
|
|
||||

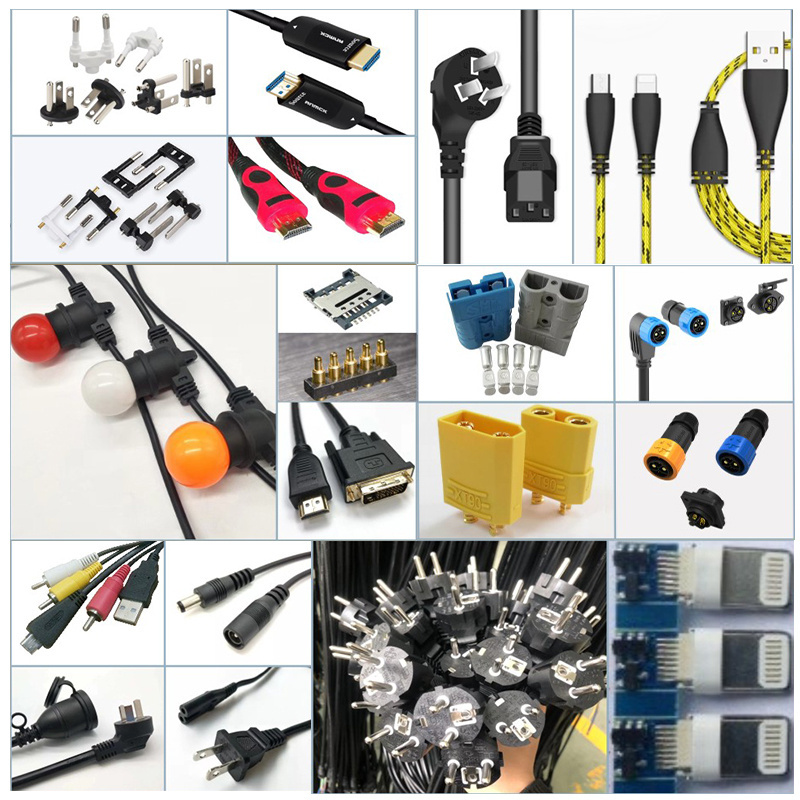

Sample Display
Details Images
The temperature control of the second (third) stage, the firing rate, the pressure, and the screw speed are infinitely adjustable, precise and stable.
