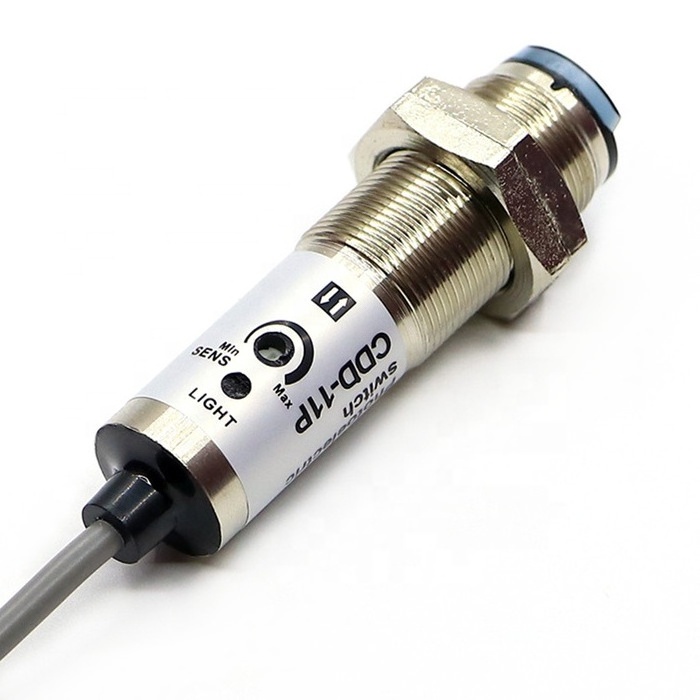

car parking sensor system CDD-11P 10cm Infrared photoelectric switch ir

car parking sensor system CDD-11P 10cm Infrared photoelectric switch ir

FOB Reference Price: Get Latest Price

≥1 Pieces

US $4.2

≥100 Pieces

US $4

≥500 Pieces

US $3.8

≥1000 Pieces

US $3.2

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Mounting Type:: metal bracket

Description:: Diffuse reflective, SENSOR

Model Number:: CDD-11P

Place of Origin:: Zhejiang, China

Brand Name:: Aotoro

Theory:: position sensor

Output:: PNP

Certification:: CE CCC

output voltage:: 10-30VDC

testing distance:: 10cm adjustment

protection:: IP64

Material:: Metal

output method:: diffuse

Specification:: PNP NO or NC selection 4wires

current control:: 200mA

diameter:: 18mm

detect object:: non-transparent.transparent

Quick Details

Usage:: industrial automation

Series:: SENSOR

Features:: OPTICAL

Mounting Type:: metal bracket

Description:: Diffuse reflective, SENSOR

Model Number:: CDD-11P

Place of Origin:: Zhejiang, China

Brand Name:: Aotoro

Theory:: position sensor

Output:: PNP

Certification:: CE CCC

output voltage:: 10-30VDC

testing distance:: 10cm adjustment

protection:: IP64

Material:: Metal

output method:: diffuse

Specification:: PNP NO or NC selection 4wires

current control:: 200mA

diameter:: 18mm

detect object:: non-transparent.transparent

Maybe you want

AOTORO FACTORY OFFER YOU:

1.FACTORY DIRECTLY PRICE
2.NICE QUALITY
3.QUICK SHIPPING WITHIN 5DATS
4.NO MOQ.1PCS OK.SMALL ORDER WELCOME.
5.ONLINE PAYMENT
6.SUPPORT 7DAYS REFUND
7.AFTER SALES SERVICES24/7.

Product Description

Model number	CDD-11P	Diameter	18mm
Output method	PNP NO NC 4wires	Material	Brass
Output voltage	10-30VDC	type	Diffuse
Detect distance	10CM	Cable length	2m

Integrated design Adopt integrated optimization components; Key parts adopt international famous brands Reliability and stability are guaranteed

Exterthe circuit line protection function Short circuit protection Ability to resist transient electric pulse and anti-surge capability Anti-strong magnetic interference capability Impact current capability

External protection

IP67 protection structure, anti-soaking, oil proofing Anti-vibration, anti-shock, tensile, anti-twist Resistant to transient temperature differences for reliable use in harsh environments
