Quick Details
-
Model Number:
-
WD-950
-
Voltage:
-
220V/110V
-
Power:
-
120W
-
Dimension(L*W*H):
-
1350*300*630mm
-
Weight:
-
90kgs
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
No overseas service provided
-
Max Feeding Width:
-
950mm
-
Paper Weight:
-
85-400g/Square meters
-
N.W:
-
90kgs
-
G.W:
-
110kgs
-
Certification:
-
CE Certificate
Quick Details
-
Type:
-
Creasing machine
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WD
-
Model Number:
-
WD-950
-
Voltage:
-
220V/110V
-
Power:
-
120W
-
Dimension(L*W*H):
-
1350*300*630mm
-
Weight:
-
90kgs
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
No overseas service provided
-
Max Feeding Width:
-
950mm
-
Paper Weight:
-
85-400g/Square meters
-
N.W:
-
90kgs
-
G.W:
-
110kgs
-
Certification:
-
CE Certificate
Product Information

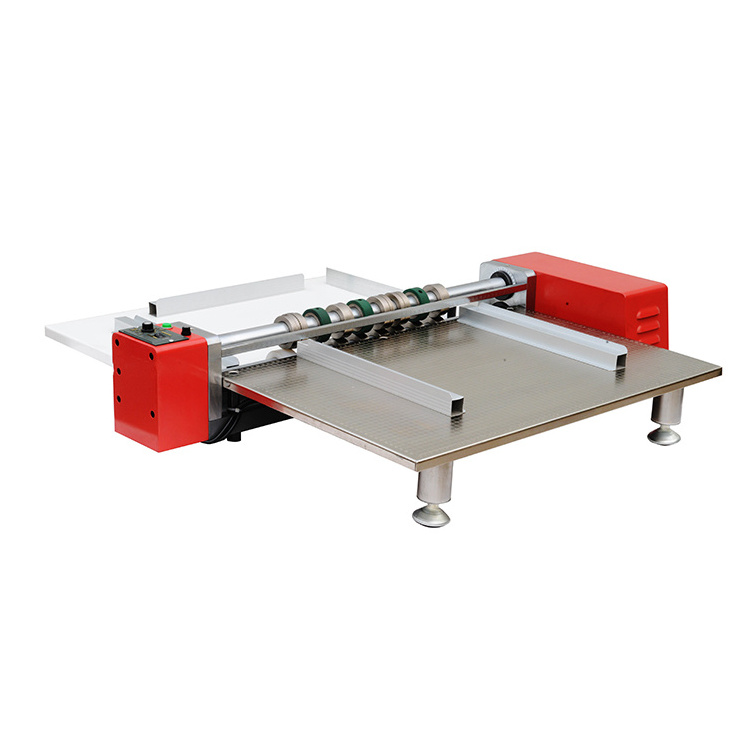

| Name | Electric Paper Creasing Machine | ||
| Model | WD-P480 | WD-650 | WD-950 |
| Standard | 3 set single creasing, 1 set perforating, 1 set cutting ,3set paper guide | 1 set single creasing, 1set double creasing, 1 set perforating, 1 set cutting ,2 set paper guide | 1 set single creasing, 1 set double creasing, 1 set perforating, 1 set cutting ,5 set paper guide) |
| Max Feeding Width | 480mm | 650mm | 950mm |
| Paper Weight | 85-250g/ Square meters | 85-400g/ Square meters | 85-400g/ Square meters |
| Feeding Mode | Manual | ||
| Feeding Speed | 1000 Sheets/hour | 4000 Sheets/hour | 4000 Sheets/hour |
| Power | 60W | 120W | 120W |
| Machine dimension | 590*370*240mm | 1000*300*600mm | 1350*300*630mm |
| N.W | 11kgs | 64kgs | 90kgs |
| G.W | 13kgs | 80kgs | 110kgs |
(1) Feeder table, to put paper;
650 semi-automatic creasing machine
(2) Stand, to support feeder table, side frame and delivery board.
(3) Side frame, to fix two main shafts by bearing, small shaft and bush.
(4) Main shaft, to support creasing wheel and transmission wheel.
(5) Transmission part, to complete creasing by rotary motion of two main shafts drived by hand lever, motor.
(6) Delivery board, to put processed paper. (Only 650 semi-automatic creasing machine has this part)
