Quick Details
-
Brand Name:
-
OUNUOWEI
-
Material:
-
40Cr
-
Hardness:
-
HRC48-50
-
Accuracy:
-
0.005mm
-
Taper tolerance:
-
AT3
-
Standard:
-
DIN2080
-
Sample:
-
Available
Quick Details
-
Place of Origin:
-
Shandong, China
-
Weight (KG):
-
0
-
Marketing Type:
-
hot sale
-
Brand Name:
-
OUNUOWEI
-
Material:
-
40Cr
-
Hardness:
-
HRC48-50
-
Accuracy:
-
0.005mm
-
Taper tolerance:
-
AT3
-
Standard:
-
DIN2080
-
Sample:
-
Available

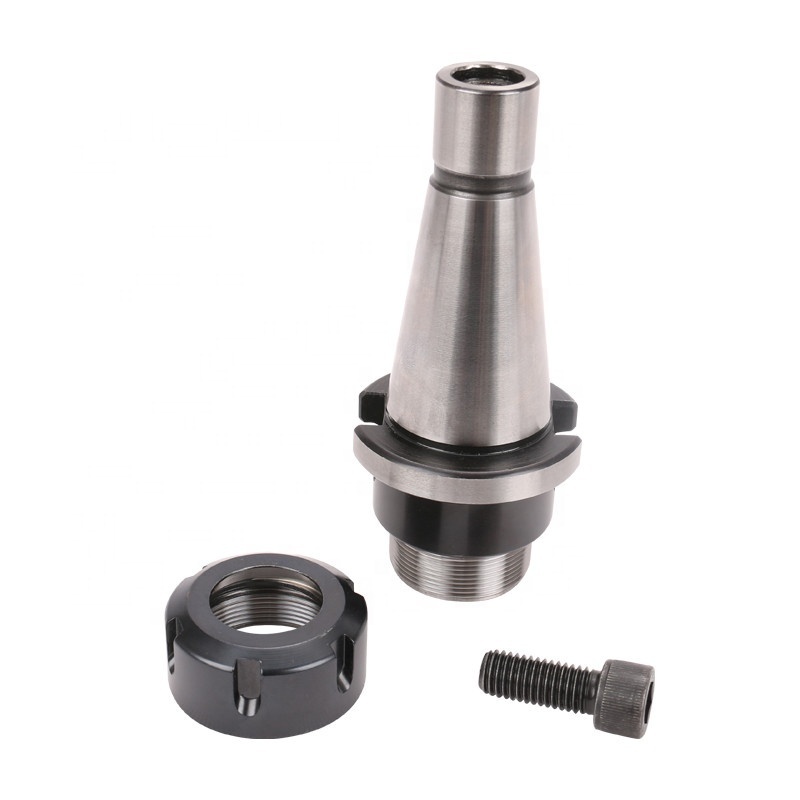

ISO40 NT40 ER16 ER20 ER25 ER32 ER40 ER50 Tool Holder
ISO40 NT40 ER16 ER20 ER25 ER32 ER40 ER50 Tool Holder
| Model | L | L1 | L2 | L3 | d1 | d2 | G | T | Range |
| NT40-ER16-45L | 138.4 | 45 | 34 | 11 | 28 | 16 | 44.45 | M16*2.0P | 1-10mm |
| NT40-ER20-45L | 138.4 | 45 | 34 | 11 | 34 | 20 | 44.45 | M16*2.0P | 1-13mm |
| NT40-ER25-55L | 148.4 | 55 | 44 | 11 | 42 | 25 | 44.45 | M16*2.0P | 1-16mm |
| NT40-ER32-60L | 153.4 | 60 | 49 | 11 | 50 | 32 | 44.45 | M16*2.0P | 2-20mm |
| NT40-ER40-70L | 163.4 | 70 | 59 | 11 | 63 | 40 | 44.45 | M16*2.0P | 2-26mm |
| NT40-ER50-80L | 173.4 | 80 | 69 | 11 | 78 | 50 | 44.45 | M16*2.0P | 6-34mm |
ISO40 NT40 ER16 ER20 ER25 ER32 ER40 ER50 Tool Holder
COLLET INSTALLING AND REMOVING INSRUCTION MANUAL
Installation:
- Firstly should install collet into clamp nut then uses a wrench to lock it on tool holder before working.
- Clean the collet, clamping nut before using so as to get a good performance.
In the process of installation, clamping nut should be tilted some angles with collet. And lock it in card slot.
Features:
- Spindle conicity standard:DIN2080
- ER collet chuck set with ER collet with flexibility used for gripping cutting tool, drill bit, draw bolt and so on.
- When using, nut should be clamped tensed firstly with cutting tools then locked into the main body.
- Always use the recommended wrench or spanner, unless, there might cause damage of cutting tools.
- The spanner,chuck must purchase alone.
ISO40 NT40 ER16 ER20 ER25 ER32 ER40 ER50 Tool Holder
