Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
OEM
-
Model Number:
-
100mm Pipe Repair bandage
-
Product name:
-
100mm Pipe Repair bandage
-
width:
-
2.5cm, 1/2/3/4/5/6inch
-
Length:
-
0.75/1.3/2.7/3/3.6/4.6/5/9/10/15m
-
Material:
-
fiberglass impregnated with polyurethane resin
-
Color:
-
white, black, green, yellow, military green, etc
-
OEM Service:
-
support
-
Packing:
-
foil seal bag
-
Sample:
-
free offered
-
Function:
-
Pipeline Mechanical Protection
Quick Details
-
Technics:
-
Casting
-
Shape:
-
Equal
-
Head Code:
-
Square
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
OEM
-
Model Number:
-
100mm Pipe Repair bandage
-
Product name:
-
100mm Pipe Repair bandage
-
width:
-
2.5cm, 1/2/3/4/5/6inch
-
Length:
-
0.75/1.3/2.7/3/3.6/4.6/5/9/10/15m
-
Material:
-
fiberglass impregnated with polyurethane resin
-
Color:
-
white, black, green, yellow, military green, etc
-
OEM Service:
-
support
-
Packing:
-
foil seal bag
-
Sample:
-
free offered
-
Function:
-
Pipeline Mechanical Protection
Products Description
China factory Water Activated Polyurethane Resin water Pipe Repair wrap Bandage Anti leak rolled tape

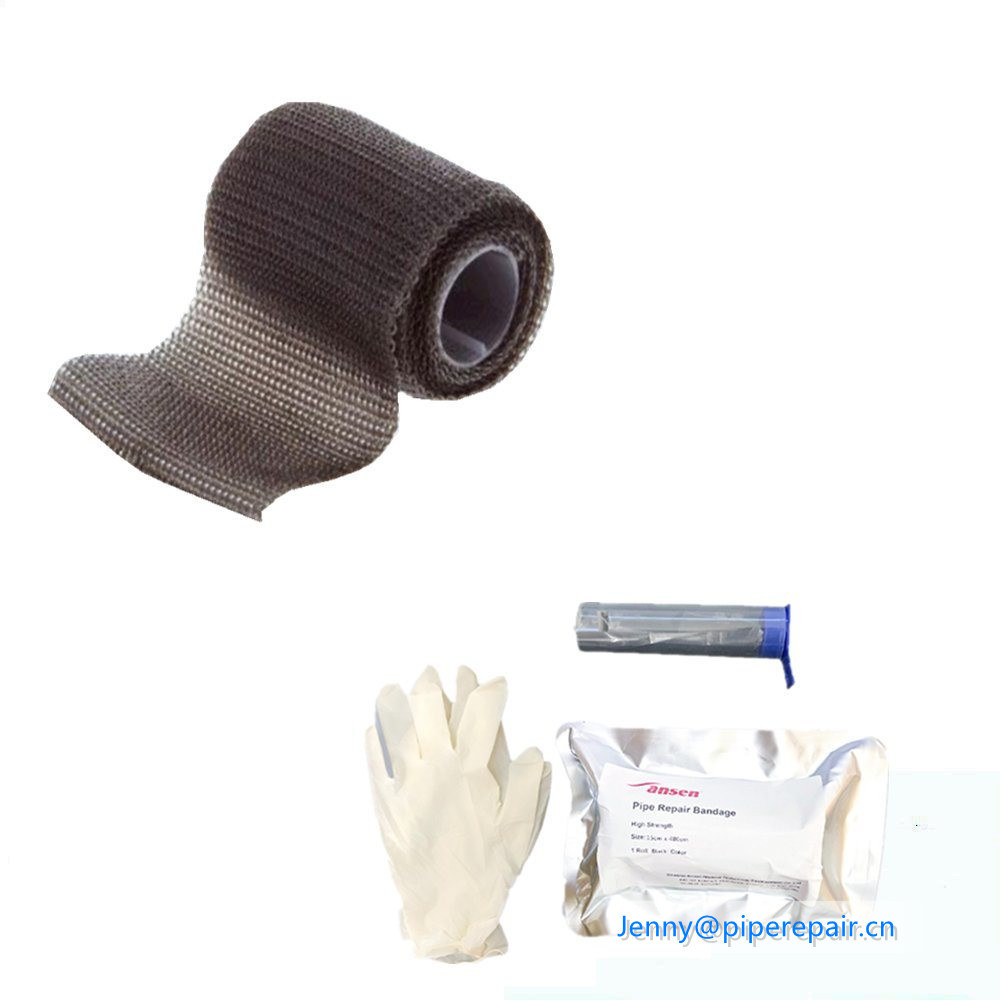

Pipe repair bandage is a roll of fibreglass bandage impregnated with water-activated resin. You simply immerse the bandage in water for 4 seconds,then apply by wrapping around the damaged pipe area. A successful pipe wrap can be achieved in 30 minutes. It is a good
solution moisture cured wrap system for
Pipeline Mechanical Protection for corrosion.
China factory Water Activated Polyurethane Resin water Pipe Repair wrap Bandage Anti leak rolled tape
|
Ansen Pipe Repair Bandage for pipe leaks and reinforcement
|
Ansen Pipe Repair Bandage is used in :
|
|
√ Withstand temperature up to 120-150°C √ Repairs leak in 30 minutes √ Withstand pressure up to 3.1Mpa/31bar/450psi
√
Compressive strength: 27182psi
√ Hardness : 70 Shore D
√ Ideal for pipe reinforcement & corrosion protection
|
Power Generation, Building &Facilities Management, Water distribution,Wastewater, Manufacturing plants, Industrial processing, Electronics,Pharmaceutical, Pulp & Paper, Military, Agricultural,Food processing) |
|
Ansen Pipe Repair Bandage is used for :
|
Ansen Pipe Repair Bandage applies to :
|
|
(Offline pipe repairs, Active leaks, Sealing joints,
Hazardous material spill control,Reinforce thinning
walls,Corrosion control & protection)
* Abrasion protection * Structural reinforcement * Repairs in hard to reach areas * Underwater repairs * Electrical conduit or cable repairs |
Black Iron, Stainless Steel, PVC, CPVC,
Fiberglass,Polyethylene,Polypropylene)
* Pressure up to 450 PSI * Temperature up to 150°C * Pipe diameter up to 60″ (1524 mm) * Liquid or Gas pipeline * Permanent repair or extend service life of pipes |
Specification
|
Name
|
Model
|
Size
|
Packing
|
|||
|
Pipe repair bandage
|
PR002
|
50mm × 3.6m (2''×12'')
|
10 rolls ×10 rolls/ctn
|
|||
|
Pipe repair bandage
|
PR003
|
75mm × 3.6m (3''×12'')
|
10 rolls ×10 rolls/ctn
|
|||
|
Pipe repair bandage
|
PR004
|
100mm × 3.6m (4''×12'')
|
10 rolls ×10 rolls/ctn
|
|||
|
Pipe repair bandage
|
PR005
|
125mm × 3.6m (5''×12'')
|
10 rolls ×10 rolls/ctn
|
|||
|
Pipe repair bandage
|
PR006
|
150mm × 3.6m (6''×12'')
|
10 rolls ×10 rolls/ctn
|
|||
|
1/2/3/4/5/6inch width, 3m/5m/6m/9m/10m/15m length, we can do.
|
|
|
|
|||
Application:(two levels for saving costs)
Level 1
Level 1 is for normal Industrial, such as water
pipe repaired, sewer pipe repaired, etc.
Level 2
Level 2 is for high requirement of Industrial usage, such as oilfield, gas pipeline etc.
How to use it
1.Shut off the pressure and isolate leak. Clean, degrease and abrade substrate around leak site.
2
.
Put on gloves supplied with the Pipe Repair Bandage. Immerse Bandage in water or place under
running
tap water
for 4 secs.
4.Wrap the Bandage tautly around the wrap site extending 50mm either side of damaged area.
5.Smooth the resin as it foams during curing and work resin into the base fabric in a 'tightening motion'.
Restore pipe to
service once Bandage is cured.
China factory Water Activated Polyurethane Resin water Pipe Repair wrap Bandage Anti leak rolled tape
Package-can stick your logo
