- Product Details
- {{item.text}}
Quick Details
-
Description:
-
ultrasonic level sensor, kus600 ultrasonic sensor
-
Model Number:
-
kus550
-
Place of Origin:
-
China
-
Brand Name:
-
kus550
-
Theory:
-
ultrasonic level sensor
-
Output:
-
analog, RS485, switch
Quick Details
-
Usage:
-
sensor
-
Series:
-
kus550
-
Mounting Type:
-
Liquid Level Sensor
-
Description:
-
ultrasonic level sensor, kus600 ultrasonic sensor
-
Model Number:
-
kus550
-
Place of Origin:
-
China
-
Brand Name:
-
kus550
-
Theory:
-
ultrasonic level sensor
-
Output:
-
analog, RS485, switch
PRODUCT DETAILS
|
Description
|
ultrasonic level sensor
|
|
Model Number
|
KUS550
|
|
Type
|
Liquid Level Sensor
|
|
Series
|
KUS
|
|
Features
|
3.3V
|
|
Manufacturing Date Code
|
KUS
|
|
Place of Origin
|
Shaanxi, China
|
|
Theory
|
Ultrasonic sensor
|
|
Output
|
0-10V.0-3V.0-5V/4-20mA/RS485 /NPN/PNP
|
|
Description
|
Ultrasonic Sensor
|
|
Measuring range
|
0.25 ~ 3m (5m customizable)
|
|
Blind area
|
0~ 250mm
|
|
Ranging accuracy
|
≤ 1% F.S
|
|
Ranging resolution
|
1mm
|
|
Working current
|
≤ 45 MA
|
|
Supply voltage
|
3.3-30 VDC, ripple 10 %SS
|
|
Working temperature
|
-40-5℃(233-358K)
|
|
Electrical connection
|
5-core cable, 6-core cable
|
|
Ambient temperature
|
-40-85℃ (233-358K)
|
|
Material Housing
|
PVDF (default) / PVC / PTFE
|

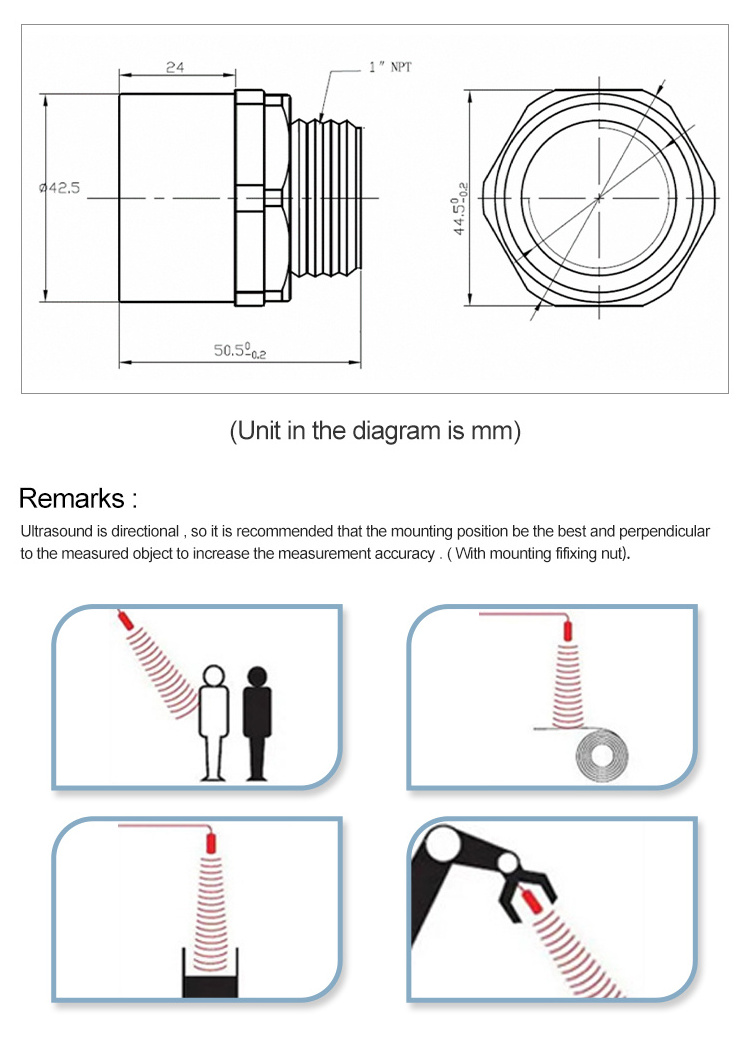

PRODUCT DIMENSION

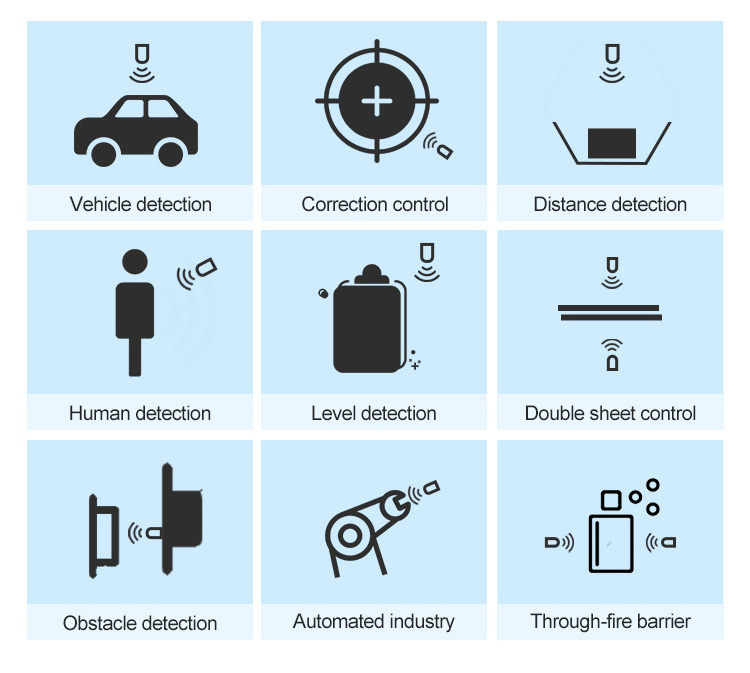

PRACTICAL APPLICATION

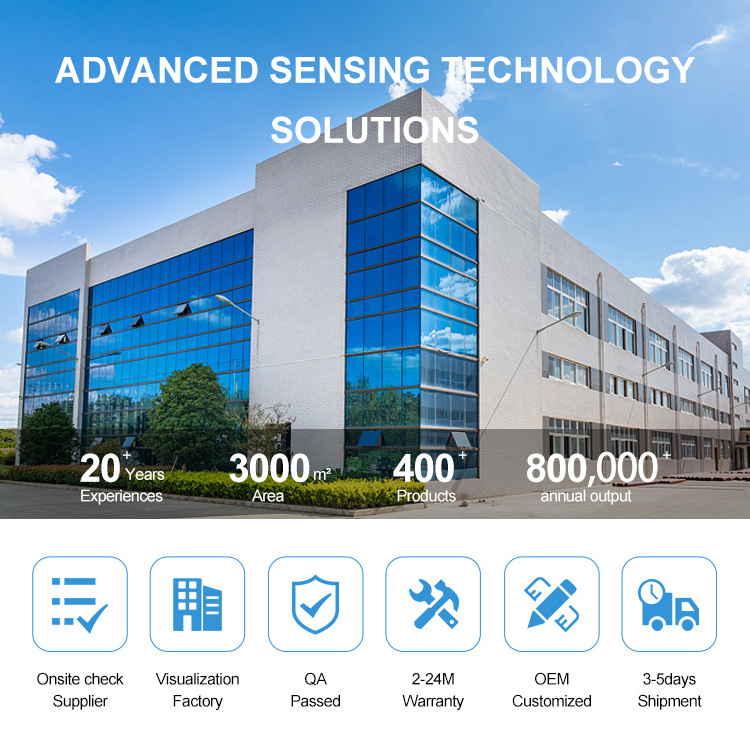

COMPANY PROFILE
