- Product Details
- {{item.text}}
Quick Details
-
Case material:
-
304 stainless steel
-
Infrared log:
-
Standard configuration of 4 pairs
-
Working voltage:
-
AC220±10%V 50±10%HZ
-
Drive motor:
-
Brushless dc motor
-
Size:
-
1200*190*980 (mm)
-
Channel width:
-
800-1200 (mm) custom
-
Swing arm transmission angle:
-
180 degrees
-
Swinging direction:
-
Unidirectional or bidirectional
-
Gate opening and closing time:
-
1-2 seconds
-
Normal service life:
-
5 million times
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Rige
-
Model Number:
-
01-04
-
Case material:
-
304 stainless steel
-
Infrared log:
-
Standard configuration of 4 pairs
-
Working voltage:
-
AC220±10%V 50±10%HZ
-
Drive motor:
-
Brushless dc motor
-
Size:
-
1200*190*980 (mm)
-
Channel width:
-
800-1200 (mm) custom
-
Swing arm transmission angle:
-
180 degrees
-
Swinging direction:
-
Unidirectional or bidirectional
-
Gate opening and closing time:
-
1-2 seconds
-
Normal service life:
-
5 million times

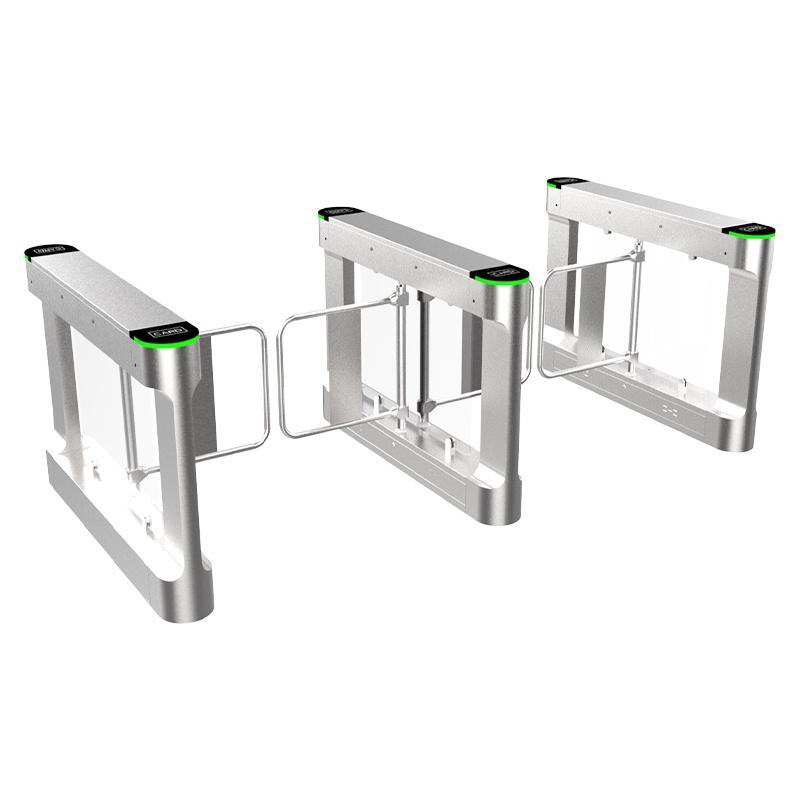

Product Description
Case
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
Brand Name
|
Rige
|
|
Case material
|
Domestic standard 304 stainless steel, with 6mm tempered glass on the back panel
|
|
Working voltage
|
AC220±10%V 50±10%HZ
|
|
Drive motor
|
Brushless dc motor
|
|
Size
|
1200*190*980 (mm)
|
|
Channel width
|
800-1200 (mm) custom
|
|
Swing arm transmission angle
|
180 degrees
|
|
Swinging direction
|
Unidirectional or bidirectional
|
|
Gate opening and closing time
|
1-2 seconds
|
|
Normal service life
|
5 million times
|
|
Fire linkage function
|
Infrared 4 pairs
|
|
Light control
|
Three color lights standby blue, illegal entry red, normal passage green
|
|
Traffic speed
|
40 people/minute (normally open), 25-30 people/minute (normally closed)
|
|
Input
|
Relay switch signal or 12V level signal or 12V pulse signal with a pulse width greater than 100ms, driving current greater than 10mA
|
