Quick Details
-
Voltage:
-
180V--430V & others
-
Power:
-
1100
-
Weight:
-
variable as volume
-
Dimension(L*W*H):
-
variable as volume
-
Product name:
-

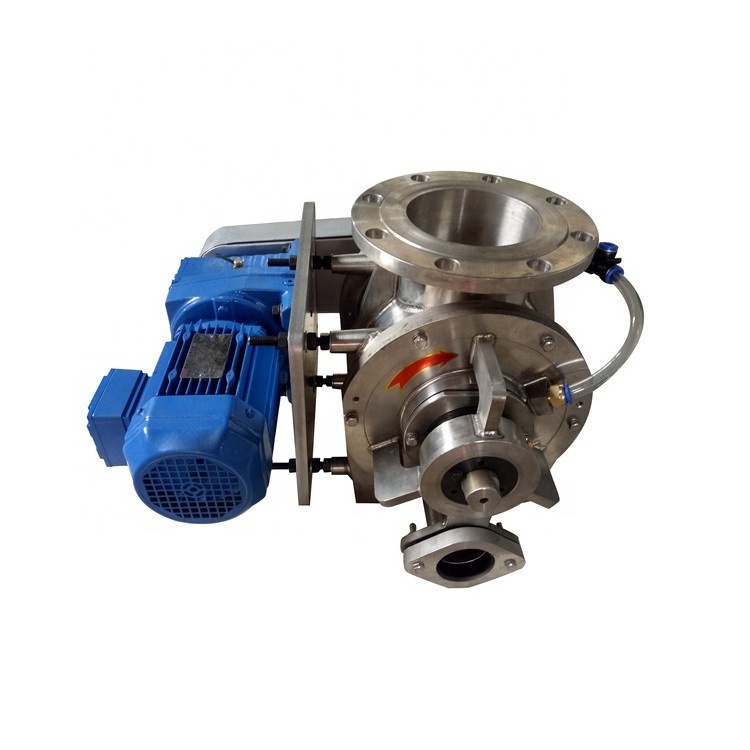

The blow-through rotary airlock valve
-
Product material:
-
cast iron
-
Media:
-
Powder or granule
-
Rotate speed:
-
<45 R/min
-
Motive power:
-
Motor
-
Port size:
-
The customers' requirements
-
Standard and nonstandard:
-
Standard or nonstandard
-
Certification:
-
ISO9001:2008
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
CHEEGERS
-
Production Capacity:
-
3.4T/h--4.8T/h
-
Voltage:
-
180V--430V & others
-
Power:
-
1100
-
Weight:
-
variable as volume
-
Dimension(L*W*H):
-
variable as volume
-
Product name:
-
The blow-through rotary airlock valve
-
Product material:
-
cast iron
-
Media:
-
Powder or granule
-
Rotate speed:
-
<45 R/min
-
Motive power:
-
Motor
-
Port size:
-
The customers' requirements
-
Standard and nonstandard:
-
Standard or nonstandard
-
Certification:
-
ISO9001:2008
Product introduction:
The blow-thru rotary airlock feeder is ideal for pneumatic conveying applications in food, grain, chemical, milling, baking, plastics and pharmaceutical industries. The blow-thru airlocks feature a low profile with large capacity. High pressure differentials integral mounting feet, and retrofit competitive units. The blow-thru valves are available with 6--10-vane open-end rotor; outboard bearings and replaceable shaft seals.
System craft flow:
Our products can be assembled as 10,11" in the picture.
|
Type |
Inlet and out let |
size |
|||||||||||||||||
|
|
F0 |
F0 |
Dg |
A |
B |
C |
C1 |
D |
F |
F1 |
F2 |
F |
F1 |
F2 |
G |
H |
H0 |
L |
Diameter |
|
BFCP-2.5 |
130 |
130 |
45 |
80 |
180 |
225 |
245 |
180 |
210 |
180 |
80 |
210 |
180 |
100 |
470 |
280 |
140 |
455 |
30h7 |
|
BFCP-5.5 |
200 |
170 |
65 |
150 |
220 |
328 |
300 |
220 |
280 |
250 |
150 |
250 |
220 |
120 |
628 |
340 |
170 |
580 |
40h7 |
|
BFCP-8.5 |
250 |
250 |
70 |
200 |
300 |
395 |
375 |
250 |
330 |
300 |
/ |
250 |
330 |
/ |
770 |
400 |
200 |
630 |
40h7 |
|
BFCP-13.5 |
270 |
240 |
100 |
220 |
300 |
395 |
365 |
280 |
360 |
330 |
200 |
330 |
300 |
180 |
770 |
435 |
230 |
660 |
40h7 |
|
BFCP-28 |
350 |
250 |
110 |
330 |
315 |
402 |
480 |
360 |
450 |
415 |
300 |
350 |
315 |
180 |
882 |
550 |
305 |
800 |
55h7 |
|
BFCP-56 |
410 |
310 |
120 |
390 |
480 |
402 |
545 |
450 |
510 |
475 |
360 |
410 |
375 |
200 |
947 |
640 |
345 |
870 |
55h7 |
|
BFCP-145 |
560 |
400 |
180 |
540 |
660 |
460 |
730 |
600 |
680 |
635 |
510 |
520 |
475 |
340 |
1190 |
840 |
440 |
1240 |
70h7 |
The blow thru rotary airlock valve
Our products advantage:
1.Energy small
2.Our motors are SEW motors
3.High quality & Competitive price
4.Single spray paint reduce the waste residue
5.The materials are used after aging treatment
6.The products processed by professional workers
Our company advantage:
1, 54 years' experience on producing rotary airlock valve
2,Professional engineer’s team
3,Prompt reply (replies and offers the price in 24 hours)
4,Standard project management
5,Timely delivery & Best service
6,ISO9001:2008
Business scope:
*Food processing
*The pharmaceutical industry
*The petrochemical industry
*The environmental protection industry
*Durability industry
*Sanitary equipment
*Machinery components
If you have any questions, please email me.
Waiting for your enquiry.
Cheegers machinery , the bestseller in China , the honest supplier .
