Quick Details
-
Voltage:
-
380V
-
Weight:
-
1.8 KG
-
Dimension(L*W*H):
-
2250*1450*1400mm
-
Product name:
-

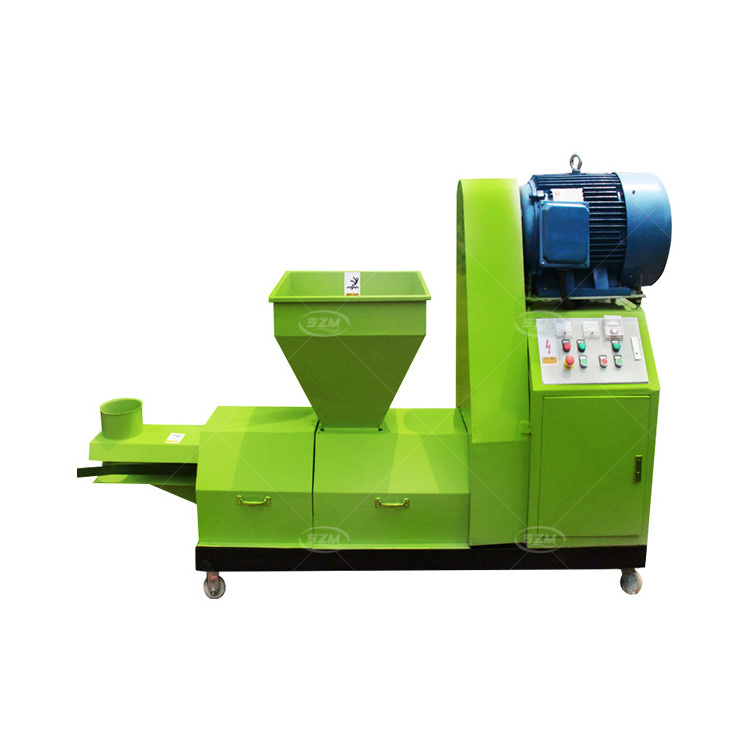

Energy-saving Wood Charcoal Briquette Making Machine
-
Capacity:
-
300-400 Kg/h
-
Keyword:
-
1-6T/h
-
Moisture of material:
-
less than 25%
-
Applicable raw materials:
-
charcoal powder, coal dust.
-
Color:
-
Customer's Request
Quick Details
-
Warranty:
-
1 Years
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SZM
-
Voltage:
-
380V
-
Weight:
-
1.8 KG
-
Dimension(L*W*H):
-
2250*1450*1400mm
-
Product name:
-
Energy-saving Wood Charcoal Briquette Making Machine
-
Capacity:
-
300-400 Kg/h
-
Keyword:
-
1-6T/h
-
Moisture of material:
-
less than 25%
-
Applicable raw materials:
-
charcoal powder, coal dust.
-
Color:
-
Customer's Request
Product Overview
Charcoal
Briquette
Machine
The sawdust briquette making machine.Machine adopt good quality carbon steel,the service life over 10 years.The material can be various biomass,like palm kernel,peanut shell,branch,logs,ect.The material size must less 5mm.If material too big,we will recommend you crusher according to your requirement.Besides the material size must less 5mm,the moisture of material should be 12%.Too wet or too dry will cause bad forming effect.If your material moisture over 12%,we have sawdust drying machine.After crushing,the material was delivery to drying machine,then it was sent to forming machine.
About the raw materials : any biomass materials is ok
Wood log/ coconut shell / palm / peanut shell / rice husk/ straw ...... more than 30style.
The raw materials diameter should be below 3mm, and the moisture should be 8%-12%
PRODUCT SPECIFICATIONS
|
Model Style
|
140
|
180
|
300
|
450
|
|||
|
Capacity
|
1-2t/h
|
2-3t/h
|
3-5t/h
|
8-12t/h
|
|||
|
Power
|
11kw
|
22kw
|
90kw
|
220kw
|
|||
|
Diameter of briquette
|
18-80mm ( buyer need tell us what diameter you need )
|
|
|
|
|||
|
Speed
|
60rpm
|
60rpm
|
132rpm
|
132rpm
|
|||
|
Size
|
1.9*1.1*1.17m
|
2.2*1.37*1.44m
|
3.6*1.4*1.45m
|
5.13*1.52*1.5m
|
|||
|
Raw materials size
|
<3mm
|
|
|
|
|||
