Quick Details
-
Power Source:
-
Electric
-
Capacity:
-
30
-
Power (W):
-
500
-
Voltage (V):
-
220
-
Model Number:
-
TB-500
-
Brand Name:
-
AG Sonic
-
Place of Origin:
-
China
-
Tank size:
-
500*300*200mm
-
Tank capacity:
-
30L
-
Ultrasonic power:
-
500W
-
Heating Power:
-
600W
-
Transducer:
-
30pcs
-
Frequency:
-
40KHZ
-
Used:
-
30L Industrial Ultrasonic Cleaner
Quick Details
-
After-sales Service Provided:
-
Free spare parts
-
Warranty:
-
2 years
-
Application:
-
Car, Outdoor, Commercial, Household
-
Power Source:
-
Electric
-
Capacity:
-
30
-
Power (W):
-
500
-
Voltage (V):
-
220
-
Model Number:
-
TB-500
-
Brand Name:
-
AG Sonic
-
Place of Origin:
-
China
-
Tank size:
-
500*300*200mm
-
Tank capacity:
-
30L
-
Ultrasonic power:
-
500W
-
Heating Power:
-
600W
-
Transducer:
-
30pcs
-
Frequency:
-
40KHZ
-
Used:
-
30L Industrial Ultrasonic Cleaner

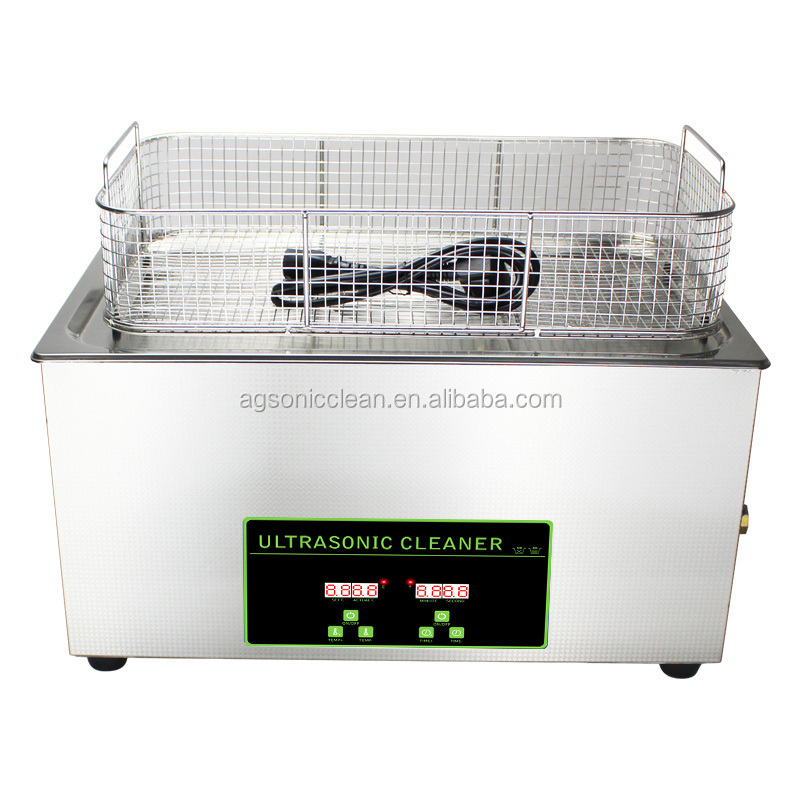

Big Ultrasonic Cleaner Industrial Ultrasonic Cleaning Systems Rust Removal
Ultrasonic Cleaning For Electronics And Semi-Conductors Processing
Application:
Carburetors Fuel Injectors Brake Cylinders Cylinder Heads Differential
Small needle valves, jets, orifices, and ports of a carburetor; intake and exhaust ports or a cylinder head; pistons;injector nozzle; ring; pinion gears and much more can be cleaned and made just like brand new within few minutes.
Removing the accumulated oil sludge, varnish and carbon deposits, from these engine parts, manually by hand can be a tedious and long process. But using an ultrasonic parts cleaner makes all this a breeze. And for this reason ultrasonic cleaning device is considered one of the best tools in the auto mechanic’s garage.
Another unavoidable fact is that, with use, electronics get very dirty. Dirt and other contaminants are more than an inconvenience. If not cleaned properly, dirt on electronic components can cause the device to:
- Overheat and start fires.
- Short circuit and injure people.
- Malfunction causing loss of valuable data.
- Spread disease through the use of infected keyboards, cell phones, touch screens and other devices.
In order to protect users, preserve data and keep society running smoothly, it’s very important for electronics of all types to not just be regularly cleaned, but cleaned thoroughly .
- Car service: Flushing carburetors, injectors, injectors, fuel filter mesh cleaning (petrol), individual parts, assemblies, and entire blocks.
- Medicine: Washing and polishing of optics, sterilization and cleaning of surgical instruments, vials, dental and pharmaceutical industries; cleaner reusable, molds.
- Engineering: Cleaning of parts, pipes, wires, etc. before finishing, machining parts and components to the preservation, processing of parts after reopening, welding, grinding, polishing, cleaning strainers in the fuel and hydraulic systems, deburring parts.
- Instrumentation: Washing and polishing of optics, precision mechanics components, integrated circuits and printed circuit boards.
Produce Specifications:
| Model | TC-500 |
| Ultrasonic Frequency | 40,000 Hz |
| Material | SUS304 |
| Tank Capacity | 30L |
| Ultrasonic Power | 200-500 W |
| Heating power | 600W strong power, quick heating |
| Timer | 1-30min adjustable |
| Heater | 0-80C adjustable |
| Unit Size | 530 x 325 x 325 mm ( L x W x H ) |
| Tank Size | 500 x 300 x 200 mm ( L x W x H ) |
| Package Size | 635 x 405 x 390 mm ( L x W x H ) |
| N.W. | 14 kg |
| G.W. | 15.6 kg |
| Power Supply |
AC 100 ~ 120V, 50 / 60Hz
AC 220 ~ 240V, 50 / 60 Hz |
Features:
1. Ultrasonic power: 0-100% adjustable
2. Time setting: 0-30min or 24 hours continuous working
3. Heating: 20-80℃ adjustable
4: Ultrasonic frequency: 28 kHz or 40 kHz
5: Material: 2mm thickness SUS304 tank for acid-proof.
6: Improved PCB design for stable and durable industrial use
7: More strong and uniform ultrasonic wave
8: With free lid and stainless steel SUS304 basket
Other models for your choice:
| Model | Tank size | Unit size | Volume | Actual ultrasonic power | Rated ultrasonic power | Ultrasonic frequency | Heating power | Timer | Heating temperature |
| LxWxH(mm) | LxWxH(mm) | (L) | (W) | (W) | (kHz) | (W) | (MIN) | (℃) | |
| TB-50 | 150x135x100 | 175x160x210 | 2 | 50 | 60 | 40 | 150 | 1-30 | 0-80 |
| TB-100 | 240x135x100 | 265x165x220 | 3.2 | 100 | 120 | 150 | |||
| TB-150A | 300x150x100 | 325x180x225 | 4.5 | 150 | 180 | 300 | |||
| TB-150B | 300x150x150 | 325x180x280 | 6.5 | 150 | 180 | 300 | |||
| TB-200 | 300x240x150 | 325x265x280 | 10.8 | 200 | 240 | 450 | |||
| TB-300 | 330x300x150 | 360x325x285 | 15 | 300 | 360 | 450 | |||
| TB-400 | 500x300x150 | 530x325x285 | 22 | 400 | 480 | 600 | |||
| TB-500 | 500x300x200 | 530x325x325 | 30 | 500 | 600 | 600 |
Packing:
1 x ultrasonic cleaner
1 x SUS basket
1 x SUS lid
1 x power cord
1 x English instruction manual
Features of the machine:
•Low maintainence machine
•Heavy duty cleaning systems
•Chemical friendly- SS Rust proof body
•Industrial guage farication, build to last
•One year warrenty on any manufacturing defect
•Completely customized to suit the cleaning requirement
•Less human interfearance and less scope of error
•Accurate and uniform cleaning everytime
Big Ultrasonic Cleaner Industrial Ultrasonic Cleaning Systems Rust Removal
For 1pcs or small quantity, shipping by express/air is suggested.
For laege quantity, shipping by sea is cost-effective.
We have cooperated forwarder, welcome to ask freight.
