Toothpicks Bamboo Wooden Automatic Tooth Pick Bbq Sticks Maker Bamboo Kebab Meat Skewer Making Machine for sale

Toothpicks Bamboo Wooden Automatic Tooth Pick Bbq Sticks Maker Bamboo Kebab Meat Skewer Making Machine for sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $1290

≥10 Sets

US $1180

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: 5.5kw

Weight:: 290

Raw material:: Bamboo

Application:: Barbecue Stick

Package:: Wooden Case

Finished product:: Toothpick Chopstick Skewer Barbecue Stick

Capacity:: 600000 Pecs/8 Hours

If need increase productivity:: Increase Stick Sharpen Machine Quantity

Feature:: High Capacity

MOQ:: 1set

Function:: Multifunctional

Advantage:: High Effiency

Quick Details

Place of Origin:: Henan, China

Brand Name:: runxiang

Voltage:: 380v

Power:: 5.5kw

Weight:: 290

Raw material:: Bamboo

Application:: Barbecue Stick

Package:: Wooden Case

Finished product:: Toothpick Chopstick Skewer Barbecue Stick

Capacity:: 600000 Pecs/8 Hours

If need increase productivity:: Increase Stick Sharpen Machine Quantity

Feature:: High Capacity

MOQ:: 1set

Function:: Multifunctional

Advantage:: High Effiency

Product Description

Totally Machines: 8 setsCapacity/Output: 8 hours output of 400,000 sticks, about 200 ~ 500 kg dry bamboo sticks.
Operation:4 ~ 6 mechanical operators, male or female.
Voltage: The power is 380V industrial electricity, the actual electricity consumption of normal production is about 11 degrees per hour.

Specification

	Name	Model	Power kw	Weight KG	Size cm
1	Sawing machine	ZJ-791	1.5	58	12050105
2	Bamboo dissection machine	ZJ-388	4	650	31070125
3	Flakers	ZJ-275	2.2 1.1	310	13065103
4	Bamboo filament shaping machine	ZJ-144	3.0×2 1.1	400	10065108
5	Filament set-size machine	ZJ-741	0.75	80	1406688
6	Polishing machine	TJ-542	1.5	270	2157085
7	Stick Sharpen Machine	ZJ-646	0.37 0.75	248	140×80×100
8	Multi-sharpen machine	TJ-803	0.37	65	755095

This Bamboo Skewer Making Machine is mainly used to make fresh bamboo into the bamboo toothpicks, bamboo sticks and BBQ skewer.
These machine can process the fresh bamboo into the bamboo toothpics, bamboo sticks and so on in different sizes or shapes according to the real requirement.

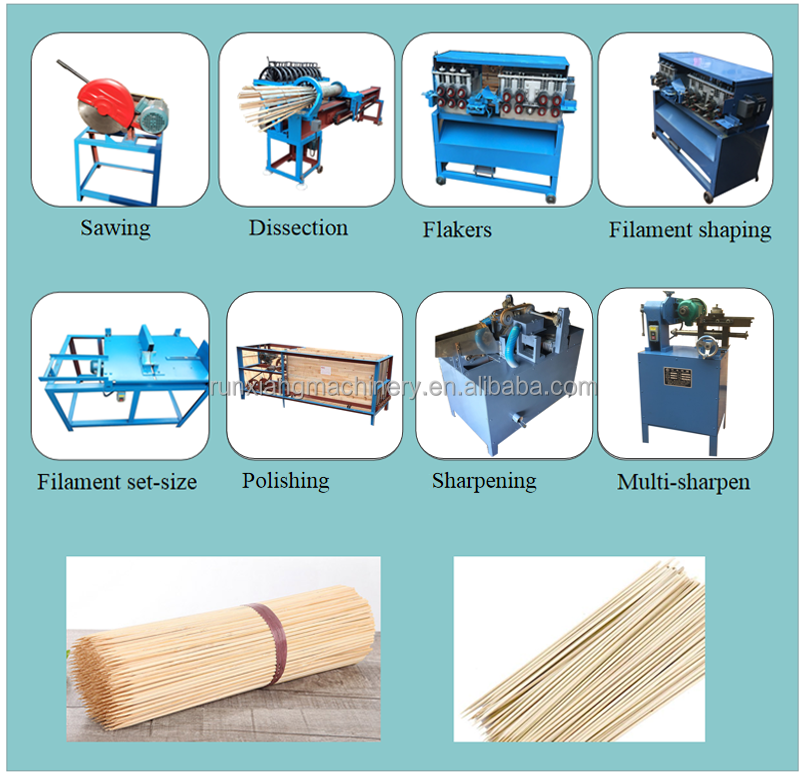

Bamboo dissection machine---Combined flakers---Bamboo filament shaping machine---Bamboo filament set-size machine---filament set-size machine---Polishing machine---stick sharpening machine---Multi-sharpen machine

Detail show

Usually every 100 kilograms of fresh bamboo (wet), can produce Φ3.0~Φ2.5 length between 300 ~ 150 mm, 20000 ~ 40000 pcs different specifications of the bamboo stick, about dry finished signed 20 ~ 35 kg.

Requirements for bamboo

Bamboo should be fresh bamboo or wet bamboo that has been grown for more than three years. The completely dry bamboo will speed up
the wear of the blade and is not good for the machine. The size of the bamboo: between 5 to 17 cm in diameter.

Factory space

The toothpick machine needs to use more than 400 square meters of factory buildings. The machine itself is only 8 cubic meters,
but it requires enough space to store raw materials.

Bleaching technology

A process of bleaching and soaking is required after the bamboo yarn is made. We offer bleaching technology. Customers can build a
cement pool by themselves, 2 cubic meters is enough.Or buy stainless steel cooking pots.

Working principle

1. Fresh bamboo sawing machine: Cut the fresh bamboo into certain size.

2. Bamboo splitting machine/dissection machine: Split the bamboo into chips.
3. Bamboo flaker: Fixing the width of bamboo pieces and flattening the bamboo pieces.
4. Bamboo filament machine
5. Bamboo filament set-size machine: Cut the pieces into certain sticks.
6. Bamboo polishing machine: Polish the stick and making the surface smooth.
7. Bamboo Stick sharpening machine: Sharpen the head of toothpicks.
8. Bamboo multi-functional sharpener: sharpen the blades or knifes.

Packing & Delivery

wooden case packing
