Quick Details
-
Voltage:
-
280V/380V
-
Power:
-
7.5kw
-
Dimension(L*W*H):
-
700*430*980mm
-
Weight:
-
175 KG
-
Machinery Function:
-
Grinding
-
Output product name:
-
Nut butter, Sauce, Milk
-
Name:
-
peanut butter making machine
-
Application:
-
nut, vegetable & fruit, meat
-
Material:
-
Stainless steel
-
Working principle:
-
Stator and Rotor
-
Stator and rotor material:
-
SS 420
-
Processing fineness:
-
100-200mesh
-
Fineness:
-
can be adjustable
-
Hopper bottom diameter:
-
90mm
-
Hopper volume:
-
8L
-
Package:
-
Wooden case
Quick Details
-
Marketing Type:
-
New Product 2021
-
Brand Name:
-
Fusion
-
Place of Origin:
-
Henan, China
-
Voltage:
-
280V/380V
-
Power:
-
7.5kw
-
Dimension(L*W*H):
-
700*430*980mm
-
Weight:
-
175 KG
-
Machinery Function:
-
Grinding
-
Output product name:
-
Nut butter, Sauce, Milk
-
Name:
-
peanut butter making machine
-
Application:
-
nut, vegetable & fruit, meat
-
Material:
-
Stainless steel
-
Working principle:
-
Stator and Rotor
-
Stator and rotor material:
-
SS 420
-
Processing fineness:
-
100-200mesh
-
Fineness:
-
can be adjustable
-
Hopper bottom diameter:
-
90mm
-
Hopper volume:
-
8L
-
Package:
-
Wooden case

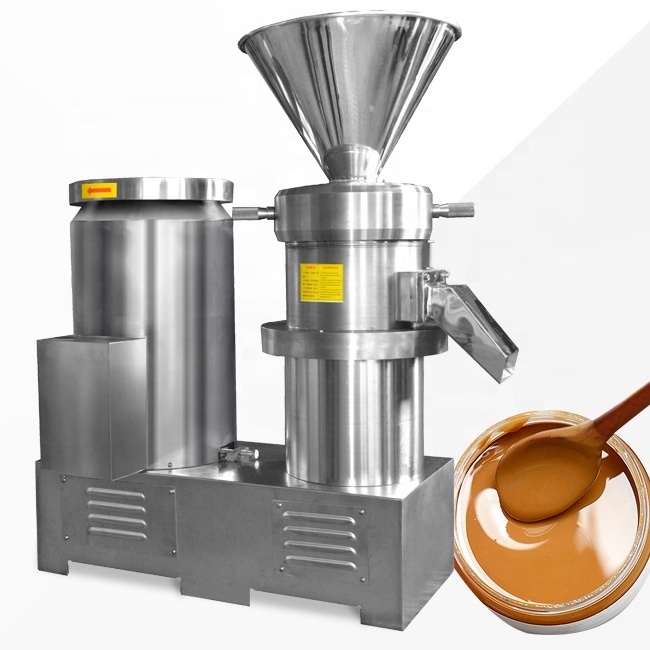

Factory peanut butter making machine/peanut butter grinding machine /Colloid mill
1. Brief introduction of the peanut butter machine :
1.This peanut butter machine is maily used to crush material into paste. jam in food,chemical area.
2. The raw material could be peanut, sesame , Cocoa, almond etc.
3. The final paste is more fine and have big capacity.
4. The standard type machine material : All the parts connecting with raw material are Stainless Steel , Stator and Rotor parts are SS 420. Other parts are Carbon steel. The machine material can be customized to 304 stainless steel or 316 Stainless Steel. The machine material can be customized to 304 stainless steel or 316 Stainless Steel according to customers's requirement.
2. Scope of application:
(
1) Various nuts:
such as Peanuts, Sesame, Almonds, Cocoa, Cashew, Soya beans, Corn, Hazelnut , Pistachios, Macadamia nuts, etc.
(2) Vegetables and fruits:
Chili, Garlic, Ginger, Onion, Tomato, Potato, Banana, Apples,
etc.
(3) Meat : Chicken, Fish, Bone mud, etc.
3. Technical parameters:
|
Model |
Power |
Capacity
|
Fineness
|
Weight |
Machine Size |
|
FX-50 |
1.5kw |
10-15 kg/h |
50-100 mesh |
50 kg |
530*260*580 mm |
|
FX-80 |
4kw |
60-80 kg/h |
80-150
mesh
|
150 kg |
600*410*930 mm |
|
FX-110 |
7.5kw |
100-200 kg/h |
80-150
mesh
|
175 kg |
700*430*1000 mm |
|
FX-130 |
11kw |
300-500 kg/h |
80-200
mesh
|
285 kg |
990*440*1000 mm |
|
FX-160 |
15kw |
500-600kg/h |
80-200
mesh
|
300kg | 1000*460*1050 mm |
|
FX-180 |
18.5kw |
700-800 kg/h |
80-200 mesh |
375 kg |
1000*490*1100 mm |
|
FX-210 |
30kw |
1000-1200kg/h |
80-200 mesh | 700kg | 1260*600*1230 mm |
|
FX-240 |
45kw |
1200-1500 kg/h |
100-200 mesh |
920 kg |
1330*630*1280mm |
|
FX-300 |
75kw
|
3000-4000 kg/h |
100-200 mesh |
1300 kg |
1500*800*1120mm |
4. For the nut raw material , you need roast or soak it before grinding
(If you want the nut butter or paste, you need roaste the nut )
If you want the nut milk, you need soak the nut )
Why ?
1. Packing: PP film wrapped around the machine and carefully packed in wooden case to focus on protecting damageable parts.
2. Shipping: From port of Shenzhen, Shanghai, Qingdao, Guangzhou,etc. We also accept land, air, sea transport and international multimodal transport.
3. Clearance: Our long history makes us the one of the first and most knowledgeable providers of the equipment, our main customers hail from; Canada, the United States, Brazil, Argentina, Japan, Philippines, Australia, Russia, Thailand, the UAE, Poland, Spain, Germany, India, etc.
