Quick Details
-
Brand Name:
-
FB
-
Use:
-
FTTX, FTTH (Fiber to the Home)
-
Warranty Time:
-
3 years
-
Product name:
-
Fiber Optic PLC Splitter
-
Return Loss (dB):
-
55
-
Operating Wavelength (nm):
-
1260~1650
-
Dimension(mm):
-
60*7*4/60*12*4/80*20*6/100*40*6mm or customized
-
Fiber Type:
-
YOFC/Corning or customized
-
Fiber Length (m):
-
1.0 or customized
-
Operating Temperature:
-
-40~+85°C
Quick Details
-
Type:
-
PLC splitter
-
Model Number:
-
FB-PLC-B
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FB
-
Use:
-
FTTX, FTTH (Fiber to the Home)
-
Warranty Time:
-
3 years
-
Product name:
-
Fiber Optic PLC Splitter
-
Return Loss (dB):
-
55
-
Operating Wavelength (nm):
-
1260~1650
-
Dimension(mm):
-
60*7*4/60*12*4/80*20*6/100*40*6mm or customized
-
Fiber Type:
-
YOFC/Corning or customized
-
Fiber Length (m):
-
1.0 or customized
-
Operating Temperature:
-
-40~+85°C
Products Description
|
Port Configuration
|
|
1×2
|
1×4
|
1×8
|
1×16
|
1×32
|
1×64
|
||||||
|
Operating Wavelength (nm)
|
|
1260~1650
|
|
|
|
|
|
||||||
|
Insertion Loss (dB)
|
Typ.
|
4.0
|
7.0
|
10.3
|
13.5
|
16.6
|
20.0
|
||||||
|
|
Max.
|
4.5
|
7.7
|
11.0
|
14.2
|
17.5
|
21.5
|
||||||
|
Loss Uniformity (dB)
|
Typ.
|
0.4
|
0.5
|
0.5
|
1.0
|
1.0
|
1.5
|
||||||
|
|
Max.
|
0.6
|
0.6
|
0.8
|
1.2
|
1.5
|
2.5
|
||||||
|
Return Loss (dB)
|
|
55
|
55
|
55
|
55
|
55
|
55
|
||||||
|
PDL (dB)
|
Typ.
|
0.1
|
0.1
|
0.1
|
0.1
|
0.2
|
0.2
|
||||||
|
|
Max.
|
0.2
|
0.2
|
0.3
|
0.3
|
0.3
|
0.4
|
||||||
|
Directivity (dB)
|
|
55
|
55
|
55
|
55
|
55
|
55
|
||||||
|
Fiber Length (m)
|
|
1.0 or customized
|
|
|
|
|
|
||||||
|
Fiber Type
|
|
YOFC/Corning SMF-28e or customized
|
|
|
|
|
|
||||||
|
Wavelength Dependent Loss (dB)
|
Typ.
|
0.2
|
0.2
|
0.2
|
0.3
|
0.3
|
0.3
|
||||||
|
|
Max.
|
0.3
|
0.3
|
0.3
|
0.5
|
0.5
|
0.5
|
||||||
|
Temperature Stability (-40~+85°C) (dB)
|
Typ.
|
0.3
|
0.3
|
0.3
|
0.4
|
0.4
|
0.4
|
||||||
|
|
Max.
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
||||||
|
Operating Temperature (°C)
|
|
-40~+85°C
|
|
|
|
|
|
||||||
|
Storage Temperature (°C)
|
|
-40~+85°C
|
|
|
|
|
|
||||||
|
Port Configuration
|
2×2
|
2×4
|
2×8
|
2×16
|
2×32
|
2×64
|
|||||
|
Operating Wavelength (nm)
|
1260~1650
|
|
|
|
|
|
|||||
|
Insertion Loss (dB)
|
4.5
|
8.1
|
11.6
|
15.0
|
18.0
|
21.5
|
|||||
|
Loss Uniformity (dB)
|
0.8
|
1.5
|
1.5
|
2.0
|
2.5
|
2.5
|
|||||
|
Return Loss (dB)
|
55
|
55
|
55
|
55
|
55
|
55
|
|||||
|
PDL (dB)
|
0.2
|
0.2
|
0.4
|
0.4
|
0.4
|
0.4
|
|||||
|
Directivity (dB)
|
55
|
55
|
55
|
55
|
55
|
55
|
|||||
|
Fiber Length (m)
|
1.0 or customized
|
|
|
|
|
|
|||||
|
Fiber Type
|
YOFC/Corning SMF-28e or customized
|
|
|
|
|
|
|||||
|
Wavelength Dependent Loss (dB)
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
|||||
|
Temperature Stability (-40~+85°C) (dB)
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
|||||
|
Operating Temperature (°C)
|
-40~+85°C
|
|
|
|
|
|
|||||
|
Storage Temperature (°C)
|
-40~+85°C
|
|
|
|
|
|
|||||

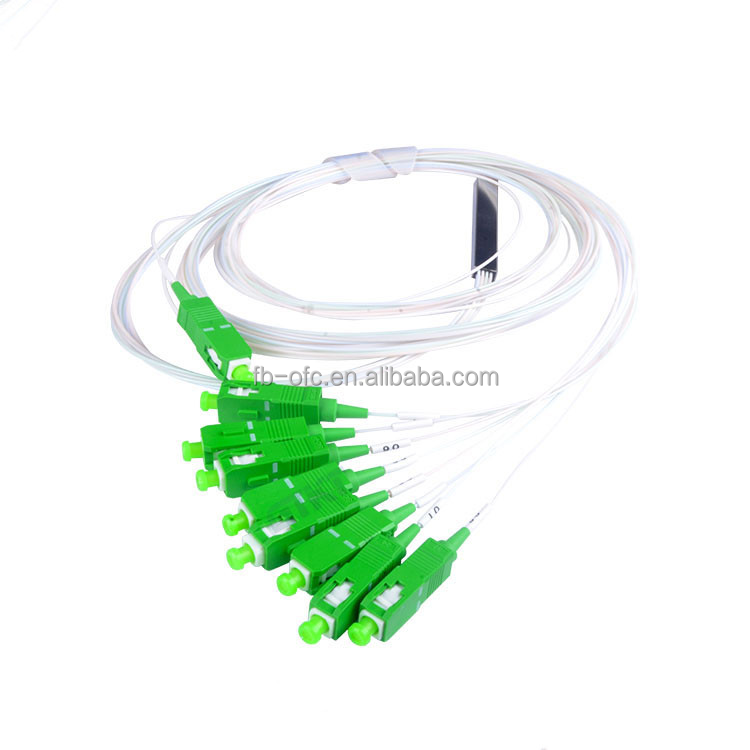

Product show
