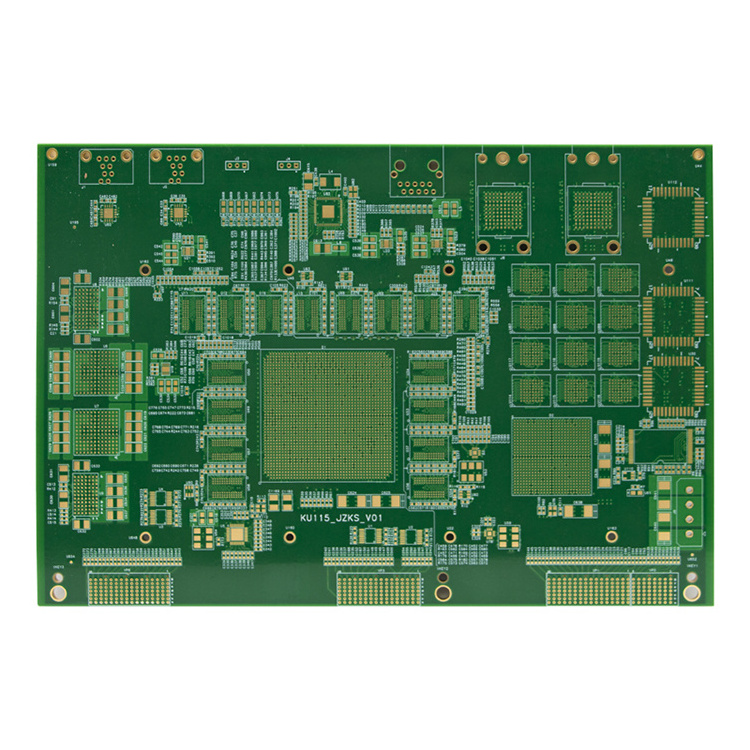

Multilayer PCB Supplier Electronic Card Manufacturer 4 Layer FR4 PCB With Provided Gerber Files BOM
Multilayer PCB Supplier Electronic Card Manufacturer 4 Layer FR4 PCB With Provided Gerber Files BOM
Multilayer PCB Supplier Electronic Card Manufacturer 4 Layer FR4 PCB With Provided Gerber Files BOM
Multilayer PCB Supplier Electronic Card Manufacturer 4 Layer FR4 PCB With Provided Gerber Files BOM
Multilayer PCB Supplier Electronic Card Manufacturer 4 Layer FR4 PCB With Provided Gerber Files BOM
Multilayer PCB Supplier Electronic Card Manufacturer 4 Layer FR4 PCB With Provided Gerber Files BOM
Multilayer PCB Supplier Electronic Card Manufacturer 4 Layer FR4 PCB With Provided Gerber Files BOM
Multilayer PCB Supplier Electronic Card Manufacturer 4 Layer FR4 PCB With Provided Gerber Files BOM

Multilayer PCB Supplier Electronic Card Manufacturer 4 Layer FR4 PCB With Provided Gerber Files BOM

FOB Reference Price: Get Latest Price
≥5 Pieces
US $0.92
≥100 Pieces
US $0.75
≥1000 Pieces
US $0.56
≥5000 Pieces
US $0.35
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Board Size:
Custom size
Model Number:
DC217
Place of Origin:
Guangdong, China
Brand Name:
DC
Copper Thickness:
1oz
Min. Hole Size:
0.1mm
Min. Line Width:
0.075mm
Min. Line Spacing:
0.075mm
Surface Finishing:
HASL/Immersion gold/OSP, Immersion Gold/Silver, Tin, HASL
Min Hole Size:
0.1mm
Testing Service:
100% E-Testing
Insulation Materials:
Epoxy Resin
Processing Technology:
Electrolytic Foil
Solder mask color:
Green, red, white, yellow, blue, black, orange, purp
Shape:
Rectangular, round, slots, cutouts, complex, irregular
OEM/ODM:
YES
Service:
one stop service
Application:
Electronics Device

Quick Details

Number of Layers:
4-layer
Base Material:
FR4
Board Thickness:
1.6mm
Board Size:
Custom size
Model Number:
DC217
Place of Origin:
Guangdong, China
Brand Name:
DC
Copper Thickness:
1oz
Min. Hole Size:
0.1mm
Min. Line Width:
0.075mm
Min. Line Spacing:
0.075mm
Surface Finishing:
HASL/Immersion gold/OSP, Immersion Gold/Silver, Tin, HASL
Min Hole Size:
0.1mm
Testing Service:
100% E-Testing
Insulation Materials:
Epoxy Resin
Processing Technology:
Electrolytic Foil
Solder mask color:
Green, red, white, yellow, blue, black, orange, purp
Shape:
Rectangular, round, slots, cutouts, complex, irregular
OEM/ODM:
YES
Service:
one stop service
Application:
Electronics Device
One-Stop Service

PCB Manufacturing
Welcome PCB prototype and mass production .
From single layer to multilayer with different materials .


PCB Assembly and Component Procurement
Custom for SMT and DIP service .
And help to purchase all kinds of components .
Our Advantage:
√Rich experienced and Professional Surface-mounting and Through-hole soldering Technology.
√Own Factory-good at control of cost ,quality,lead time.
√Offer certificated of UL,FCC, CE,ETL and RoHS.
√Resonable price ,quick delivery and response service

One-stop OEM Service

PCB Fabrications
PCB Assembly Prototypes
IC Proqramming
If any inquiry,please send us quotation files as follows:Gerber file+BOM+Order quantity.
Contact: yolanda@dc-pcb.com
Our Capability
PCB Prototype and Mass Production
Order Type
Custom Order
Layer
1-40 Layers
Material
FR4, CEM3, High TG, Rogers, Aluminum, Ceramics , 94v0 etc
Max. Board Size
610mm x 508 mm ( 24'' x 20'' )
Board Thickness
0.2mm - 6.5mm
Copper Thickness
1oz- 5oz , always 1.6oz
Min. Hole Size
0.10mm
Drilling Acuracy
±0.05mm
Min. Line Width
0.10mm
PTH Hole Size Tolerance
±0.05mm
Aspect Ratio
10:1
Solder Mask Color
Double-sided Green LPI, Red, White,Blue, Black, Purple etc.
Silkscreen Color
White , Black or other colors
Min. Solder Mask Bridge
0.065mm
Impedance Tolerance
±8%
Contour tolerance
±0.1mm


Custom PCB types

Single Side PCB , Double Side PCB , Multilayer PCB , HDI PCB , High Frequency PCB , Aluminum Base PCB , Flex PCB , Rigid-Flex PCB, Heavy Copper PCB ,   and other PCBs you want .

Recommend Products

High Frequency High Speed PCB

Special printed circuit boards with high electromagnetic frequencies,  as frequencies above 1GHz . Commonly used in fields such as automotive collision prevention systems, satellite systems, radio systems, 5G communication, and big data computing .



Half Hole PCB

The main function is to facilitate welding. For board to board connection, mainly when two different technologies of boards need to be combined. Used on some precision demanding small modules, such as WiFi modules ,Bluetooth modules ,communication modules and others .
Company Introduction

In 2011, Diancheng Circuit was founded as a PCB manufacturer in Shenzhen .
After more than 10 years , the company has developed into a one-stop solution platform in electronic manufacturing industry .

We mainly focused on PCB from 1-40 layers with special technical , such as Blind&Buried Holes, HDI, High TG, High Frequency High Speed , Heavy Copper, Gold Finger, Impedance Control, BGA, Aluminum and Rigid-Flex PCBs .
We also can help all customers for PCB assembly service. Our factory has auto lines of SMT assembly with reflow soldering and 3 lines of wave soldering for DIP components. So you can complete your PCB fabrication and assembly all in our factory.
Application:

CERTIFICATES
Exhibition
Production process

PCB Manufacturing Processes
Cutting Drilling PTH Circuit Transfer
AOI Solder Resist Routing and V-Cut Electrical Testing

China Manufacturer Custom Printed Circuit Board PCB Assembly With SMT DIP Soldering

P CB Assembly Processes
Solder Paste Printing Surface Mounting Reflow Soldering AOI
THT Wave Soldering ICT Testing FQC
FAQ
Q1: Are you a factory or trade company? Answer: We are real factory, we have our own PCB manufacturing & Assembly production lines.

Q2. What kinds of files do you need for production? Answer :Dear friend , please prepare the PCB design file such as Gerber file , and Bom list for all components you need .

Q3. Are the product's information and design file safe ? Answer : Dear friend , w e will keep all your files and product information confidential . And we can sign a confidentiality agreement with each other.

Q4: How long will we get the quotation after providing PCB Gerber file, completed Bom list , part datasheet and PNP file? Answer: If only need produce PCB board , quotation will be confirmed in 2 hours . If need PCB assembly , 24 hours will be fine .

Q5: The all PCB and PCBA will be tested before delivery if we provide the function testing method ? Answer: Yes, we ensure that each piece of PCB and PCBA will be tested before shipment with 100% pass rate .

Q6: How long does it take for PCB samples ? Answer : always 2-3 days for single layer or double-sided PCB samples, if 4-6 layers , need 3-5 days .
If more than 8 layers , need more days .
