Quick Details
-
Rolling thinckness:
-
0.3-1.2mm
-
Place of Origin:
-
Hebei,China
-
Brand Name:
-
Xinghe
-
Voltage:
-
380V or at requirement
-
Dimension(L*W*H):
-
6500mm*1200mm*1600mm
-
Weight:
-
2500 kg
-
Feeding width:
-
500mm
-
Marketing Type:
-
New Product 2022
-
Raw material:
-
PPGI PPGL GI GL
-
Main frame:
-
350mm/400mm H-Beam
-
Control system:
-
PLC(imported Brand)
-
Cutting blade material:
-
Cr 12 Mov
-
Shaft material:
-
45# Steel Outer Diameter: 75mm
-
Roller material:
-
GCr15
-
Cutting type:
-
Automatic Hydraulic Cutting
Quick Details
-

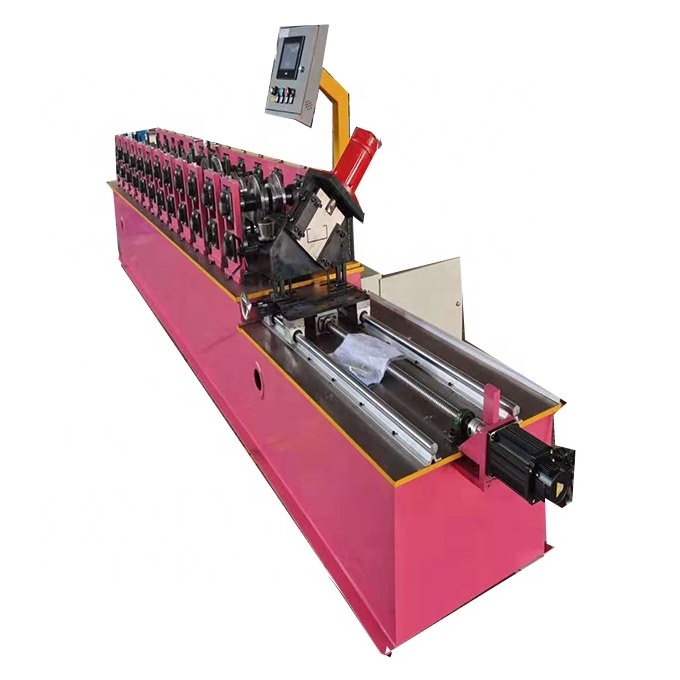

Type:
-
Tile Forming Machine
-
Tile Type:
-
Colored Steel
-
Production Capacity:
-
30 m/min
-
Rolling thinckness:
-
0.3-1.2mm
-
Place of Origin:
-
Hebei,China
-
Brand Name:
-
Xinghe
-
Voltage:
-
380V or at requirement
-
Dimension(L*W*H):
-
6500mm*1200mm*1600mm
-
Weight:
-
2500 kg
-
Feeding width:
-
500mm
-
Marketing Type:
-
New Product 2022
-
Raw material:
-
PPGI PPGL GI GL
-
Main frame:
-
350mm/400mm H-Beam
-
Control system:
-
PLC(imported Brand)
-
Cutting blade material:
-
Cr 12 Mov
-
Shaft material:
-
45# Steel Outer Diameter: 75mm
-
Roller material:
-
GCr15
-
Cutting type:
-
Automatic Hydraulic Cutting
Product Description
Specification
|
item
|
value
|
|
Applicable Industries
|
Building Material Shops, Construction works , Other
|
|
Type
|
Tile Forming Machine
|
|
Tile Type
|
Colored Steel
|
|
Use
|
ROOF
|
|
Production Capacity
|
30 m/min
|
|
Place of Origin
|
Hebei,China
|
|
Brand Name
|
Xinghe
|
|
Voltage
|
380V or at requirement
|
|
Dimension(L*W*H)
|
6500mm*1200mm*1600mm
|
|
Weight
|
2500kg
|
|
Warranty
|
1 Year
|
|
Key Selling Points
|
Easy to Operate
|
|
Rolling thinckness
|
0.3-1.2mm
|
|
Feeding width
|
500mm
|
|
Marketing Type
|
New Product 2022
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Motor, Bearing, Pump, Engine, PLC
|
|
Raw material
|
PPGI PPGL GI GL
|
|
Main frame
|
350mm/400mm H-Beam
|
|
Control system
|
PLC(imported Brand)
|
|
Cutting blade material
|
Cr 12 Mov
|
|
Shaft material
|
45# Steel Outer Diameter: 75mm
|
|
Roller material
|
GCr15
|
|
Cutting type
|
Automatic Hydraulic Cutting
|
Packing & Delivery
Naked and fasten in the container
We have container loading plan in advance to make full use of the space and weight
