Quick Details
-
Luminous Efficacy(lm/w):
-
90
-
Input Voltage(V):
-
2.0-2.4V ; 2.2-2.6V'; 3.0--3.6V
-
Luminous Intensity:
-
/
-
Luminous Flux(lm):
-
/
-
Power:
-
1W (CH), 3W (CH)
-
Viewing Angle(°):
-
120
-
Color Rendering Index(Ra):
-
70-80
-
Color Temperature:
-
RGB ; RGBW ; RGBWW
-
Operating Temperature(℃):
-
-20 - 60
-
Storage Temperature(℃):
-
-40 - 80
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Lebeisenf
-
Product name:
-
RGB RGBW High Power LED Beads
-
Application:
-
DIY LED RGB RGBW Lamp
-
Certification:
-
CE ROHS
-
Keyword:
-
RGB RGB High power bead LED 1W 3W
-
Voltage:
-
2.0-2.4V ; 3.2-3.6V
-
Forward Current:
-
300-350mA ; 600-700mA
-
light source:
-
High brightness LED chip
-
Substrate material:
-
aluminium
-
size:
-
20mm diameter (plum blossom shaped)
-
Chip brand:
-
Default SanAn (customizable)
Quick Details
-
Color Temperature(CCT):
-
RGB ; RGBW; RGBWW
-
Warranty(Year):
-
2-Year
-
Support Dimmer:
-
Yes
-
Luminous Efficacy(lm/w):
-
90
-
Input Voltage(V):
-
2.0-2.4V ; 2.2-2.6V'; 3.0--3.6V
-
Luminous Intensity:
-
/
-
Luminous Flux(lm):
-
/
-
Power:
-
1W (CH), 3W (CH)
-
Viewing Angle(°):
-
120
-
Color Rendering Index(Ra):
-
70-80
-
Color Temperature:
-
RGB ; RGBW ; RGBWW
-
Operating Temperature(℃):
-
-20 - 60
-
Storage Temperature(℃):
-
-40 - 80
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Lebeisenf
-
Product name:
-
RGB RGBW High Power LED Beads
-
Application:
-
DIY LED RGB RGBW Lamp
-
Certification:
-
CE ROHS
-
Keyword:
-
RGB RGB High power bead LED 1W 3W
-
Voltage:
-
2.0-2.4V ; 3.2-3.6V
-
Forward Current:
-
300-350mA ; 600-700mA
-
light source:
-
High brightness LED chip
-
Substrate material:
-
aluminium
-
size:
-
20mm diameter (plum blossom shaped)
-
Chip brand:
-
Default SanAn (customizable)
Product Description

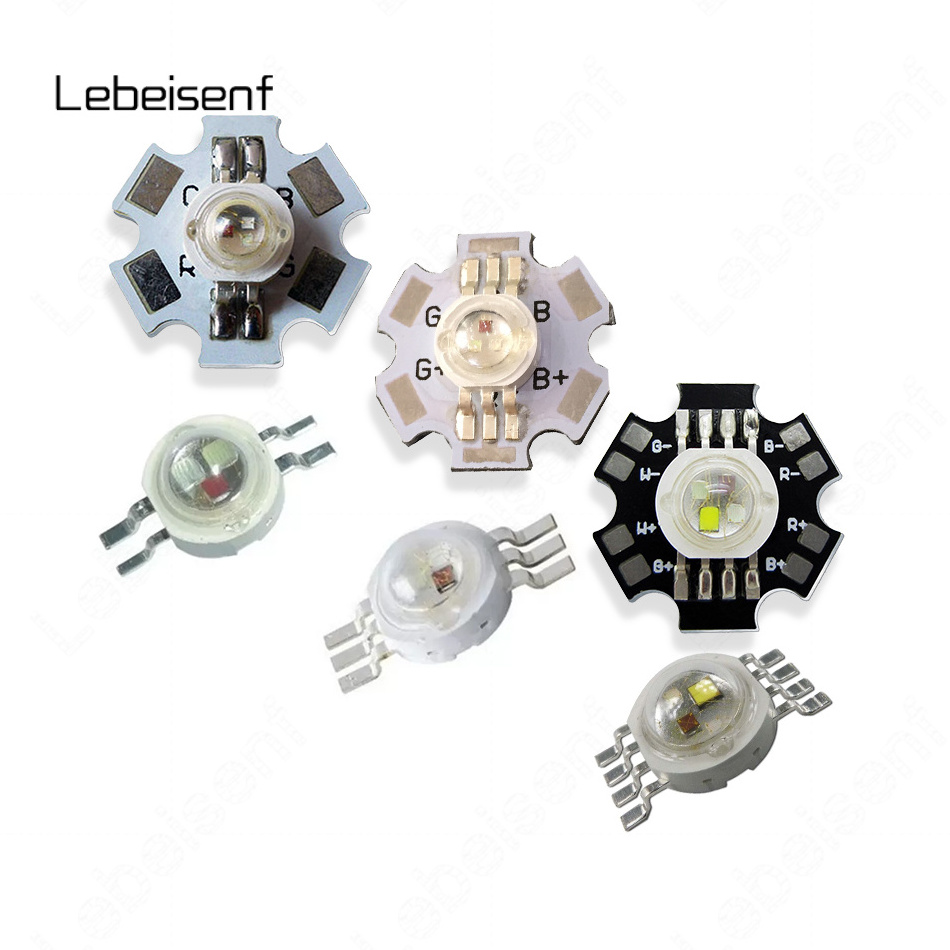

RGB RGBW RGBWW high-power LED beads 1W 3W for stage lights, spotlights, down lights, DIY lighting fixtures
Product Features:
●.High‑quality chips,low light decay,high brightness,sturdiness and durability,and long service life of the lamp beads.
●.Widely used in flashlight,DIY modeling lights,headlights,spotlights,and other lamps and lanterns,and traffic lighting,landscape
lighting,advertising lighting,indoor lighting,etc
●.Made of high quality material,this light bead is sturdy and durable. With aluminium base,it is easy to dissipate the heat.
●.Characterized by high brightness,low power consumption and long lifespan. Instant starting,no flicker,firm and shockproof.
●. It can be placed on a small aluminum substrate,allowing you to solder it in any configuration you want.
●.Lightweight and small size,easy to store and use.
●.Widely used in flashlight,DIY modeling lights,headlights,spotlights,and other lamps and lanterns,and traffic lighting,landscape
lighting,advertising lighting,indoor lighting,etc
●.Made of high quality material,this light bead is sturdy and durable. With aluminium base,it is easy to dissipate the heat.
●.Characterized by high brightness,low power consumption and long lifespan. Instant starting,no flicker,firm and shockproof.
●. It can be placed on a small aluminum substrate,allowing you to solder it in any configuration you want.
●.Lightweight and small size,easy to store and use.
|
Product specifications
|
|
●.Name：High power LED light beads
●.Type：High Power Imitation Lumen Lamp Beads ●.Power：1W ; 3W ●.Voltage：2.0V-2.4; 3.0-3.4; 3.2-3.6 (V) ●.Current：300-350mA; 600-700mA ●.Lumen：20-120LM ●.Luminous color：RGB,RGBW ●.Beam angle：120 degrees ●.Substrate Material：Aluminum ●.Substrate size：20mm*1.5mm (D*H) ●.Application：Suitable for flashlights,DIY modeling lights,headlights,spotlights,and many other lighting products. |
Kindly Reminder:
●.Light and different monitors may cause the color of the item to be somewhat different from the real thing. The allowable error of measurement is +/-1mm.
●.Constant current LED drivers are recommended for high power LED.
●.Working temperature should be less than 60 Degrees Celsius / (140 Fahrenheit) with a Heat Sink System.
●.Please refer to the positive (anode +) and negative (cathode -) sign on Leds
