Quick Details
-
Dimension(L*W*H):
-
195*66*110CM
-
Power (kW):
-
4.3
-
Weight (KG):
-
110 kg
-
Panel Feed Speed(m/min):
-
10m/min
-
Usage:
-
Furniture Maker
-
Product name:
-
Micro Automatic Edge Banding Machine
-
After-sales Service Provided:
-
Technical Online Service
-
Keywords:
-
Woodworking Equipment
-
Application:
-
Furniture Maker
-
Working methods:
-
Fully Automatic
-
Feed speed:
-
0-10m/min
-
Edge thickness:
-
10-50mm
-
Feature:
-
Economic
-
Plate shape:
-
Straight
-
Machinery Test Report:
-
Provided
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
ZDS
-
Voltage:
-
110V/220V/380V
-
Dimension(L*W*H):
-
195*66*110CM
-
Power (kW):
-
4.3
-
Weight (KG):
-
110 kg
-
Panel Feed Speed(m/min):
-
10m/min
-
Usage:
-
Furniture Maker
-
Product name:
-
Micro Automatic Edge Banding Machine
-
After-sales Service Provided:
-
Technical Online Service
-
Keywords:
-
Woodworking Equipment
-
Application:
-
Furniture Maker
-
Working methods:
-
Fully Automatic
-
Feed speed:
-
0-10m/min
-
Edge thickness:
-
10-50mm
-
Feature:
-
Economic
-
Plate shape:
-
Straight
-
Machinery Test Report:
-
Provided
Products Disply

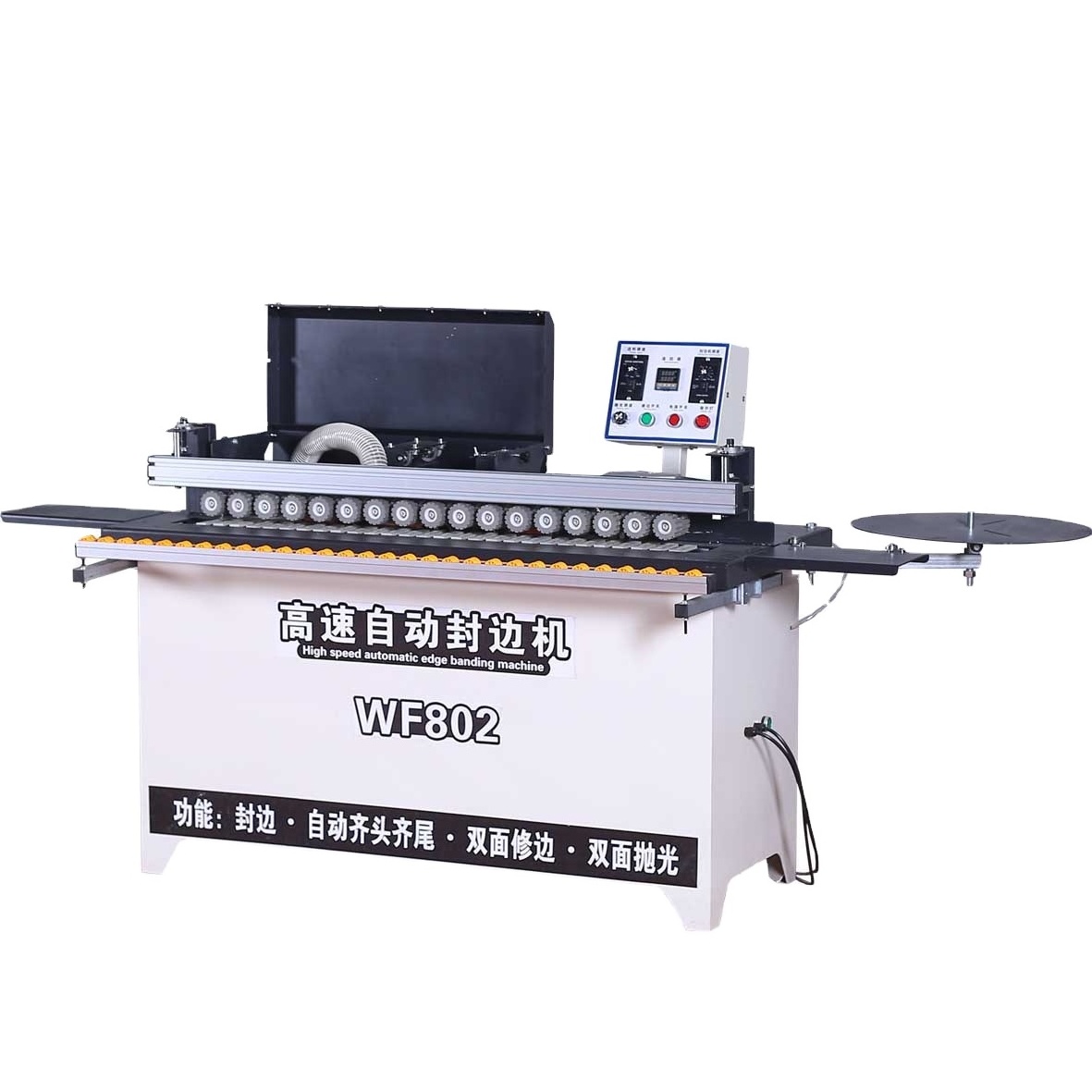

The high-speed automatic edge banding machine has the function of automatic end cutting, with its own vacuum device, clean and tidy.
One-piece pressure beam, double rows of pressure wheels, silicone material conveyor belt, the sheet conveying is stable and not easy to scratch.
It can seal multiple plates continuously, with convenient operation and high efficiency.
Product Parameters
|
Model
|
802
|
802
|
|
|
Function
|
automatic plate feeding, end cutting, upper and lower polishing, automatic head and tail trimming, comes with dust collector
|
|
|
|
Edge type
|
straight line
|
|
|
|
Rated voltage
|
220v
|
|
|
|
Strip thickness
|
0.5-2.5mm
|
|
|
|
Sheet thickness
|
10-50mm
|
|
|
|
Trimming power
|
800w*2
|
|
|
|
Polishing power
|
180w*2
|
|
|
|
Suction power
|
1200w
|
|
|
|
Rated power
|
4kw
|
4kw
|
|
|
Rated air pressure
|
0.4-0.6mpa
|
0.4-0.6mpa
|
|
|
Feed plate
|
0-10m/min
|
0-10m/min
|
|
|
Conveyer belt
|
0-10m/min
|
0-10m/min
|
|
|
Glue capacity
|
4000ml
|
4000ml
|
|
|
Heating power
|
1000w (5-10min)
|
1000w (5-10min)
|
|
|
Overall size
|
130*65*75cm
|
130*65*75cm
|
|
|
Machine weight
|
150kg
|
150kg
|
|
|
our services
|
We can provide you with various custom services
|
|
|
Product details
Control panel, digital display of glue pot temperature, independent switch, easy to operate.
Integrated pressure beam, double rows of pressure wheels, silicone material conveyor belt.
