Marine Battery Ground Bus Bar Terminal Block 12V 48V 150A M8 Screw Stud Automotive Car Boat Power Distribution Block with Cover

Marine Battery Ground Bus Bar Terminal Block 12V 48V 150A M8 Screw Stud Automotive Car Boat Power Distribution Block with Cover

FOB Reference Price: Get Latest Price

≥50 Pieces

US $8.5

≥100 Pieces

US $7

≥1000 Pieces

US $6.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: Bus Bar Distribution Terminal Block

Connector Type:: Screw

Terminal Studs:: 4 x 5/16" (M8)

Max Voltage:: 300V AC, 48V DC

Max Continuous Amperage:: 130A AC, 150A DC

Housing color:: Black/Red

Material of Terminal:: Brass

Feature:: Nylon Plastic Base

Size:: 28mm x 35mm x 150mm

Application:: Distribution Line

Quick Details

Place of Origin:: GUA

Brand Name:: WattBons

Model Number:: WB-4TM8

Product name:: Bus Bar Distribution Terminal Block

Connector Type:: Screw

Terminal Studs:: 4 x 5/16" (M8)

Max Voltage:: 300V AC, 48V DC

Max Continuous Amperage:: 130A AC, 150A DC

Housing color:: Black/Red

Material of Terminal:: Brass

Feature:: Nylon Plastic Base

Size:: 28mm x 35mm x 150mm

Application:: Distribution Line

item	value
Place of Origin	GUA
Brand Name	WattBons
Model Number	WB-4TM8
Number of Contacts	10
Conductor Size	12 - 28 AWG
Type	Power Distribution
Product name	Bus Bar Distribution Terminal Block
Connector Type	Screw
Terminal Studs	4 x 5/16" (M8)
Max Voltage	300V AC, 48V DC
Max Continuous Amperage	130A AC, 150A DC
Housing color	Black/Red
Material of Terminal	Brass
Feature	Nylon Plastic Base
Size	28mm x 35mm x 150mm
Application	Distribution Line

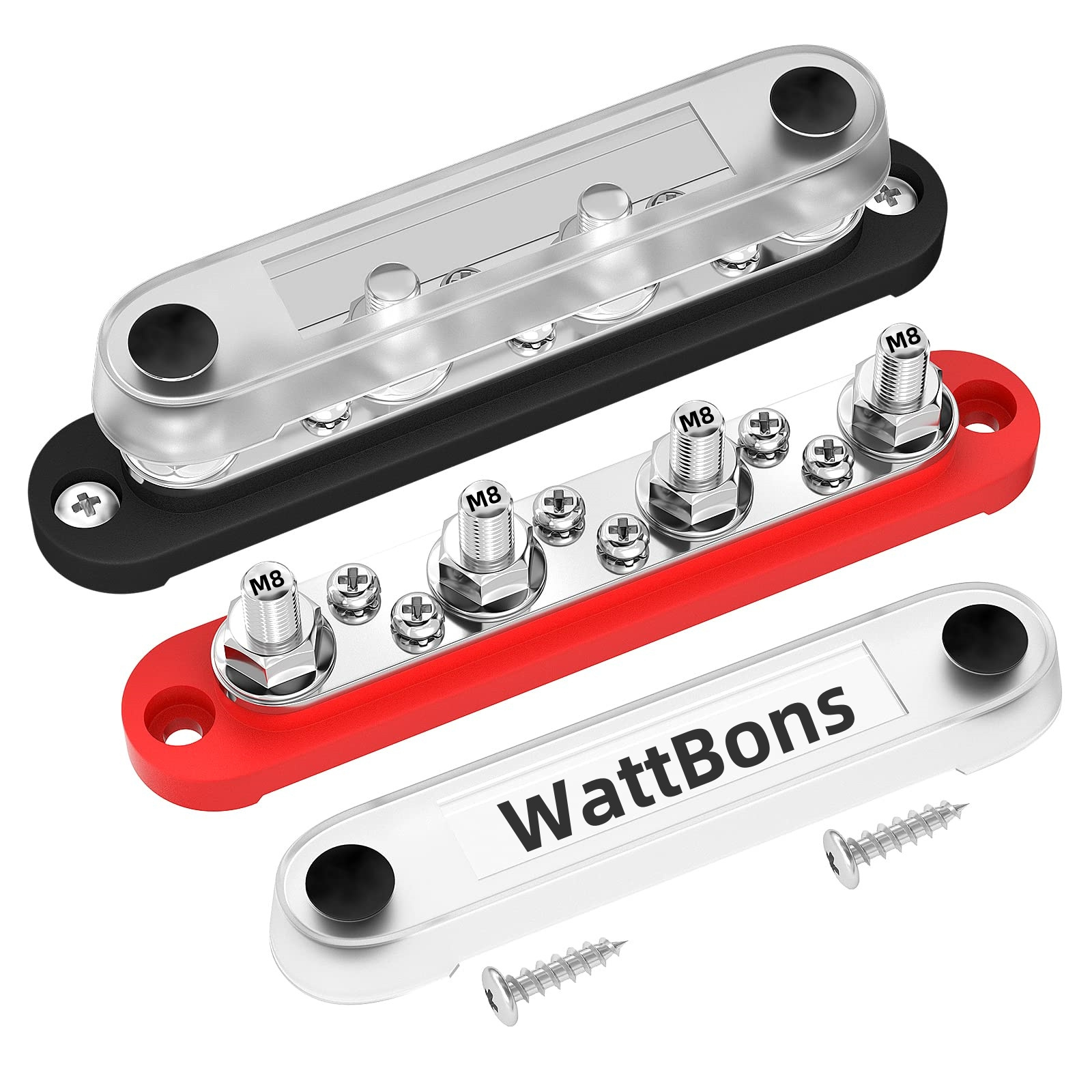

Features: Marine bus bar junction block 12v, these busbars will come in pairs, include one positive bus bar (red one) and one negative bus bar (black one). Rating: Max voltage: 300V AC, 48V DC. Max continuous amperage: 130A AC, 150A DC. This battery distribution block will be suitable for both AC and DC systems.

Terminals : Each battery bus bar 12v includes - M8 (5/16") terminal studs x 4 and M4 (#8) screw terminals x 6, two power bus bars in the package - one positive bus bar and one ground bus bar. With Cover: This 12v power distribution block will come with polycarbonate cover and insulated rubber nuts, which can cover the exposed terminals of the bus bar terminal block and prevent accidental electrical short circuit.

Marine Power Distribution Block Spec:

Terminal Studs: M8 (5/16") * 4

Terminal Srews: M4 (#8) * 6

Max Voltage: 300V AC, 48V DC

Max Continuous Amperage: 130A AC, 150A DC

Package Includes:

1 x Positive Bus Bar or
1 x Negative Bus Bar

4 x Mounting Screws

M8 Studs & M4 Screw

The battery bus bar is

4 x M8 terminal studs and

6 x terminal screw design,

can handle max 300V AC AND 48V DC voltage, max 130A AC
or 150A DC continuous amperage systems.

Cover & Nuts

Each 12v distribution block

will come with polycarbonate cover and insulated rubber nuts, which can cover the exposed terminals and prevent accidental electrical short circuit.

Marine Bus Bar Application

The package includes both positive and ground distribution block, which is easy to use. This bus bar 12v is suitable for both
automotive and marine use, such as car, boat, etc.

Application: This battery terminal block uses copper plates and stainless steel terminals as conductors, which enables the battery distribution block to work in extreme environment, suitable for automotive, car, marine, boat, etc.
