Quick Details
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Roof/Ground Mounting
-
Certificate:
-
CE/TUV/EN50549/PEA/MEA
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Bluesun/Bluesuness
-
Model Number:
-
BSM30KW-ESS
-
Output Voltage (V):
-
380V/400V
-
Output Frequency:
-
50Hz/60Hz
-
Work Time (h):
-
24
-
Solar system type:
-
Solar Power System
-
Keyword:
-
solar system
-
Output wave:
-
Pure Sine Wave Solar System
-
Mounting Support:
-
Pitched / Flat Roof / Ground (1 Set)
-
Technical Support:
-
Design+Installation Guide
-
Protection:
-
Short Circuit.overvoltage Overload
-
Communication:
-
RS485/WiFi (optional)/GPRS (optional)/DRM(Australia)
-
Use life:
-
25 Years
-
Function:
-
Power Support
-
Inverter:
-
Hybrid Inverter
Quick Details
-
Application:
-
Commercial
-
Solar Panel Type:
-
Monocrystalline Silicon, Polycrystalline Silicon
-
Battery Type:
-
Lead-Acid, Lithium Ion
-
Controller Type:
-
MPPT
-
Mounting Type:
-
Roof/Ground Mounting
-
Certificate:
-
CE/TUV/EN50549/PEA/MEA
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Bluesun/Bluesuness
-
Model Number:
-
BSM30KW-ESS
-
Output Voltage (V):
-
380V/400V
-
Output Frequency:
-
50Hz/60Hz
-
Work Time (h):
-
24
-
Solar system type:
-
Solar Power System
-
Keyword:
-
solar system
-
Output wave:
-
Pure Sine Wave Solar System
-
Mounting Support:
-
Pitched / Flat Roof / Ground (1 Set)
-
Technical Support:
-
Design+Installation Guide
-
Protection:
-
Short Circuit.overvoltage Overload
-
Communication:
-
RS485/WiFi (optional)/GPRS (optional)/DRM(Australia)
-
Use life:
-
25 Years
-
Function:
-
Power Support
-
Inverter:
-
Hybrid Inverter
Product Description
|
30KW SYSTEM CONFIGURATION
|
|
|
|
|
||||
|
Number
|
Product name
|
Specification model
|
Unit
|
Quantity
|
||||
|
1
|
Photovoltaic module
|
BSM565M10-72HPH
|
block
|
64
|
||||
|
2
|
Dc combiner box
|
4 input and 4 output
|
piece
|
1
|
||||
|
3
|
Hybrid inverter
|
BSE30KH3
|
piece
|
1
|
||||
|
4
|
Lithium battery
|
51.2V 106Ah(including BMU/ Collecting harness/power cable)
|
pack
|
10
|
||||
|
5
|
|
High voltage control box
|
piece
|
1
|
||||
|
6
|
|
Battery Rack
|
set
|
1
|
||||
|
7
|
Remote monitoring
|
WiFi monitoring
|
set
|
1
|
||||
|
8
|
PV connector
|
The type of a one-to-one correspondence
|
pair
|
16
|
||||
|
9
|
Photovoltaic cable
|
PV1-F 1*4mm2
|
meter
|
400
|
||||
|
10
|
Support
|
Support for 64 photovoltaic modules
|
set
|
1
|
||||
|
|
|
|
|
|||||

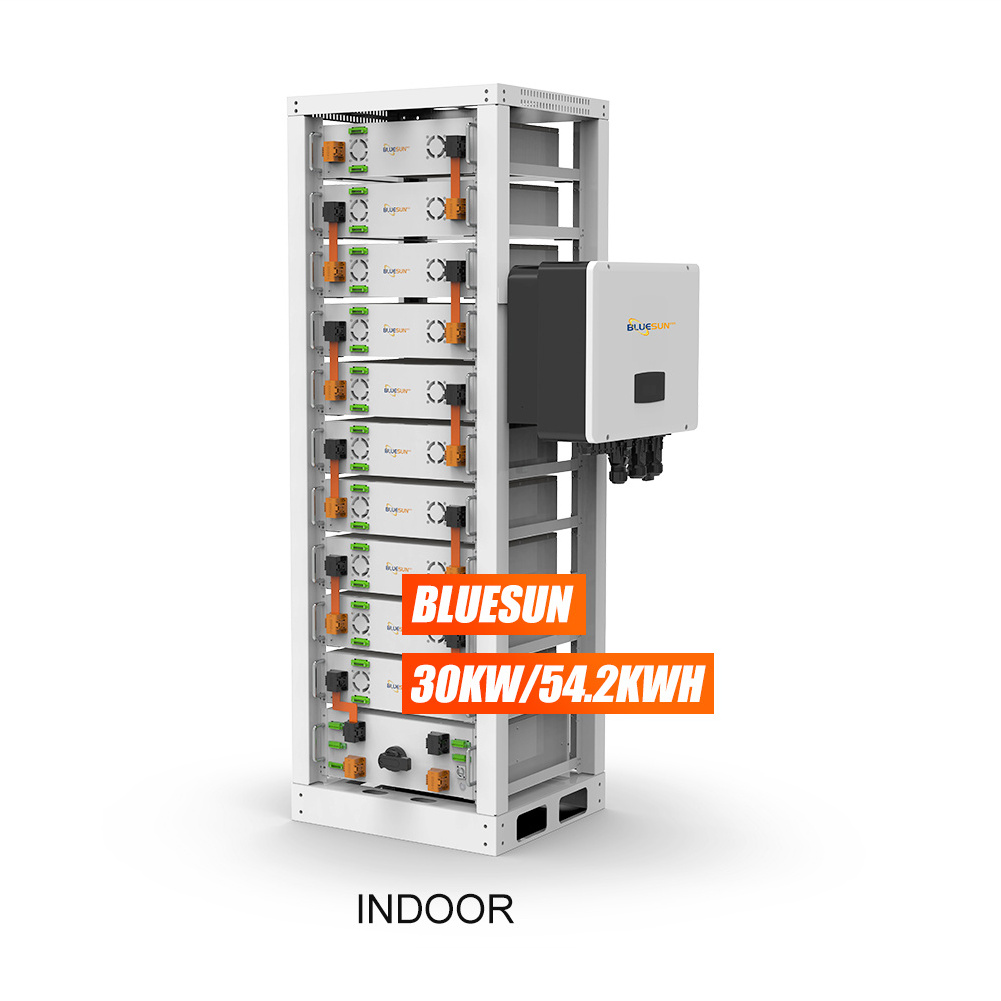

30KW/54.2KWH Energy Storage System
|
Model
|
BSE30KH3-54KWH
|
|
SYSTEM PARAMETER
|
|
|
Rated output power
|
30KW
|
|
System capacity
|
54.2KWH
|
|
Battery type
|
LIFEPO4
|
|
Class of protection
|
IP32/IP56(outdoor)
|
|
Quality guarantee
|
5 years
|
|
INVERTER TECHNICAL PARAMETERS
|
|
|
Model number
|
BSE30KH3
|
|
Maximum photovoltaic input power
|
45KW
|
|
Maximum photovoltaic input current
|
40*2A
|
|
Maximum photovoltaic input voltage
|
1000V
|
|
Number of MPPT/number of strings per route
|
2/4
|
|
MPPT voltage range
|
150-1000V
|
|
Maximum photovoltaic short circuit current
|
60*2A
|
|
Maximum charge and discharge current
|
60A
|
|
Maximum charge and discharge power
|
30kw
|
|
Rated grid frequency
|
50/60Hz
|
|
Rated output voltage
|
230/400V
|
|
Phase number
|
3
|
|
Backup power supply
|
30KW
|
|
Communication mode
|
Wi-Fi/GPRS/4G
|
|
Starting voltage
|
150V
|
|
Humidness
|
0-100%
|
|
Dimensions (HxWxD)
|
558*535*260 mm
|
|
Weight
|
36kg
|
|
BATTERY TECHNICAL PARAMETERS
|
|
|
Battery module model
|
51.2V 106AH
|
|
Module capacity
|
5.4KWH
|
|
Available capacity
|
4.86KWH
|
|
Discharge depth
|
90%
|
|
Rated voltage
|
512V
|
|
Maximum charge and discharge current
|
100A
|
|
Operating temperature range
|
0~55/-10~55(outdoor)
|
|
Cycle number
|
>6000
|
Project & Technical Service Team
UK
GHANA
LEBANON
MONGOLIA
Bluesun Technical Service Team
Bluesun Factory
Global Exhibitions
Payment
|
Payment Term
|
T/T
|
EXW
|
30% T/T in advance, paid the balance before shipment
|
||
|
|
|
FOB
|
|
||
|
|
|
CNF
|
30% T/T in advance, paid the balance against copy of B/L
|
||
|
|
|
CIF
|
|
||
|
|
L/C
|
L/C amount above 50,000 usd, we can accept L/C at sight
|
|
||
|
|
West Union
|
Amount lower than 5000usd
|
|
||
|
Delivery Time
|
7~10days after receiving payment for one container
|
|
|
||
We welcome use Trade Assurance, you'll enjoy:
100% product quality protection
100% product quality protection
100% on-time shipment protection
100% payment protection for your covered amount
