Quick Details
-
Ice storage capacity:
-
50kg, Dry Ice Co2 Pellets Making Machine
-
Place of Origin:
-
Henan, China (Mainland)
-
Brand Name:
-
HENTO
-
Dimension(L*W*H):
-
1000*500*1000mm
-
Weight:
-
190 KG
-
Application:
-
Industrial / Commercial
-
Product name:
-
Dry Ice Co2 Pellets Making Machine
-
Origin:
-
Henan,China (Mainland)
-
Model:
-
HT-GBJ50
-
Dry ice size:
-
Diameter: 3mm ,16mm
-
Capacity of dry ice:
-
50kg/h
-
Dry Ice Density:
-
≥1.50t/m³
-
Liquid enter pressure (Mpa):
-
≤2.1Mpa
-
Liquid Inlet diameter:
-
DN10mm
-
Exhaust pipe diameter:
-
DN 50mm
Quick Details
-
Ice Shape:
-
dry ice
-
Voltage:
-
380V/3phase
-
Power:
-
2200w, 2.2kw
-
Ice storage capacity:
-
50kg, Dry Ice Co2 Pellets Making Machine
-
Place of Origin:
-
Henan, China (Mainland)
-
Brand Name:
-
HENTO
-
Dimension(L*W*H):
-
1000*500*1000mm
-
Weight:
-
190 KG
-
Application:
-
Industrial / Commercial
-
Product name:
-
Dry Ice Co2 Pellets Making Machine
-
Origin:
-
Henan,China (Mainland)
-
Model:
-
HT-GBJ50
-
Dry ice size:
-
Diameter: 3mm ,16mm
-
Capacity of dry ice:
-
50kg/h
-
Dry Ice Density:
-
≥1.50t/m³
-
Liquid enter pressure (Mpa):
-
≤2.1Mpa
-
Liquid Inlet diameter:
-
DN10mm
-
Exhaust pipe diameter:
-
DN 50mm

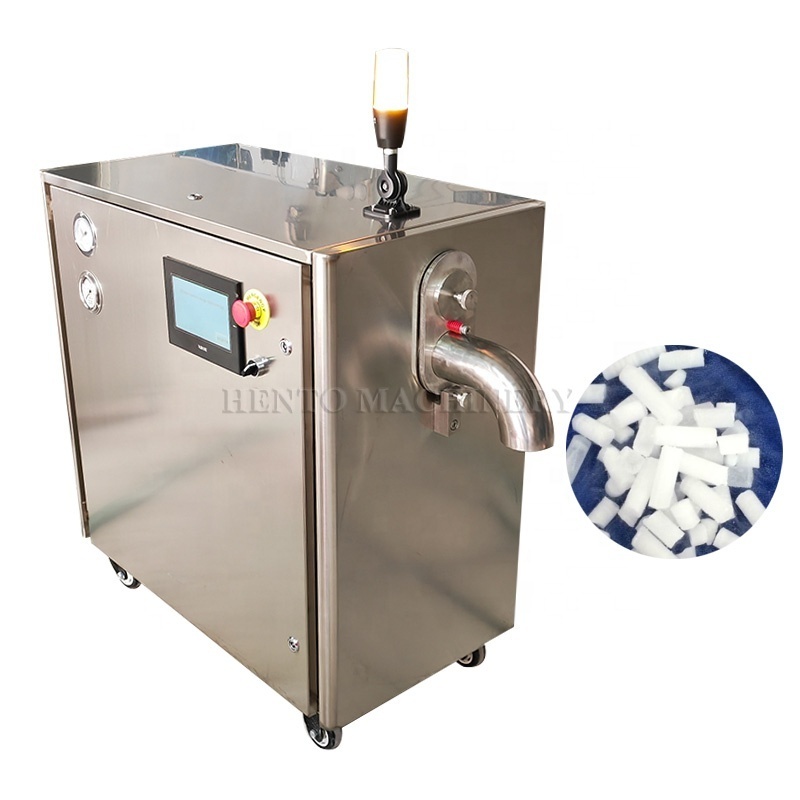

China Manufacturer Dry Ice Pelletizer Maker / Dry Ice Making Machine / Dry Ice Co2 Pellets Making Machine
This is an energy-saving, safe, and mobile ice maker; extremely high mechanical manufacturing accuracy, equipped with advanced control systems, software and high-precision measurement make this series of granular dry ice machines widely used in dry ice cleaning, low temperature preservation and cold storage Chain transportation, smoke effect, laboratory and other industries. This machine is a fully automatic production equipment, one-button start, can complete all function control, greatly improve production efficiency and save production costs.
1.This Commercial Dry Ice Making Machine is made of stainless steel, durable in use.
2.The dry ice production of dry ice making machine is mainly suitable for dry ice cleaning, preservation and transportation at low temperature, stage fog etc.
3.Fully automatic control of oil temperature and dry ice snowing process guarantees continuous dry ice production without any supervision right from push button start.
4. PLC Omron - controls the complete process, injection and hydraulic Independent performance - very constant production, independent of pressure and temperature.
5. Integrated production control system- definition and supervision of production quantity.
6. High process reliability - optimized process monitoring provides optimal performance and increases process reliability .
7. Easy maintenance - simple structure and easy replacement of spare parts makes maintenance work simple for even new users.
8. Minimum floor space for high production performance.
.
|
Model |
HT-GBJ50 |
HT-GBJ1 00 |
HT-GBJ150 |
HT-GBJ 200 |
HT-GBJ 300 |
|
Power |
2.2kw |
5.5kw |
7.5 kw |
11kw |
15kw |
|
Dry ice size(mm) |
Φ3,Φ16 |
Φ3,Φ16,Φ19 |
Φ3,Φ16,Φ19 |
Φ3,Φ16,Φ19 |
Φ3,Φ16,Φ19 |
|
Capacity of dry ice |
50kg/h |
10 0kg/h |
150kg/h |
180-200kg/h |
270-300kg/h |
|
Dry Ice D ensity |
≥1.5 0t/m³ |
≥1.5 0t/m³ |
≥1.5 0t/m³ |
≥1.5 0t/m³ |
≥1.5 0t/m³ |
|
CO2 conversion rate |
≥ 38 % |
≥ 38 % |
≥42% |
≥42% |
≥42% |
|
Liquid enter pressure (Mpa) |
≤2.1Mpa |
≤2.1Mpa |
≤2.1Mpa |
≤2.1Mpa |
≤2.1Mpa |
|
Liquid Inlet diameter |
DN10mm |
DN10mm |
DN10mm |
DN 2 0mm |
DN 2 0mm |
|
Exhaust pipe diameter |
DN 50mm |
DN 50mm |
DN 50mm |
DN 70 mm |
DN 70 mm |
|
Fuel Tankage |
90L |
180L |
180L |
280L |
280L |
|
Weight |
190 KG |
350 KG |
600KG |
1300KG |
1700KG |
|
Dimension |
100 0 *50 0 *100 0mm |
1 250 * 600 * 1350m m |
132 0 *63 0 *150 0m m |
2700*1100 *1800mm |
2700*1500 *1800mm |
=
If you need further information, please contact us freely, we will do our best to cooperate with you .
