- Product Details
- {{item.text}}
Quick Details
-
Power:
-
0.8KW
-
Min. Lifting Height:
-
110 mm
-
Table Size:
-
2100*830 mm
-
Overall Dimensions:
-
2250*950*1100 mm
-
Weight:
-
800 kg
-
Voltage:
-
220/380V 50/60hz
-
Color:
-
Customers' Requirements
-
Product name:
-
Hydraulic Scissor Lift
-
Application:
-
Widely
-
Material:
-
High Strength Steel
-
Feature:
-
Easy Operation Safety Convenience
-
Control:
-
Control Panel
-
Lift Drive:
-
Hydraclic
-
Lifting speed:
-
4-6m/min
-
Power source:
-
DC AC
-
Certification:
-
CE ISO
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
PLK LIFT
-
Power:
-
0.8KW
-
Min. Lifting Height:
-
110 mm
-
Table Size:
-
2100*830 mm
-
Overall Dimensions:
-
2250*950*1100 mm
-
Weight:
-
800 kg
-
Voltage:
-
220/380V 50/60hz
-
Color:
-
Customers' Requirements
-
Product name:
-
Hydraulic Scissor Lift
-
Application:
-
Widely
-
Material:
-
High Strength Steel
-
Feature:
-
Easy Operation Safety Convenience
-
Control:
-
Control Panel
-
Lift Drive:
-
Hydraclic
-
Lifting speed:
-
4-6m/min
-
Power source:
-
DC AC
-
Certification:
-
CE ISO

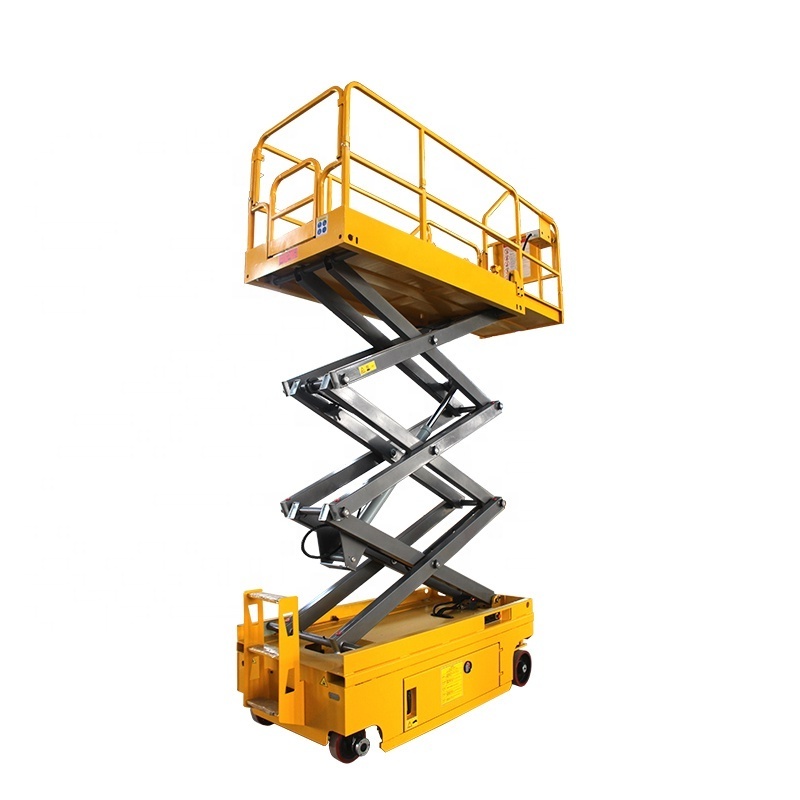

Semi electric scissor lift is moved by manual or tractor towed,and lifting by AC power or DC(battery) power.
Data-Sheet:
|
Model No. |
Table Size
|
Platform Height (m) |
Working Height (m) |
Retract Height (m) |
Voltage (V) |
Overall size
|
N.W.(kg) |
|
500KG Loading Capacity |
|||||||
|
SJY0506 |
2100*830 |
6 |
8 |
1.2 |
1 or 3phase |
2250*950*1200 |
880 |
|
SJY0507 |
2100*830 |
7 |
9 |
1.28 |
1 or 3phase |
2250*950*1280 |
970 |
|
SJY0508 |
2100*930 |
8 |
10 |
1.38 |
1 or 3phase |
2250*1060*1380 |
1050 |
|
SJY0509 |
2100*930 |
9 |
11 |
1.5 |
1 or 3phase |
2250*1060*1500 |
1165 |
|
SJY0510 |
2100*1230 |
10 |
12 |
1.53 |
1 or 3phase |
2250*1350*1530 |
1360 |
|
SJY0511 |
2100*1230 |
11 |
13 |
1.65 |
1 or 3phase |
2250*1350*1650 |
1400 |
|
SJY0512 |
2550*1530 |
12 |
14 |
1.75 |
1 or 3phase |
2796*1670*1750 |
2260 |
|
SJY0514 |
2812*1530 |
14 |
16 |
1.81 |
1 or 3phase |
3067*1730*1810 |
2400 |
|
SJY0516 |
2812*1600 |
16 |
18 |
2.08 |
1 or 3phase |
3067*1800*2080 |
3500 |
|
SJY0518 |
3070*1600 |
18 |
20 |
2.08 |
1 or 3phase |
3321*1810*2080 |
3900 |
|
1000KG Loading Capacity |
|||||||
|
SJY1004 |
2100*1200 |
4 |
6 |
1.18 |
3phase |
2250*1350*1180 |
1250 |
|
SJY1006 |
2100*1200 |
6 |
8 |
1.3 |
3phase |
2200*1350*1300 |
1400 |
|
SJY1008 |
2100*1200 |
8 |
10 |
1.42 |
3phase |
2200*1350*1420 |
1585 |
|
SJY1010 |
2100*1200 |
10 |
12 |
1.53 |
3phase |
2200*1350*1530 |
1700 |
|
SJY1012 |
2550*1530 |
12 |
14 |
1.75 |
3phase |
2796*1670*1750 |
2560 |
|
SJY1014 |
2812*1530 |
14 |
16 |
1.81 |
3phase |
3067*1750*1810 |
2765 |
|
SJY1506 |
2100*1530 |
6 |
8 |
1.53 |
3phase |
2250*1750*1530 |
1780 |
|
SJY1508 |
2100*1530 |
8 |
10 |
1.69 |
3phase |
2250*1750*1690 |
2070 |
|
SJY1510 |
2100*1530 |
10 |
12 |
1.85 |
3phase |
2250*1750*1850 |
2250 |
|
SJY1512 |
2550*1530 |
12 |
14 |
1.85 |
3phase |
2250*1762*1850 |
2900 |
|
SJY1514 |
2816*1600 |
14 |
16 |
1.96 |
3phase |
3045*1852*1960 |
3400 |
|
2000KG Loading Capacity |
|||||||
|
SJY2006 |
2100*1530 |
6 |
8 |
1.53 |
3phase |
2250*1750*1530 |
1780 |
|
SJY2008 |
2100*1530 |
8 |
10 |
1.69 |
3phase |
2250*1750*1690 |
2070 |
|
SJY2010 |
2100*1530 |
10 |
12 |
1.85 |
3phase |
2250*1750*1850 |
2250 |
|
SJY2012 |
2550*1600 |
12 |
14 |
1.954 |
3phase |
2796*1852*1954 |
3200 |
|
SJY2014 |
2816*1600 |
14 |
16 |
2.23 |
3phase |
3067*1852*2230 |
3900 |
