Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
UNI DISPLAY
-
Resolution:
-
800x480
-
Display Mode:
-
Normally Black
-
Active Area:
-
95.04x53.86 (mm)
-
Outline Dimension:
-
105.5x67.2x4.6 (mm)
-
Viewing Angle:
-
80/80/80/80
-
Brightness:
-
350nits
-
Interface:
-
RGB 24bits
-
Operating Temperature:
-
-20℃~+70℃
Quick Details
-
Type:
-
Lcm
-
Display Size:
-
4.3 inch
-
Supplier Type:
-
Factory
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
UNI DISPLAY
-
Resolution:
-
800x480
-
Display Mode:
-
Normally Black
-
Active Area:
-
95.04x53.86 (mm)
-
Outline Dimension:
-
105.5x67.2x4.6 (mm)
-
Viewing Angle:
-
80/80/80/80
-
Brightness:
-
350nits
-
Interface:
-
RGB 24bits
-
Operating Temperature:
-
-20℃~+70℃

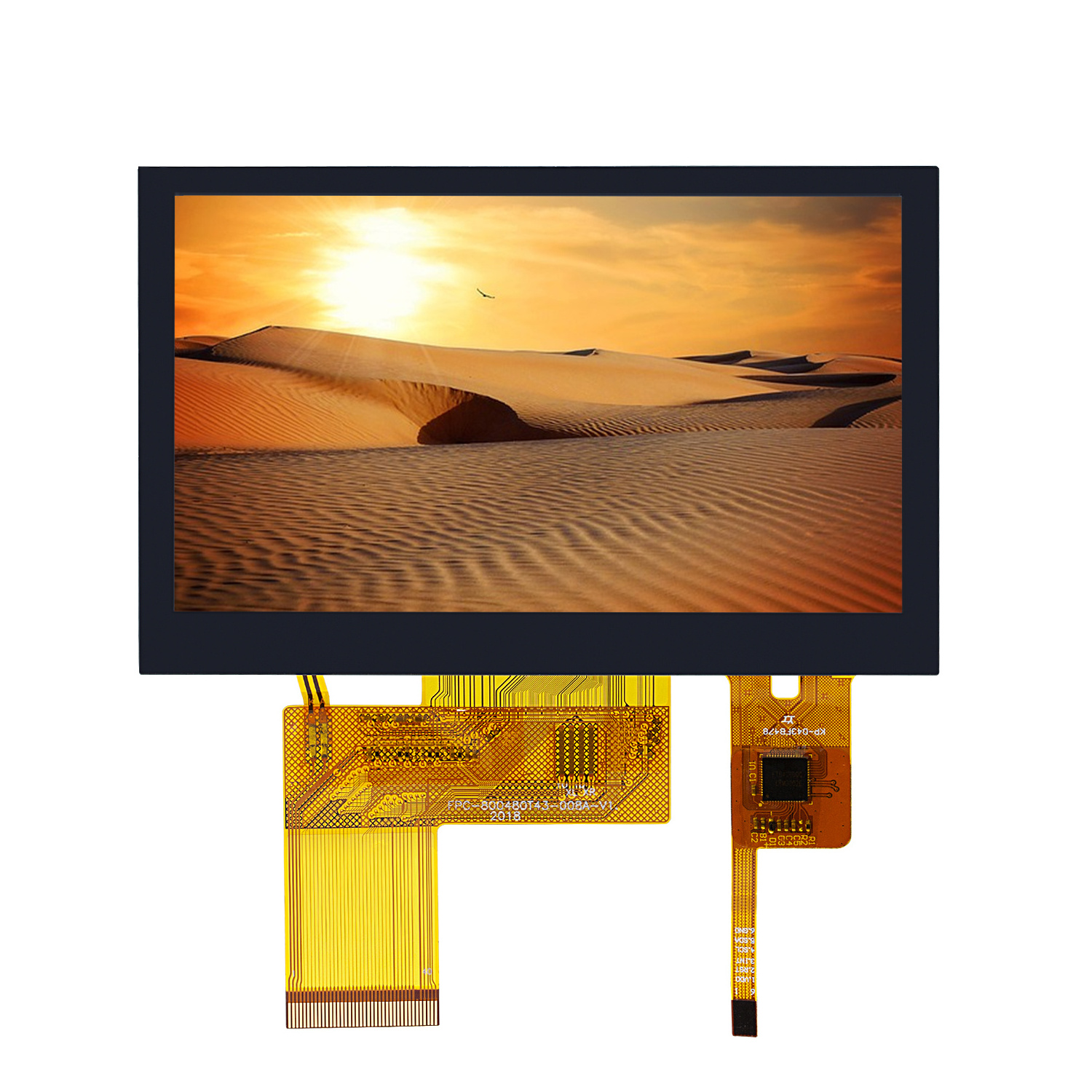

800x480 4.3 inch Touch screen ips tft lcd 4.3'' 10 LEDs with 300 brightness display module for Industrial Control meters
Product Paramenters
|
Size
|
LCD type
|
Display Mode
|
Pixel Number
|
Pixel Pitch （mm）
|
||||
|
4.3"
|
IPS
|
Normally BLACK
|
800 (RGB)×480
|
0.1188(W)×0.1122(H)
|
||||
|
|
|
|
|
|
||||
|
Active Area（mm）
|
|
Dimensional Outline （mm）
|
|
Interface
|
||||
|
95.04(W)×53.86(H)
|
|
105.5(W)×67.2(H)×3.0(T)
|
|
LVDS 6/8 bit
|
||||
|
|
|
|
|
|
||||
|
Brightness （cd/m2)
|
|
PIN
|
LED Life Time（Hrs）
|
Backlight （LEDs）
|
||||
|
350
|
|
40
|
20,000
|
10
|
||||
|
|
|
|
|
|
||||
|
Operating Temperature（℃）
|
|
|
Storage Temperature（℃）
|
|
||||
|
-30 ~ +85
|
|
|
-30 ~ +85
|
|
||||
