- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Kosma, Kosma
-
Fliter Media:
-
hydrophilic PVDFMembrane
-
Cage/Adapter:
-
DOE, Code 7, Code 8, 226, 222
-
Outer Diameter/Inner Diameter:
-
69 mm (2.75") / 33 mm (1.30")
-
Certificate:
-
ISO9001/EC
-
Micron Rating:
-
0.1, 0.2, 0.45, 0.65, 1.0, 3.0, 5.0 um
-
Filtration area:
-
0.65 m2 per 10"
-
Feature1:
-
High filtration efficiency,long service life
-
Feature2:
-
Low extractable levels, no fiber releasing
-
Application:
-
Mineral water, purified water,ozone,strong oxidizing liquid
Quick Details
-
Weight (KG):
-
10
-
Core Components:
-
PVDF filter element
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Kosma, Kosma
-
Fliter Media:
-
hydrophilic PVDFMembrane
-
Cage/Adapter:
-
DOE, Code 7, Code 8, 226, 222
-
Outer Diameter/Inner Diameter:
-
69 mm (2.75") / 33 mm (1.30")
-
Certificate:
-
ISO9001/EC
-
Micron Rating:
-
0.1, 0.2, 0.45, 0.65, 1.0, 3.0, 5.0 um
-
Filtration area:
-
0.65 m2 per 10"
-
Feature1:
-
High filtration efficiency,long service life
-
Feature2:
-
Low extractable levels, no fiber releasing
-
Application:
-
Mineral water, purified water,ozone,strong oxidizing liquid

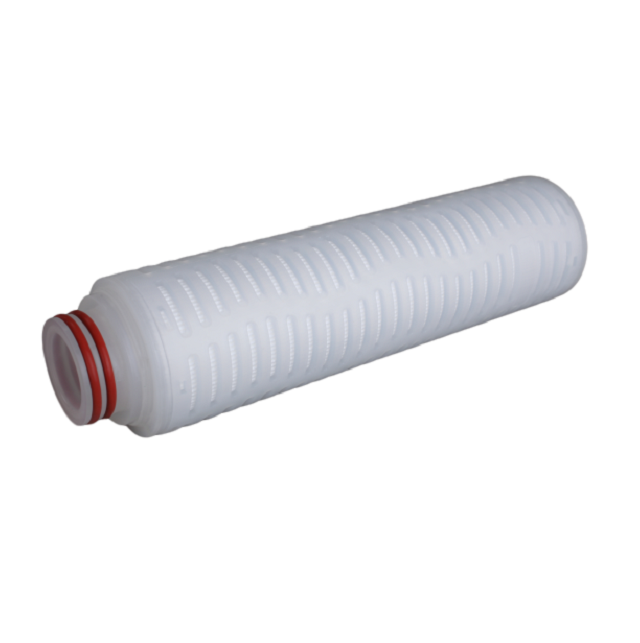

High quality 0.1 micron 5/10/20/30/40 inch hydrophilic PVDF membrane cartridge water filter with good price
Specification
|
Materials of Construction |
Filter Media: | Hydrophilic PTFE Membrane |
| Support Layers: | Polypropylene | |
| Micron Ratings: | 0.1,0.2,0.45,0.65,1.0,3.0 | |
| innerr core: | Reinforced Polypropylene | |
| Cage,Endcap: | Reinforced Polypropylene | |
| Seal Method: | Thermal bonded, no adhesive | |
| O-rings/Gaskets: | Silicone,Nitrile,Viton, EPDM etc. | |
|
Dimensions |
OD: | 69mm (2.75") |
| ID: | 33mm (1.30") | |
| Length(base on DOE): | 10"-254mm, 20"-508mm, 30"-752mm, 40"-1016mm | |
| Filtration Area(M 2 ) | 0.65m 2 per 10" | |
|
Operation Conditions |
Normal Operation Temperature: | Up to 65℃ (149℉) |
| Max Operation Temperature: | 90℃ (194℉) @ ΔP ≤ 1.0Bar (14PSI) | |
| Normal Flow Direction: | 4.2Bar (60PSI) @ 25℃ (77℉) | |
| Reverse Flow Direction: | 2.1Bar (30PSI) @ 25℃ (77℉) | |
| Ph Value Compatiblity: | 1-13 | |
| Sterilization: |
steam sterilization for 30mins at 121℃ (250℉) /Cumulative time: 50 hours /autoclave 30minutes (optional)
|
|
|
Material Safety |
Endotoxin: | <0.25EU/ml |
| Extractables: | 0.03g/10" |
Features and Benefits
- Hydrophilic PTFE membrane suit for liquid sterile filtration, no prewetting;
- High filtration efficiency, ≥99.99% , long service life;
- Uniform pore-size distribution allow high flow rate;
- Superior chemical compatibility, ideal for strong alkali and acids, resistant to high temperature, ozone;
- Low extractable levels, no fiber releasing;
Applications
- Mineral water, purified water,ozone,strong oxidizing liquid filtration;
- High temperature liquids filtratio;
- Strong alkali, acids, corrosive liquids filtration;
