Quick Details
-
Voltage:
-
220V/380V/440V
-
Power:
-
2.2 kw
-
Dimension(L*W*H):
-
1.68*0.94*1.05m
-
Weight (KG):
-
1380
-
Advantage:
-
High Effciency
-
After-sales Service Provided:
-
Video Support
-
Package:
-
Wooden Case
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
AISEN
-
Machine Type:
-
cold heading machine
-
Voltage:
-
220V/380V/440V
-
Power:
-
2.2 kw
-
Dimension(L*W*H):
-
1.68*0.94*1.05m
-
Weight (KG):
-
1380
-
Advantage:
-
High Effciency
-
After-sales Service Provided:
-
Video Support
-
Package:
-
Wooden Case
Product Overview

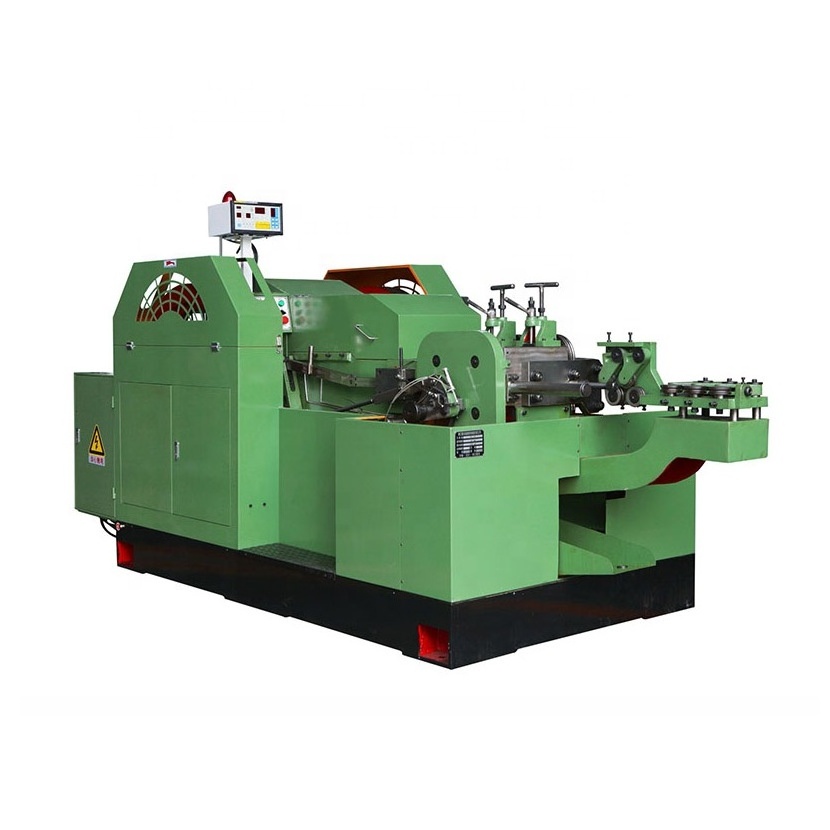

SH Series high speed cold header
This model is widely praised for its rational price, easy maintenance and high quality.
PRODUCT SPECIFICATIONS
|
Model
|
Max. Blank diameter
|
Max. Blank length
|
Stroke
|
Speed
(pcs/min) |
Main die diameter
|
Cut-off die diameter
|
|
SH-5
|
3mm
|
32mm
|
48mm
|
135-160
|
20mm
|
13.5mm
|
|
SH-5A
|
3mm
|
22mm
|
48mm
|
100-120
|
20mm
|
13.5mm
|
|
SH-5G
|
3mm
|
30mm
|
50mm
|
135-230
|
20mm
|
13.5mm
|
|
SH-10B
|
4mm
|
40mm
|
62mm
|
160-180
|
30mm
|
15mm
|
|
SH-10G
|
4mm
|
40mm
|
72mm
|
140-200
|
30mm
|
15mm
|
|
SH-15
|
5mm
|
50mm
|
81mm
|
140-160
|
34.5mm
|
19mm
|
|
SH-15A
|
5mm
|
70mm
|
102mm
|
70-100
|
34.5mm
|
19mm
|
|
SH-15B
|
5mm
|
65mm
|
102mm
|
140-160
|
34.5mm
|
19mm
|
|
SH-15G
|
5mm
|
70mm
|
115mm
|
140-160
|
34.5mm
|
19mm
|
|
SH-20
|
6mm
|
80mm
|
124mm
|
100
|
45mm
|
25mm
|
|
SH-20A
|
6mm
|
70mm
|
136mm
|
60-75
|
45mm
|
25mm
|
|
SH-20B
|
6mm
|
100mm
|
136mm
|
80
|
45mm
|
25mm
|
|
SH-24
|
8mm
|
100mm
|
140mm
|
80
|
48mm
|
25mm
|
|
Model
|
Punch die(1st)
|
Punch die(2nd)
|
Power
|
Weight
|
Size
|
|
|
SH-5
|
18mm
|
18mm
|
1.1kw
|
700kg
|
1.3*0.75*1.06 m
|
|
|
SH-5A
|
18mm
|
18mm
|
1.1kw
|
750kg
|
1.65*0.78*0.85m
|
|
|
SH-5G
|
18mm
|
18mm
|
1.5kw
|
900kg
|
1.6*0.84*1m
|
|
|
SH-10B
|
25mm
|
25mm
|
2.2kw
|
1380kg
|
1.68*0.94*1.05m
|
|
|
SH-10G
|
25mm
|
25mm
|
2.2kw
|
1450kg
|
1.68*0.94*1.05m
|
|
|
SH-15
|
31mm
|
31mm
|
3kw
|
1700kg
|
2.1*1.1*1.2m
|
|
|
SH-15A
|
31mm
|
31mm
|
3kw
|
1850kg
|
2.4*0.95*1.15m
|
|
|
SH-15B
|
31mm
|
31mm
|
3kw
|
1800kg
|
2.08*1.06*1.12m
|
|
|
SH-15G
|
34mm
|
31mm
|
4kw
|
1900kg
|
2.21*1.09*1.19m
|
|
|
SH-20
|
36mm
|
36mm
|
4kw
|
2500kg
|
2.8*1.15*1.27m
|
|
|
SH-20A
|
36mm
|
36mm
|
4kw
|
2500kg
|
3.02*1.05*1.22m
|
|
|
SH-20B
|
36mm
|
36mm
|
4kw
|
2600kg
|
3.05*1.18*1.3m
|
|
|
SH-24
|
38mm
|
38mm
|
5.5kw
|
3200kg
|
3.3*1.2*1.43m
|
|
|
Model
|
Max. Blank diameter
|
Max. Blank length
|
Stroke
|
Speed
(pcs/min) |
Main die diameter
|
Cut-off die diameter
|
|
SH-24B
|
8mm
|
120mm
|
170mm
|
80
|
48mm
|
25mm
|
|
SH-25
|
10mm
|
150mm
|
220mm
|
60
|
55mm
|
28mm
|
|
SH-30
|
11mm
|
150mm
|
330mm
|
60
|
80mm
|
35mm
|
|
|
|
|
|
|
|
|
|
Model
|
Punch die(1st)
|
Punch die(2nd)
|
Power
|
Weight
|
Size
|
|
|
SH-24B
|
38mm
|
38mm
|
5.5kw
|
3300kg
|
3.27*1.2*1.34m
|
|
|
SH-25
|
38mm
|
38mm
|
7.5kw
|
6800kg
|
4.45*1.74*1.51m
|
|
|
SH-30
|
56mm
|
48mm
|
15kw
|
8200kg
|
4.55*16.5*1.54m
|
|
|
|
|
|
|
|
|
|
