Quick Details
-
Brand Name:
-
SILANDE
-
Model Number:
-
MF881
-
Type:
-
Silicone weather-resistant sealant, Silicone weatherproof sealant
-
Product name:
-
MF881 Two Component Silicone Structural Sealant
-
Application:
-
Sealing Construction
-
Material:
-
100% Silicone
-
Application range:
-
glass assembly, curtain wall and building exterior wall design
-
Certificate:
-
IFT,TUV,IGMA/IGCC
-
Volume:
-
Com A 190L/drum Com A 25kg/pail
-
Color:
-
Black/Grey/White
-
Shelf life:
-
12 months
-
Packing:
-
Com B 19L/pail Com B 300ml/cartridge x 7 pcs.
Quick Details
-
CAS No.:
-
85-22-3
-
Other Names:
-
Silicone weather-resistant sealant
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SILANDE
-
Model Number:
-
MF881
-
Type:
-
Silicone weather-resistant sealant, Silicone weatherproof sealant
-
Product name:
-
MF881 Two Component Silicone Structural Sealant
-
Application:
-
Sealing Construction
-
Material:
-
100% Silicone
-
Application range:
-
glass assembly, curtain wall and building exterior wall design
-
Certificate:
-
IFT,TUV,IGMA/IGCC
-
Volume:
-
Com A 190L/drum Com A 25kg/pail
-
Color:
-
Black/Grey/White
-
Shelf life:
-
12 months
-
Packing:
-
Com B 19L/pail Com B 300ml/cartridge x 7 pcs.
Product Description
MF881 is a two-component neutral cured silicone sealant specifically developed for the manufacturing of high performance insulating glass units used in residential and commercial use of curtain wall systems and used in structural glazing applications such as factory glazing of curtain wall units and modules for unitized and panelized systems.
Specification
|
TEST ITEMS
|
|
MEASURED VALUE
|
||
|
Base
|
Appearance
|
White / Grey Ropy Paste
|
||
|
(Com A)
|
Viscosity
|
170,000 mPa.S
|
||
|
Catalyst
|
Appearance
|
Black / White Ropy Paste
|
||
|
(Com B)
|
Viscosity
|
80,000 mPa.S
|
||
|
As mixed
|
|
|
||
|
|
Appearance
|
Black / White / Grey
|
||
|
Mixture
|
Viscosity
|
340,000 mPa.S
|
||
|
By weight
|
Application Time (23°C, 50%)
|
30-50 mins
|
||
|
(A:B = 14:1)
|
Tack-free Time (23°C, 50%)
|
30-60 mins
|
||
|
|
Placed Vertical (50°C)
|
0
|
||
|
Sag
|
Placed Horizontal
|
No deformation
|
||
|
Hardness
|
Shore A - 24h
|
35
|
||
|
|
Shore A-14 days
|
44
|
||
|
As cured - after 14 days at T 23®C and 50% R.H.
|
|
|
||
|
|
23°C
|
0.97 MPa
|
||
|
|
90°C
|
0.85 MPa
|
||
|
Tensile
|
-30°C
|
1.84 MPa
|
||
|
Adhesion
|
After Water Immersion
|
1.01 MPa
|
||
|
Strength
|
After Water-UV Immersion
|
0.97 MPa
|
||
|
|
Adhesive Failure Area
|
0%
|
||
|
|
23°C Elongation Under Max. Tensile Strength
|
140%
|
||
|
Temperature Resistance
|
|
- 60~180°C
|
||
|
Resistance to UV-Ozone
|
|
Continuous irradiation under water-UV 2500 hrs, No change.
|
||
|
Moisture Vapour Transmission Rate (MVTR)
|
|
17.7 [gr/m2.24hrs.2mm] - EN1279/4
|
||
|
Gas Permeation Rate (Ar)
|
|
755 x 10-3 [gr/m2.hrs] - EN 1279/4
|
||
|
|
|
|
||
Packing & Delivery
Storage and validity
12 months from the date of production below 30°C.

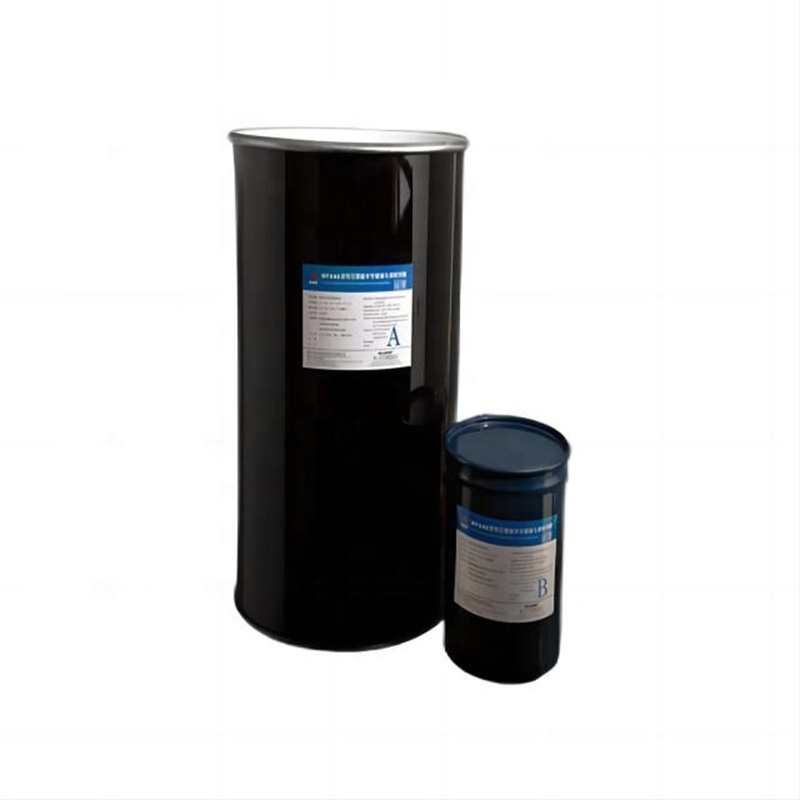

Package
Com A 190L/drum Com A 25kg/pail
Com B 19L/pail Com B 300ml/cartridge x 7 pcs.
Limit
It is important when selecting components for a project that adhesion and compatibility tests are carried out, and found to be successful before the project starts. MF881 adhesion with glass and Alu. spacer must be tested in advance and compatibility of gaskets, backer rods, setting blocks and other accessory materials with MF881 better to be tested in advance.
Regarding facade structural glazing, primer is not usually required when using MF881. However, it is essential that adhesion be tested prior to use.
12 months from the date of production below 30°C.
Package
Com A 190L/drum Com A 25kg/pail
Com B 19L/pail Com B 300ml/cartridge x 7 pcs.
Limit
It is important when selecting components for a project that adhesion and compatibility tests are carried out, and found to be successful before the project starts. MF881 adhesion with glass and Alu. spacer must be tested in advance and compatibility of gaskets, backer rods, setting blocks and other accessory materials with MF881 better to be tested in advance.
Regarding facade structural glazing, primer is not usually required when using MF881. However, it is essential that adhesion be tested prior to use.
Details Images
Colour
Black / Grey / White
Standard
* ASTM C920
* EU Specification: EN1279 - part 2, 4
* China Specification: GB16776 -2005
* IGCC-IGMA Approved.
Black / Grey / White
Standard
* ASTM C920
* EU Specification: EN1279 - part 2, 4
* China Specification: GB16776 -2005
* IGCC-IGMA Approved.
Features and advantages
* Excellent adhesion to a wide range of substrates including coated, enamelled and reflective glasses, anodised and polyester
paint coated aluminium and stainless steel.
* Excellent temperature stability: - 60°C to 180°C.
* High level of mechanical properties.
* High elasticity and high modulus.
* Joint movement: ±25%.
* Resistant to ozone.
* Excellent adhesion to a wide range of substrates including coated, enamelled and reflective glasses, anodised and polyester
paint coated aluminium and stainless steel.
* Excellent temperature stability: - 60°C to 180°C.
* High level of mechanical properties.
* High elasticity and high modulus.
* Joint movement: ±25%.
* Resistant to ozone.
