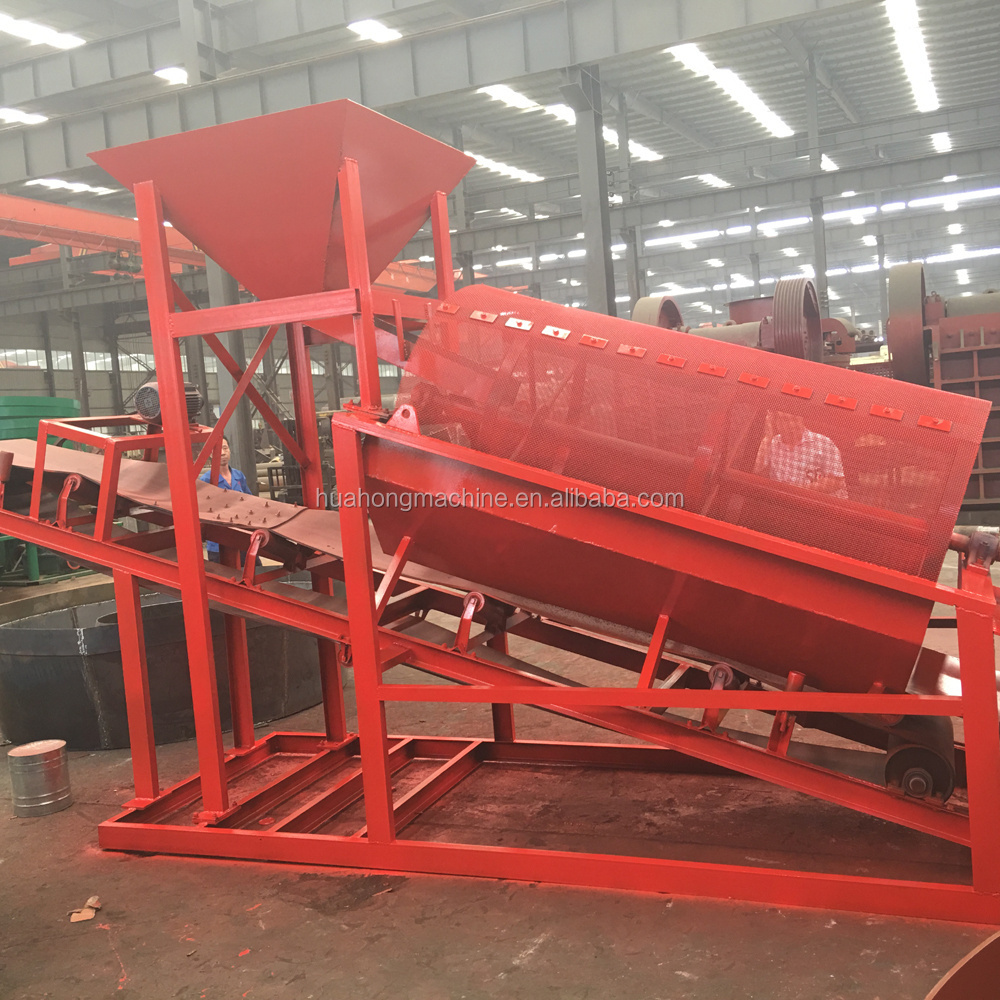

GTS series small rotary trommel drum screen,gold trommel sieve,sand trommel screen

Introduction of Sell wood Sawdust drum sieve rotary drum sieve

Sell wood Sawdust drum sieve rotary drum sieve used to separate materials by size, for example, separating the biodegradable fraction of mixed municipal waste or separating different sizes of mulch or crushed stone. Production rates can vary from 20 to 30 yards an hour to several hundred yards of material an hour based on number of factors described in this article. Drum Sieve is widely used for grading and screening materials in the fields such as coal-selecting, mining-selecting, building materials, electrical power and chemical industry, etc. And we supplies suitable type according to customers’ demands.

Application of Sell wood Sawdust drum sieve rotary drum sieve

1. Size stones classification used in quarry. And isolated mud and stone powder.

2. Used in quarry and sand separation.

3. Used to separate lump coal and pulverized coal and coal washing coal industry (part of coal washing machinery)

4. The chemical industry, mineral processing industry for the size of the block classification and separation of powder material.

Working principle of Sell wood Sawdust drum sieve rotary drum sieve

Roller device tilt installed on the rack. Motor by the reducer with roller device through shaft coupling, drive roller device around its axis of rotation. When the materials enter the cylinder device, due to tilt and turn the drum unit, make the material on the surface of the screen to flip and rolling, the qualified materials (undersize) after roller end at the bottom of the discharging mouth eduction, unqualified material (product) on the screen by the cylinder at the end of the discharging mouth eduction. Due to the flip, rolling material inside the drum, the card in the mesh material can be pop up, prevent the mesh plug. Sand screen drum, drum screen, and the principle of the drum screen is almost the same structure, is people's understanding of it and call it.

Operation and Maintanance of Sell wood Sawdust drum sieve rotary drum sieve

1, First open the cage while driving screen, opens after feeding equipment; stopping the opposite;

2, Run three days before, to cage drum sieve every day check fasteners, if loose fastening in a timely manner. Periodically thereafter (or a week and a half month) cage screen fastener for checking and processing;

3, Housings, transmission should be checked periodically lubricating and fuel and oil in a timely manner. Axis bearings, lithium base grease, under normal circumstances, every two months filling grease, amount raised should not be excessive, otherwise easily cause bearing overheating. Bearings should be cleaned check once a year.

4, The long haul deactivate (more than 30 days) to restart the motor insulation should be shaking when measuring to avoid motor burn.

Main features of Sell wood Sawdust drum sieve rotary drum sieve

1. Low cost, for alluvial gold plant.

2. Includes the washing function and separating function, very high efficiency,pay back very soon.

3. Small Volume,Easy Movable,Support Wheels.

4. Diesel enigne/electric motor available.

5. Easy and convinient operation.

6. Strong body, our engineer has redesigned the frame, use thicker and stronger material for all the part.

7. The size and capacity can be customized.

Main technical parameters of Sell wood Sawdust drum sieve rotary drum sieve
