Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
nakin
-
Model Number:
-
NKLA49
-
Torque:
-
Requests
-
Product Name:
-
IP65 IP66 waterproof micro industry electric linear actuator
-
Dynamic load:
-
2000N
-
stanic load:
-
2000N
-
speed at full load:
-
3mm/s
-
stroke length:
-
50mm-600m
-
limit switch:
-
built-in
-
overload protect:
-
yes
-
duty cycle:
-
10% , max 2min , continuous
-
IP grade:
-
IP65/IP66
-
color:
-
silver
Quick Details
-
Speed(RPM):
-
High Speed
-
Continuous Current(A):
-
Current
-
Efficiency:
-
IE 2
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
nakin
-
Model Number:
-
NKLA49
-
Torque:
-
Requests
-
Product Name:
-
IP65 IP66 waterproof micro industry electric linear actuator
-
Dynamic load:
-
2000N
-
stanic load:
-
2000N
-
speed at full load:
-
3mm/s
-
stroke length:
-
50mm-600m
-
limit switch:
-
built-in
-
overload protect:
-
yes
-
duty cycle:
-
10% , max 2min , continuous
-
IP grade:
-
IP65/IP66
-
color:
-
silver
Product Description

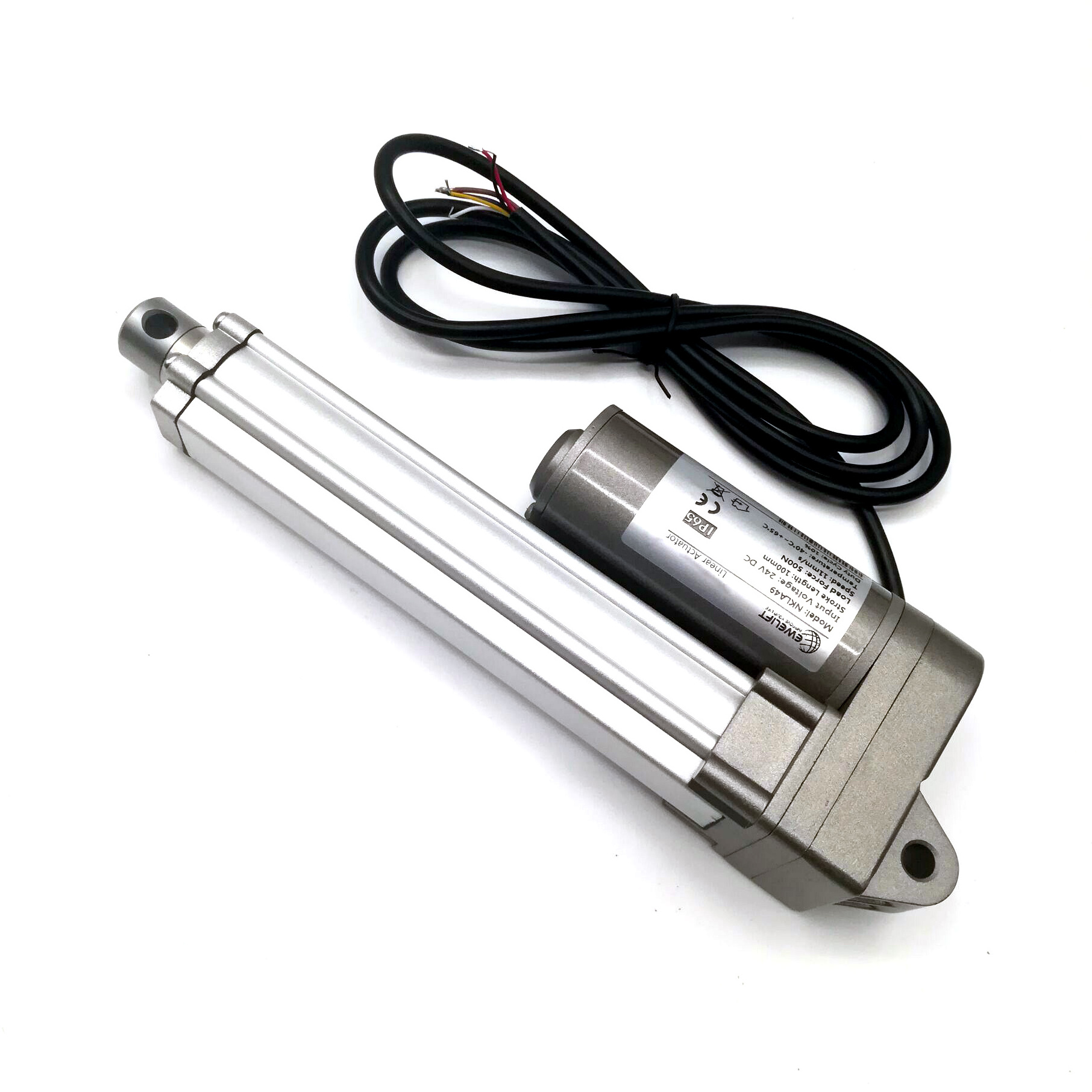

12V 24V 2000N IP65 IP66 waterproof micro industry electric linear actuator
Specification
|
Product Name
|
NAKIN linear actuator NKLA49
|
|
Max Load Force
|
2000N
|
|
Full Load Speed
|
4mm/s
|
|
input voltage
|
12V /24V DC
|
|
Stroke
|
20mm ~ 600mm ( option > 600mm)
|
|
retracted length
|
stroke + 108mm
|
|
Duty cycle
|
10%
|
|
IP degree
|
IP65/IP66
|
Product Application
Linear actuators are widely used in medical bed , patient lift , wheel chair
and smart office height adjustable desk ,
tatami and other electric furniture, and intelligent industries like solar tracker system , snow plow and agricultural machinery.
linear actuator for solar tracker
waterproof linear actuator for industry
tubular linear actuator for skylight
lift column for dental chair
height adjustable desk frame
tatami lifting column
Product Process
Zhejiang Nakin Intelligent Technology Co., Ltd. is specialized in manufacturing linear actuators for 30 years With an experienced and professional team, we have exported our linear actuator , lifting column and height adjustable desk frame to many countries and regions all over the world, especially in Europe and North America .
Certifications
Packing & Delivery
Sample order , small orders send by FEDEX /UPS/TNT/DHL express , it takes about 7 days to arrive .
Big orders send by sea , it takes about 30 days to arrive .
Contact Us
FAQ
Q: May I have a sample order before bulk one?
A: Of course, we can provide a sample for you.
Q: How can I get the quotation?
A: You need to send up information, we will let our sales to contact with you, and the details you should to give: email address, telephone number,
input voltage , Load force , stroke length , retracted length , speed and quantity
.
