Quick Details
-
Model Number:
-
RV-2D
-
Brand Name:
-
RAY-VALVE
-
Certification:
-
CE, ISO9001
Quick Details
-
Port Size:
-
DN6-DN100
-
Warranty:
-
12months
-
Place of Origin:
-
Shandong
-
Model Number:
-
RV-2D
-
Brand Name:
-
RAY-VALVE
-
Certification:
-
CE, ISO9001
Product Description
Specification

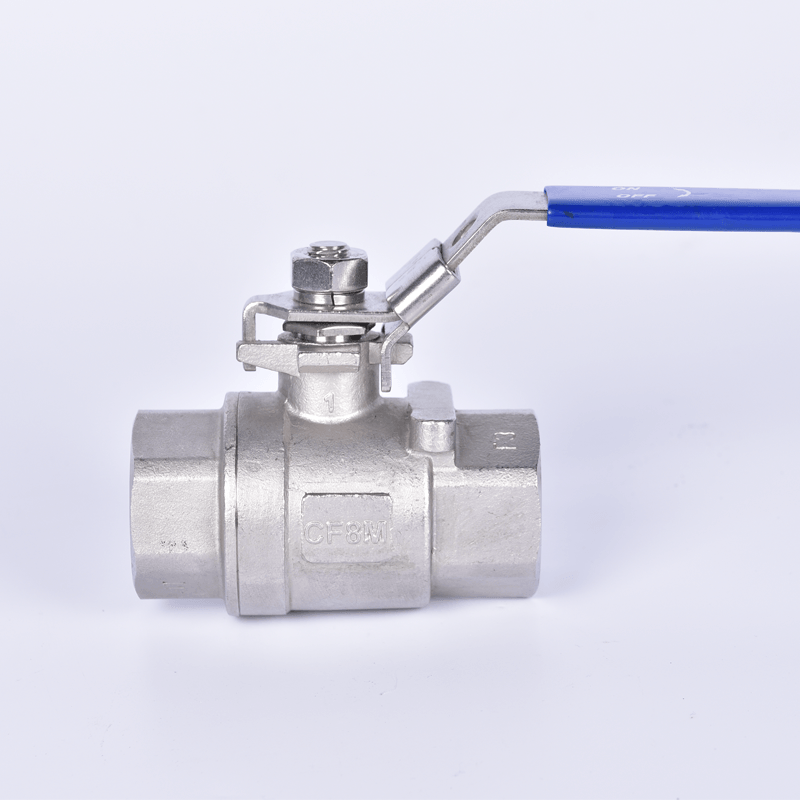

1000WOG 2 way female thread Din Length ball valve with lockable handle
|
Feature:
|
Investment castings for body and Cap
Internal Entry Blow-out Proof Stem
|
|
Pressure:
|
1000psi (PN63)
|
|
Length :
|
DIN3202-M3
|
|
Thread:
|
ANSI B2.1 BS DIN ISO (BSP BSPT NPT G DIN)
|
|
Working Temperature:
|
-20-150 centidegree
|
|
Material:
|
CF8M CF8 WCB CF3M
|
|
Lock device:
|
optional
|
|
Inspection Testing:
|
API598 , EN12266
|
|
Material List
|
PART
|
MATERIAL
|
|
|
|
|||||
|
Item
|
PART
|
MATERIAL
|
|
|
QTY
|
|||||
|
1
|
BODY
|
A216-WCB
|
A351-CF8
|
A351-CF8M
|
1
|
|||||
|
2
|
SEAT
|
PTFE/RPTFE
|
|
|
2
|
|||||
|
3
|
BALL
|
304
|
304
|
316
|
1
|
|||||
|
4
|
GASKET
|
PTFE
|
|
|
1
|
|||||
|
5
|
CAP
|
A216-WCB
|
A351-CF8
|
A351-CF8M
|
1
|
|||||
|
6
|
STEM
|
304
|
304
|
316
|
1
|
|||||
|
7
|
THRUST WASHER
|
PTFE
|
|
|
1
|
|||||
|
8
|
PACKING
|
PTFE
|
|
|
1
|
|||||
|
9
|
GLAND NUT
|
304
|
304
|
304
|
1
|
|||||
|
10
|
HANDLE
|
304
|
304
|
304
|
1
|
|||||
|
11
|
SPRING WASHER
|
304
|
304
|
304
|
1
|
|||||
|
12
|
NUT
|
304
|
304
|
304
|
1
|
|||||
|
13
|
LOCK
|
304
|
304
|
304
|
1
|
|||||
|
14
|
HANDLE COVER
|
PLASTIC
|
|
|
1
|
|||||
|
DIMENSION TABLE
|
|
|
|
|
|
|
|
|||||||
|
SIZE
|
IN
|
φd
|
L
|
H
|
W
|
N.M
|
KGS
|
|||||||
|
DN6
|
1/4"
|
6
|
50
|
50
|
105
|
4
|
0.22
|
|||||||
|
DN10
|
3/8"
|
10
|
60
|
50
|
105
|
4
|
0.20
|
|||||||
|
DN15
|
1/2"
|
15
|
75
|
52
|
105
|
5
|
0.34
|
|||||||
|
DN20
|
3/4"
|
20
|
80
|
57
|
118
|
8
|
0.52
|
|||||||
|
DN25
|
1"
|
25
|
90
|
78
|
150
|
10
|
0.78
|
|||||||
|
DN32
|
1-1/4"
|
32
|
110
|
88
|
150
|
14
|
1.23
|
|||||||
|
DN40
|
1-1/2"
|
40
|
120
|
95
|
182
|
18
|
2.00
|
|||||||
|
DN50
|
2"
|
50
|
140
|
100
|
182
|
25
|
2.98
|
|||||||
|
DN65
|
2-1/2"
|
65
|
185
|
120
|
254
|
48
|
6.05
|
|||||||
|
DN80
|
3"
|
80
|
205
|
130
|
254
|
75
|
9.90
|
|||||||
|
DN100
|
4"
|
100
|
240
|
160
|
285
|
110
|
16.60
|
|||||||
