Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
herolaser
-
Single Pulse Energy:
-
none
-
Pulse Width:
-
none
-
Wavelength:
-
1070nm
-
Focal Spot Diameter:
-
none
-
Dimensions:
-
1050mm*670mm*1200mm
-
Weight (KG):
-
240 KG
-
Core Components:
-
Lasers
-
Product name:
-

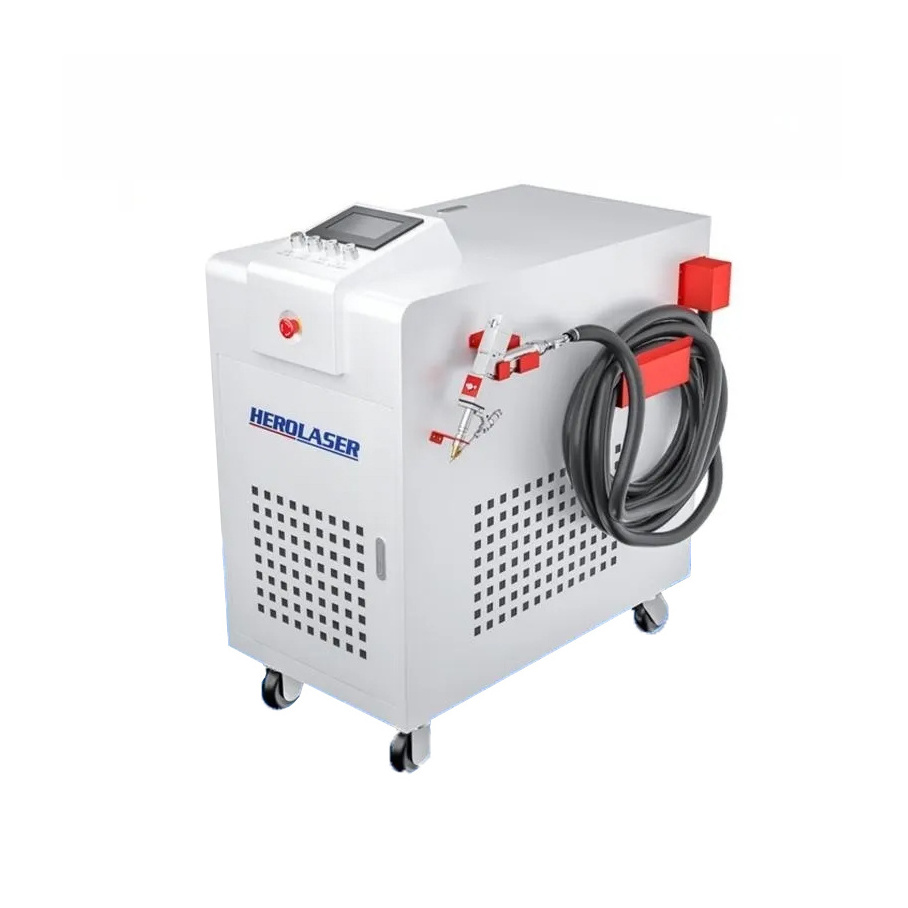

Laser Welder Machine
-
Application:
-
welding work
-
Laser wavelength:
-
1070NM
-
Laser source:
-
Fiber optic
-
Laser power:
-
1500W 2000W 3000W (optional)
-
Welding gun:
-
Handheld Gun
-
Way of working:
-
Hand-held Welding
-
Advantage:
-
Eeasy Operate
-
Machine Type:
-
Laser Spot Welding Machine Tools
-
Cooling method:
-
Water Cooliing
Quick Details
-
Max. Output Power:
-
3000W
-
Usage:
-
Welding work
-
Laser Source Brand:
-
None
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
herolaser
-
Single Pulse Energy:
-
none
-
Pulse Width:
-
none
-
Wavelength:
-
1070nm
-
Focal Spot Diameter:
-
none
-
Dimensions:
-
1050mm*670mm*1200mm
-
Weight (KG):
-
240 KG
-
Core Components:
-
Lasers
-
Product name:
-
Laser Welder Machine
-
Application:
-
welding work
-
Laser wavelength:
-
1070NM
-
Laser source:
-
Fiber optic
-
Laser power:
-
1500W 2000W 3000W (optional)
-
Welding gun:
-
Handheld Gun
-
Way of working:
-
Hand-held Welding
-
Advantage:
-
Eeasy Operate
-
Machine Type:
-
Laser Spot Welding Machine Tools
-
Cooling method:
-
Water Cooliing
Product Description
Specification
|
Welding parameter：
|
|
|
||
|
Serial number
|
Project name
|
argument
|
||
|
1
|
Device name
|
Hand-held fiber laser welding machine
|
||
|
2
|
Laser power
|
1000W、1500W 2000W、3000W
|
||
|
3
|
Laser wavelength
|
1070NM
|
||
|
4
|
Fiber length
|
Standard 10M Max support 15M(customized)
|
||
|
5
|
Working mode
|
Continuous/modulation
|
||
|
6
|
Welder speed range
|
0~120mm/s
|
||
|
7
|
Cooling machine
|
Industrial thermostatic water tank
|
||
|
8
|
Operating ambient temperature range
|
15~35℃
|
||
|
9
|
Working environment humidity range
|
<70% no condensation
|
||
|
10
|
Welding thickness recommendation
|
0.5-5mm
|
||
|
11
|
Welding gap requirement
|
≤0.5mm
|
||
|
12
|
Operating voltage
|
AC220VIAC380V
|
||
|
13
|
External machine size
|
1050mm*670mm*1200mm
|
||
|
14
|
Equipment weight
|
240KG
|
||
