Quick Details
-
Brand Name:
-
HUANET
-
Use:
-
FTTX, FTTH
-
Warranty Time:
-
1YEARS
-
Product name:
-
1GE+1FE+CATV+POTS+WIFI XPON ONU
-
Upstream:
-
1310nm
-
Downstream:
-
1490nm
-
Receiving sensitivity:
-
≤-27dBm
-
Connector Type:
-
SC APC
-
Transmitting optical power:
-
0~+4dBm
-
Warranty:
-
1 YEARS
Quick Details
-
Type:
-
ONU
-
Model Number:
-
HG623-FTW
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HUANET
-
Use:
-
FTTX, FTTH
-
Warranty Time:
-
1YEARS
-
Product name:
-
1GE+1FE+CATV+POTS+WIFI XPON ONU
-
Upstream:
-
1310nm
-
Downstream:
-
1490nm
-
Receiving sensitivity:
-
≤-27dBm
-
Connector Type:
-
SC APC
-
Transmitting optical power:
-
0~+4dBm
-
Warranty:
-
1 YEARS
Overview

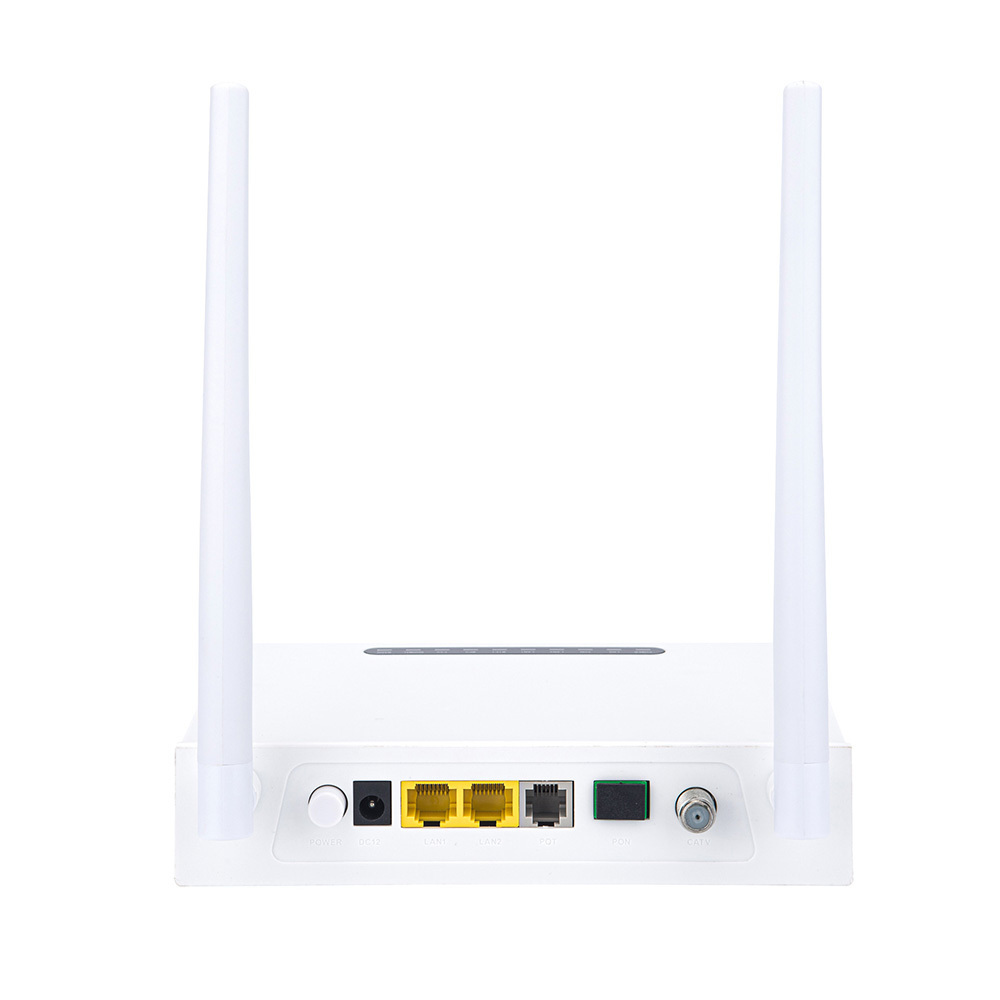

HG623-FTW is designed as HGU (Home Gateway Unit) in different FTTH solutions; the carrier-class FTTH application provides data service access. It is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT. It is designed by Realtek chipset 9602C.
Feature
l S upport s GPON G.984/G.988 standards and IEEE802.3 ah .
l Support CATV interface for Video Service and remote control by Major OLT
l Support SIP Pro toc ol for Vo IP Service
l Integrated line testing compliant with GR-909 on POTS
l Support 802.11n WIFI (2x2 MIMO) function
l Support NAT, Firewall function.
l Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
l Support port mode of VLAN configuration
l Support LAN IP and DHCP Server configuration
l Support TR069 Remote Configuration and WEB Management
l Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode
l Support IPv4/IPv6 dual stack
l Support IGMP transparent/snooping/proxy
l In compliant with IEEE802.3ah standard
l Compatible with popular OLT( Huawei , ZTE, FiberHome...)
Specification
|
Technical Item |
Details |
|
P ON interface |
1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310n m; Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-2 7 dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
|
LAN interface |
1 x 10/100/1000Mbps and 1 x 10/100Mbps auto adaptive Ethernet interfaces . Full/Half, RJ45 connector |
|
WIFI Interface |
Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: M ultiple SSID Channel:13 Modulation type: DSSS , CCK and OFDM Encoding scheme: BPSK , QPSK , 16QAM and 64QAM |
|
CATV Interface |
RF, optical power : +2~-18dBm Optical reflection loss: ≥ 45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 82dBuV ( -7dBm optical input ) AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥ 32dB(-14dBm optical input), > 35(-10dBm) |
|
POT S Port |
RJ11 Max 1km distance Balanced Ring, 50V RMS |
|
LED |
10 LED, For Status of WIFI , WPS , PWR , LOS , PON , LAN1~LAN2 , WORN , NORMAL(CATV), FXS |
|
Push-Button |
4 , for Function of Power on/off, Reset , WPS, WIFI |
|
Operating condition |
Temperature : 0 ℃ ~+ 5 0 ℃ Humidity :10%~ 90% ( non-condensing ) |
|
Storing Condition |
Temperature : -40 ℃~ +60 ℃ Humidity :10%~ 90% ( non-condensing ) |
Application
l Typical Solution: FTTO(Office) , FTTB(Building) , FTTH(Home)
Typical Service: Broadband Internet access, IP T V, VOD, video surveillance, CATV , VoIP etc.
