Quick Details
-
Cutting Thickness:
-
Depends on Material
-
Place of Origin:
-
China
-
Brand Name:
-
LXSHOW
-
Weight (KG):
-
4200 KG
-
Applicable Industries:
-
Metal Cutting Industry
-
Core Components:
-
Laser Generator
-
Feature:
-
Easy Operation
-
Machine Dimension:
-
2876*4626*1805mm
-
Max Acceleration:
-
1.5G
-
Repeated Positioning Accuracy:
-
±0.02mm
-
Working voltage:
-
380V
-
Frequency:
-
50/60Hz
-
Controller:
-
Bochu
-
Color:
-
Green and White
-
After Sale Service:
-
Support
-
Door to Door Service:
-
Support
-
Operating Instructions:
-
Support
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
120m/min
-
Cooling Mode:
-
WATER COOLING
-
Cutting Thickness:
-
Depends on Material
-
Place of Origin:
-
China
-
Brand Name:
-
LXSHOW
-
Weight (KG):
-
4200 KG
-
Applicable Industries:
-
Metal Cutting Industry
-
Core Components:
-
Laser Generator
-
Feature:
-
Easy Operation
-
Machine Dimension:
-
2876*4626*1805mm
-
Max Acceleration:
-
1.5G
-
Repeated Positioning Accuracy:
-
±0.02mm
-
Working voltage:
-
380V
-
Frequency:
-
50/60Hz
-
Controller:
-
Bochu
-
Color:
-
Green and White
-
After Sale Service:
-
Support
-
Door to Door Service:
-
Support
-
Operating Instructions:
-
Support
3
3
years machine warranty
1
1
hour give after sale soluation
1
1
day Solve complaint
Machine Description
^ ^Tips: Cnc Fiber Laser Cutting Machine (Optional)
1. Fiber laser cutter power: 500W, 750W, 800W, 1000W, 1500W, 2000W, 3000W, 4000W, 6000w, 10000w, 12000w, etc.
2. Fiber laser generator: JPT, RAYCUS, MAX, NIGHT, IPG etc.
3. Fiber laser cutter materials: Iron, aluminum, carbon steel, stainless steel, copper, hardware and another metal sheet materials.
4. Other machine optional parts can be chosen, such as, rotary axis, exchange working table, full cover, etc.
5. China Top fiber laser machine cutting manufactuers, JNLINK, low cost and best quality, with CE etc certificates.
2. Fiber laser generator: JPT, RAYCUS, MAX, NIGHT, IPG etc.
3. Fiber laser cutter materials: Iron, aluminum, carbon steel, stainless steel, copper, hardware and another metal sheet materials.
4. Other machine optional parts can be chosen, such as, rotary axis, exchange working table, full cover, etc.
5. China Top fiber laser machine cutting manufactuers, JNLINK, low cost and best quality, with CE etc certificates.
Machine Parameters
|
1
|
Model
|
LX3015D
|
|
2
|
Cutting working area
|
3000x1500mm
|
|
3
|
Laser Generator
|
Raycus / IPG /MAX
|
|
4
|
Transmission system
|
Gear + rails
|
|
5
|
Fiber Laser Power
|
1000W
|
|
6
|
X.Y axis location accuracy
|
±0.01mm
|
|
7
|
X.Y axis repeat location accuracy
|
±0.01mm
|
|
8
|
X.Y axis max moving speed
|
120m/min
|
|
9
|
Laser wave length
|
1064nm
|
|
10
|
Machine color
|
Support custom made
|
|
11
|
Gross weight
|
3500KG
|
|
12
|
Machine Warranty
|
3 years
|

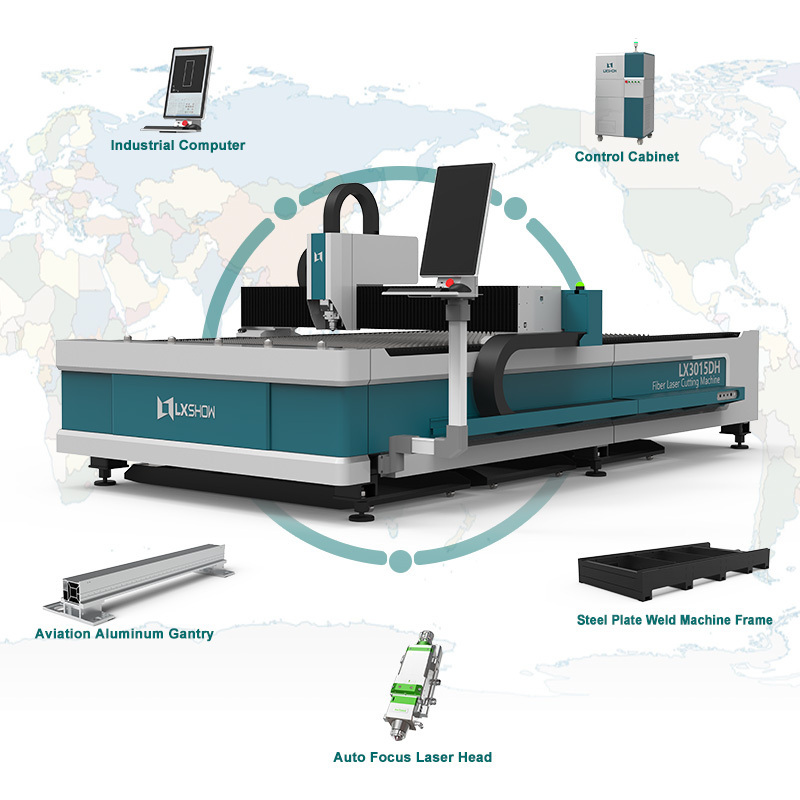

Machine Parts
LXSHOW Laser Promise
* Every machine parts must be quality assurance!
* Every machine parts must be tested well!
* Every machine parts must be quality assurance!
* Every machine parts must be tested well!
Fiber laser cutting machine head
> Raytools Laser CuttingHead, Optimized optical configuration and smooth and efficient airflow design. Au3tech, Pretic, WSX, can be optional.
Fiber Laser Generator
> Higher photoelectric conversion efficiency, more stable beam quality, stronger anti-high-reflection ability, to achieve better cutting results
Fiber Laser Cutting Control Display
> Fiber laser controller Bochu or other was installed in the control cabinet, you can operate the laser machine according to the Control Display, VERY EASY OPERSTION!
LXSHOW CNC FIBER LASER METAL SHEET CUTTING MACHINE
MORE Cost-saving!
MORE Cost-saving!
MORE Flexible!
MORE Safer!
Consider Everything for Customers, Create More Value for Customers!
Automatic oiling system:
More cost-saving
More cost-saving
DSP Controller:
More flexible operation
More flexible operation
Alarm light:
More safer operation
More safer operation
Machine Application
Application Materials:
Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate,
Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, If you equipped with the rotary axis, Metal Plate, all ok.
Application Industries:
LXSHOW CNC Fiber Laser Cutting Machines are widely used in manufacture Billboard, Signs, Advertising, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, If you equipped with the rotary axis, Metal Plate, all ok.
Application Industries:
LXSHOW CNC Fiber Laser Cutting Machines are widely used in manufacture Billboard, Signs, Advertising, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
We Support FREE Testing Samples for Customers
If you have any questions about the fiber laser cutting machine or other related questions, please contact us without hesitation.
