Quick Details
-
Surface Finish:
-
2B
-
Invoicing:
-
by actual weight
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Comflex
-
Model Number:
-
NPT fitting
-
Application:
-
Industrial
-
Outer Diameter:
-
6mm
-
Product name:
-
Stainless Steel Hose With Fitting
-
Fittings:
-
NPT BSP
-
Diameter:
-
DN6 - 400 mm
-
Pressure:
-
up to 40 bar
-
Thickness:
-
0.2 - 0.6 mm
-
Material of Hose:
-
SS 304, 321, 316L
-
Material of Fitting:
-
Stainless Steel, Aluminum, etc.
-
Length:
-
According to Buyers' Requirement
-
Transport Package:
-
Standard Seaworthy or Air Package
-
HS Code:
-
730799000
Quick Details
-
Steel Grade:
-
316L, 316, 321, 304
-
Tolerance:
-
±1%
-
Grade:
-
300 Series
-
Surface Finish:
-
2B
-
Invoicing:
-
by actual weight
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Comflex
-
Model Number:
-
NPT fitting
-
Application:
-
Industrial
-
Outer Diameter:
-
6mm
-
Product name:
-
Stainless Steel Hose With Fitting
-
Fittings:
-
NPT BSP
-
Diameter:
-
DN6 - 400 mm
-
Pressure:
-
up to 40 bar
-
Thickness:
-
0.2 - 0.6 mm
-
Material of Hose:
-
SS 304, 321, 316L
-
Material of Fitting:
-
Stainless Steel, Aluminum, etc.
-
Length:
-
According to Buyers' Requirement
-
Transport Package:
-
Standard Seaworthy or Air Package
-
HS Code:
-
730799000
Hoses With NPT BSP Fittings
Product Description
What is the difference between BSP and NPT pipe fitting threads?
BSP (British Standard Pipe) are usually a combination of BSPT (British Standard Pipe Taper) threads for male threaded fittings and BSPP (British Standard Pipe Parallel) threads for female threaded fittings. This ensures a locking occurs between the mating surfaces. NPT (National Pipe Thread) is an American standard pipe thread. BSP and NPT are not interchangeable.
BSP (British Standard Pipe) are usually a combination of BSPT (British Standard Pipe Taper) threads for male threaded fittings and BSPP (British Standard Pipe Parallel) threads for female threaded fittings. This ensures a locking occurs between the mating surfaces. NPT (National Pipe Thread) is an American standard pipe thread. BSP and NPT are not interchangeable.
What type of Stainless Steel BSP and NPT Pipe Fittings are available?
A wide range of grade 316 Stainless Steel fittings are available in both BSP and NPT thread forms including Hex Nipples, Weld Nipples, Barrel Nipples, Hex Plugs, Caps, Sockets and Elbow Fittings. Tees, Adapters and Reducers as well as Unions and BSP Ball Valves.
A wide range of grade 316 Stainless Steel fittings are available in both BSP and NPT thread forms including Hex Nipples, Weld Nipples, Barrel Nipples, Hex Plugs, Caps, Sockets and Elbow Fittings. Tees, Adapters and Reducers as well as Unions and BSP Ball Valves.
Feature
1. Poppet valves are available to prevent uncoupled leakage.
2. Poppet valves open automatically when coupled, within rated working pressure, to keep the expedite flowing.
3. Critical parts are hardened for durability.
4. Secured ball-locking mechanism holds the two matchable parts together.
5.Prevention of hose torsion due to movement possibity in coupled position.
6. Socket and plug are precision machined from solid bar stock.

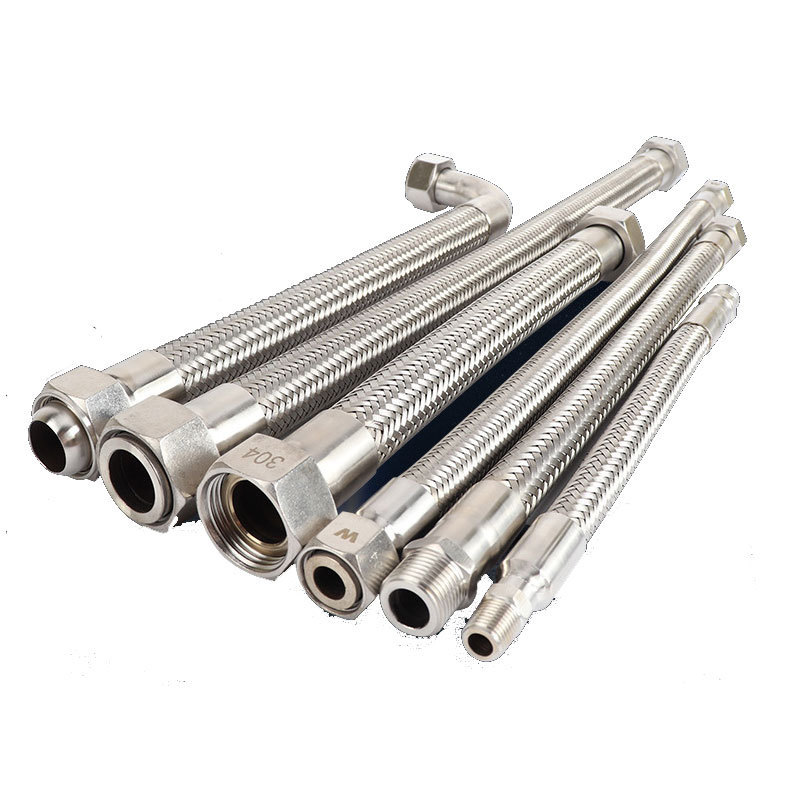

Flexible Metal Braided Hoses with fittings
Flexible Metal Braided Hoses with fittings can be used in all kinds of steam, water, oil and gas systems with its pressure resistance and elastic structure.The braids not only share the static load of the metal hose in axial and radial direction, but also ensures the safe and reliable operation of the metal hose under the condition that the fluid flows along the pipe and
produces pulsation effect. At the same time, it also ensures that the corrugated part of the hose is not directly affected by relative friction, impact and other mechanical damages.The service life in the hoses is equal to the total loading speed in the elapsed time until the first leakage begins. The strength of the hose with braided can be increased by ten to dozens of times.The maximum shielding capacity can reach 99.95%. The material of the braids are generally the same as that of the corrugated steel hose material, and it is also used in combination with two materials. Ordinary metal hoses use only one layer of braids; for special applications, they are also woven in two or three layers.
produces pulsation effect. At the same time, it also ensures that the corrugated part of the hose is not directly affected by relative friction, impact and other mechanical damages.The service life in the hoses is equal to the total loading speed in the elapsed time until the first leakage begins. The strength of the hose with braided can be increased by ten to dozens of times.The maximum shielding capacity can reach 99.95%. The material of the braids are generally the same as that of the corrugated steel hose material, and it is also used in combination with two materials. Ordinary metal hoses use only one layer of braids; for special applications, they are also woven in two or three layers.
Specification
|
NO.
|
DN
|
ID
|
OD
|
Pitch distance
|
Wall thickness
|
Theoretical weight
(KG/M)
|
|
1
|
12
|
11.6
|
18
|
3
|
0.2
|
0.17
|
|
2
|
15
|
14.4
|
21.5
|
3.5
|
0.3
|
0.28
|
|
3
|
18
|
17.4
|
25.5
|
3.5
|
0.3
|
0.34
|
|
4
|
20
|
19.4
|
27
|
4.5
|
0.3
|
0.38
|
|
5
|
25
|
24.4
|
32.5
|
5
|
0.3
|
0.46
|
|
6
|
32
|
31.4
|
40
|
5.5
|
0.3
|
0.6
|
|
7
|
40
|
39.4
|
50
|
6
|
0.3
|
0.75
|
|
8
|
50
|
49.4
|
63
|
7.5
|
0.3
|
0.9
|
|
9
|
65
|
64.4
|
81
|
9
|
0.3
|
1.6
|
|
10
|
80
|
79.2
|
98
|
10.5
|
0.4
|
2
|
|
11
|
100
|
99.2
|
120
|
13
|
0.4
|
2.6
|
|
12
|
125
|
124
|
150
|
14.5
|
0.5
|
3.9
|
|
13
|
150
|
149
|
180
|
17.5
|
0.5
|
4.3
|
|
14
|
200
|
198.8
|
240
|
24
|
0.6
|
6.8
|
|
15
|
250
|
248.4
|
300
|
28
|
0.8
|
11
|
|
16
|
300
|
298
|
355
|
33.5
|
1
|
17.5
|
|
17
|
350
|
348
|
410
|
35
|
1
|
20
|
|
18
|
400
|
397.6
|
460
|
40
|
1.2
|
25
|
|
19
|
450
|
447.6
|
489
|
45
|
1.2
|
29
|
|
20
|
500
|
497.6
|
545
|
45
|
1.2
|
33.5
|
|
21
|
600
|
597.6
|
650
|
50
|
1.2
|
40.5
|
Different connection types
* BSPT Taper Male,
* BSP Cone Female with swivel nut
* BSP Flat face Female with Swivel nut
* DIN2828 camlock couplings
* NPT Fittings
* Flange connections, the flange codes can be DIN2500, ANSI B 16.5, JIS B2210-84.
* BSP Cone Female with swivel nut
* BSP Flat face Female with Swivel nut
* DIN2828 camlock couplings
* NPT Fittings
* Flange connections, the flange codes can be DIN2500, ANSI B 16.5, JIS B2210-84.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
