High Speed coin stamping machine JIUYING automatic power press machine for sale

High Speed coin stamping machine JIUYING automatic power press machine for sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $9832.21

≥2 Sets

US $9652.36

≥3 Sets

US $9588.76

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Motor Power (kW):: 4

Model Number:: J23/J21S

Weight (T):: 16

Voltage:: 380V/220V Optional

Name:: power press punching machine

Process way:: mechanical,pneumatic punching

Function:: power press punching

Usage:: Metal Press

Model:: Deep Throat Punching Machine

Materials:: Stainless Steel,carbon steel

Color:: Optional Color Hydraulic Press

Power press:: Frame Pneumatic Power Press

Product name:: Power Press Machine

Quick Details

Place of Origin:: Liaoning, China

Brand Name:: JIUYING

Dimension(L*W*H):: 1500x1100x2400

Motor Power (kW):: 4

Model Number:: J23/J21S

Weight (T):: 16

Voltage:: 380V/220V Optional

Name:: power press punching machine

Process way:: mechanical,pneumatic punching

Function:: power press punching

Usage:: Metal Press

Model:: Deep Throat Punching Machine

Materials:: Stainless Steel,carbon steel

Color:: Optional Color Hydraulic Press

Power press:: Frame Pneumatic Power Press

Product name:: Power Press Machine

Contacts: David Liu Tel: +86-411-82766928 Fax: +86-411-39015062 Email: Liu@weldcnc.com Mob/Whatsapp: +86 133 9411 0095

Our order and visitors

Since its establishment, Dalian J&Y Machinery Co., Ltd. has been adhering to the enterprise spirit of "pursuing excellence and exceeding expectations", insisting on improving user satisfaction and its own service level, receiving customers with high-level and convenient services, and devoting This kind of demand has won unanimous praise from customers.

Product Description

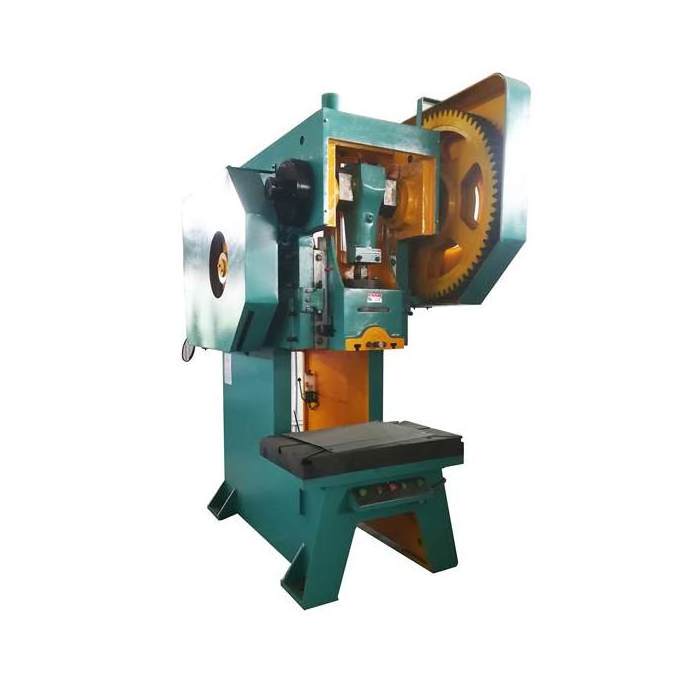

J23/J21S Power Press Punching Machine

Plate j23 40t hole 30ton louver 16 ton stamping steel mould crankshaft sheet metal c type 10 ton power press.
The power press is for cutting, punching, blanking, bending and light stretching work

Press Punching Machine

Powerful Press Punching Machine Features

1.It adopts horizontally placed crankshaft.
2. The crankshaft position is equipped with travel adjustment device.
3. It also equipped with rigid turn-key type clutch.
4. The machine is die height manually adjusted and degree scale display

Working Principle

Powerful Press Punching Machine

C- frame provides maximum rigidity and min deflection for accurate parts and long tool life.Steel-welded frame, high rigidity and
less deformation Compact.Thick plates and large columns provide you with the stable platform you need for your demanding
application.

Product detail presentation

Specification

Type	Normal pressure	Slipper stroke	Columns Distance	Power
J23-10T	100KN	50mm	160mm	1.1kw
J23-40T	400KN	100mm	260mm	4.0kw
J23-63T	630KN	100mm	280mm	5.5kw
J23-80T	800KN	120mm	300mm	7.5kw
J21-100T	1000KN	130mm	340mm	7.5kw
J21-125T	1250KN	140mm	370mm	11kw
J21S-10T	100KN	50mm	160mm	1.1kw
J21S-63T	630KN	100mm	280mm	5.5kw
J21S-125T	1250KN	140	370mm	11kw
