Quick Details
-
Rtk Accuracy:
-
H: 8mm + 1ppm; V: 15mm + 1ppm
-
Tracked Signals:
-
GPS/Glonass/Galileo/Bds/Sbas
-
Frequency:
-
410~470MHz
-
Static Accuracy:
-
H:2.5mm+0.5ppm;V:5mm+0.5ppm
-
Dimension:
-
12.9cm X 11.2cm
-
Radio Power:
-
Internal :2W / External :35W
-
Material:
-
Magnesium Aluminum Alloy Shell
-
Double Module Blue tooth:
-
BLEBlue tooth 4.0 standard, Blue tooth 2.1 + EDR standard
-
Rtk Initialization Time:
-
2-8s
-
Internal Memory:
-
4 GB
Quick Details
-
Warranty:
-
6 months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
South
-
Rtk Accuracy:
-
H: 8mm + 1ppm; V: 15mm + 1ppm
-
Tracked Signals:
-
GPS/Glonass/Galileo/Bds/Sbas
-
Frequency:
-
410~470MHz
-
Static Accuracy:
-
H:2.5mm+0.5ppm;V:5mm+0.5ppm
-
Dimension:
-
12.9cm X 11.2cm
-
Radio Power:
-
Internal :2W / External :35W
-
Material:
-
Magnesium Aluminum Alloy Shell
-
Double Module Blue tooth:
-
BLEBlue tooth 4.0 standard, Blue tooth 2.1 + EDR standard
-
Rtk Initialization Time:
-
2-8s
-
Internal Memory:
-
4 GB
Products Description
Technical Specifications
|

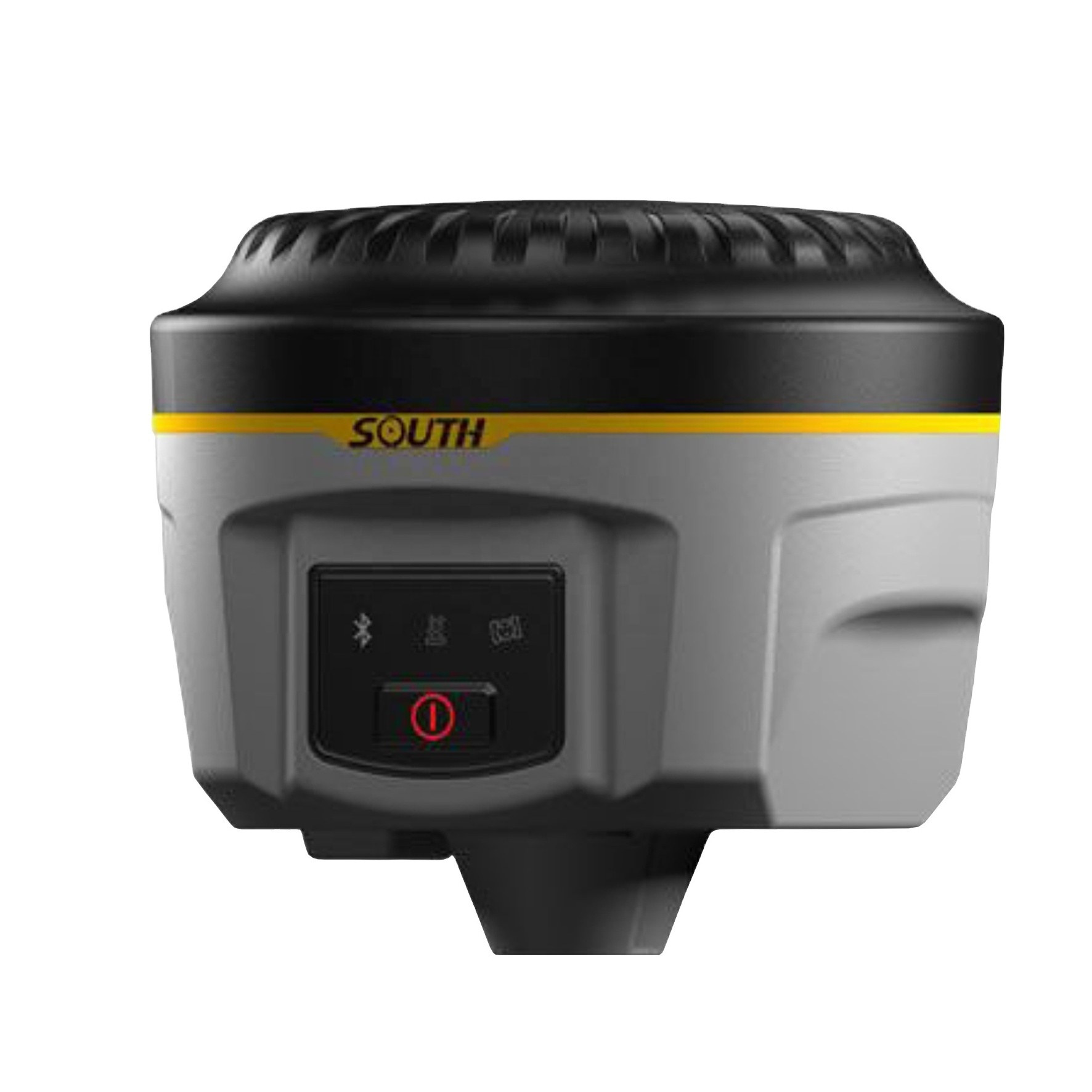

MODEL
|
G1
|
|
|
Tracking Capability
|
|
|
|
Number of Channels
|
220 channels
|
|
|
Tracked Signals:
|
GPS: L1C/A, L1C, L2C, L2E, L5
|
|
|
|
GLONASS: L1C/A, L1P, L2C/A, L2P, L3
|
|
|
|
Galileo: E1, E5A, E5B
|
|
|
|
BDS: B1, B2 , B3
|
|
|
|
SBAS: WAAS, EGNOS, GAGAN, MSAS, QZSS
|
|
|
Positioning Accuracy
|
|
|
|
Code differential GNSS positioning(DGPS)
|
|
|
|
Horizontal
|
±0.25 m + 1 ppm RMS
|
|
|
Vertical
|
±0.50 m + 1 ppm RMS
|
|
|
SBAS differential positioning accuracy
|
Typically <5 m
|
|
|
Static GNSS surveying
|
|
|
|
Horizontal
|
±2.5 mm + 0.5 ppm RMS
|
|
|
Vertical
|
±2.5 mm + 0.5 ppm RMS
|
|
|
Real Time Kinematic surveying[RTK]
|
|
|
|
Single Baseline <30 km
|
|
|
|
Horizontal
|
±8 mm + 1 ppm RMS
|
|
|
Vertical
|
±15 mm + 1 ppm RMS
|
|
|
Network RTK
|
|
|
|
Horizontal
|
±8 mm + 0.5 ppm RMS
|
|
|
Vertical
|
±15 mm + 0.5 ppm RMS
|
|
|
Initialization time
|
Typically < 8seconds
|
|
|
Initialization reliability
|
Typically > 99.9%
|
|
|
Tilt survey(2m GPS pole)
|
|
|
|
10 degree to 30 degree
|
10mm to 30mm
|
|
|
Data cloud service
|
|
|
|
Web page cloud service management platform, supporting online register etc.
|
|
|
|
Hardware Physical
|
|
|
|
Size (W×H)
|
12.9 cm x 11.2 cm
|
|
|
Weight
|
<1KG
|
|
|
Material
|
Magnesium alloy shell
|
|
|
Operating Temperature
|
-45ºC to +60ºC
|
|
|
Storage Temperature
|
-55ºC to +85ºC
|
|
|
Humidity
|
100%, condensing
|
|
|
Dust/Water Protection
|
IP67 at closing all connector caps. Protected agaist temporary immersion up to 1m depth.
|
|
|
Shock and vibration
|
Designed to survive a 2m natural fall onto concrete.
|
|
|
Electrical
|
|
|
|
Power 9 to 25V DC external power input with over-voltage protection
|
|
|
|
Rechargeable, removable 7.4V, 3.4Ah Lithium-ion battery
|
|
|
|
input voltage
|
100 to 240V AC[50/60Hz]
|
|
|
Operating times on single battery
|
|
|
|
Static mode
|
7 hours
|
|
|
UHF receive only option
|
5 hours
|
|
|
WCDMA/GPRS receive option
|
6 hours
|
|
