Quick Details
-
Brand Name:
-
Iwill
-
Model Number:
-
ZPC-610(H110)
-
Place of Origin:
-
Guangdong, China
-
Display port:
-
Support 1*VGA, 1*DVI-D, 1*HD port
-
material of case:
-
Advanced flowerless galvanized sheet structure
-
CPU:
-
Intel core i3 i5 i7 optional
-
LAN:
-
2*1000M Lan
-
Memory:
-
2*DDR4 2133/2400Mhz Ram Slot, Max 32G
-
Storage:
-
Support1*MSATA, 3*2.5''/3.5'' SSD/HDD
-
Operating System:
-
Win 7/8/10 , linux OS
-
USB:
-
4*USB3.0, 2*USB2.0
-
Chipset:
-
Intel H110 Chipset
-
Key Words:
-
4U Rack computer
Quick Details
-
Type:
-
Rack
-
Processor Type:
-
Intel Core i3 i5 i7 optional
-
Processor Main Frequency:
-
3.4Ghz
-
Brand Name:
-
Iwill
-
Model Number:
-
ZPC-610(H110)
-
Place of Origin:
-
Guangdong, China
-
Display port:
-
Support 1*VGA, 1*DVI-D, 1*HD port
-
material of case:
-
Advanced flowerless galvanized sheet structure
-
CPU:
-
Intel core i3 i5 i7 optional
-
LAN:
-
2*1000M Lan
-
Memory:
-
2*DDR4 2133/2400Mhz Ram Slot, Max 32G
-
Storage:
-
Support1*MSATA, 3*2.5''/3.5'' SSD/HDD
-
Operating System:
-
Win 7/8/10 , linux OS
-
USB:
-
4*USB3.0, 2*USB2.0
-
Chipset:
-
Intel H110 Chipset
-
Key Words:
-
4U Rack computer
Notice: This link's price is barebone system price, doesn't include CPU, ram and hard disk, WiFi card and Wifi Antennas, if you need them, please contact us, we will give you the best price.

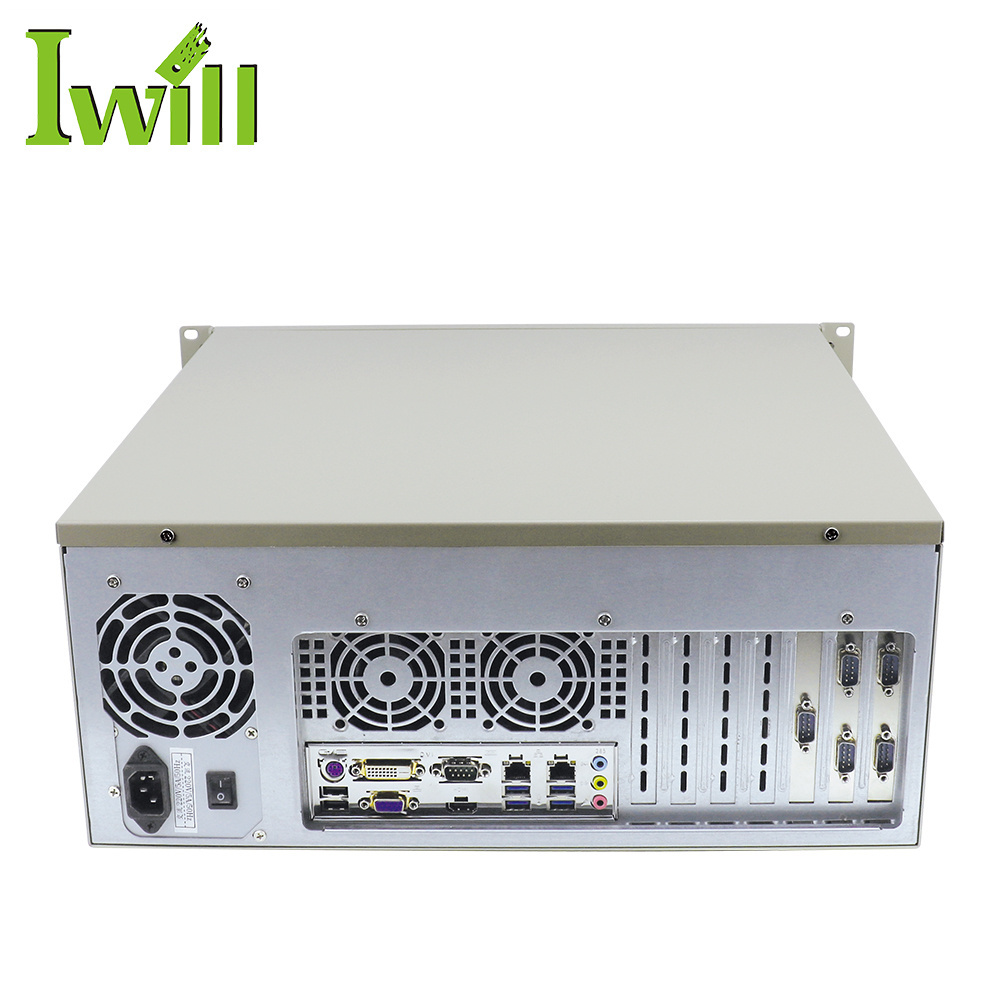

4u server rackmount case i5-6500 industrial Computer for network server
Click here , contact us to get the latest price list and more info
|
Specification |
|||
|
Model |
ZPC-610(H110)
|
||
|
Case Color |
White(color can be customized)
|
||
|
Material |
Advanced flowerless galvanized sheet 19'' 4U Server Case
|
||
|
CPU |
Intel Core i3 6100 dual core 3.7Ghz Intel Core i5 6500 quad core 3.2GHz
Intel Core i7 6700 quad core 3.4Ghz
|
||
|
Chipset |
Adopt Intel H110 chipset
|
||
|
BIOS |
AMI UEFI BIOS |
||
|
RAM
|
Support 2*DDR4 2133/2400Mhz DIMM ram slot, support max 32G
|
||
|
Storage |
Support 1*MSATA, 3*2.5''/3.5'' SSD/HDD
|
||
|
Display Chip |
Integrated Intel HD Graphics Card 530
|
||
|
Display Interface |
Support 1*VGA, 1*DVI-D , 1*HD port
|
||
|
I/O |
4*USB3.0, 2*USB2.0 |
||
|
1*VGA, 1*DVI-D, 1*HD Port
|
|||
|
2*1000M Lan |
|||
|
6*COM (COM3,4 support RS232/422/485 COM optional)
|
|||
|
1*PS/2 |
|||
|
3*Audio |
|||
|
1*Power Switch
|
|||
|
1* Reset Button |
|||
|
Network Card |
1*Intel i211-AT 1000M lan, 1*Intel i219-LM 1000M Lan
|
||
|
Expansion |
Support 1*PCIE X16 +1*PCIE X1+1*PCIE X4 +4*PCI Slot
|
||
|
Support 1*Mini-PCIE(Support MSATA) |
|||
|
Support 1*Mini-PCIE(Support WiFi/3G/4G), Embedded SIM Slot |
|||
|
Optional interface: CPIO, LPT, 1*USB2.0 (standard version without this port) |
|||
|
Watch Dog Timer |
Support |
||
|
Power Supply |
AC 100V~230V (50~60Hz), 300W rated power
|
||
|
Operating System |
Windows 7/8/10, Linux OS
|
||
|
Working Temperature |
-10° C - 60 ° C |
||
|
Working Humidity |
5% - 95% relative humidity, Non-condensing |
||
|
Size |
428*450*177.6 mm (L*W*H);
|
||
|
Latest Price List |
Click here , contact us to get the latest price list and more info |
||
|
Application |
Applied in Network server, KIOSK, Advertising Machine, Self-service Terminal, Electronic Whiteboard, ATM, POS/Retail, Networking, Automation, Surveillance Parking Pay Station, Channel System, Medical electronic etc . |
||
1.Delivery Time: 1 ~ 3 Days for one sample, 15 Working days for a large quantity.
2.Packaging Ways: Each pc for one neutral box.
3.Shipping Ways: For small amount, we advise our customer to take DHL, Fedex, UPS.
For a large quantity, we can support to ship by air or by sea.
1.We can provide OEM/ODM services .
2.We can sell one sample for your test .
3.High-quality product and competitive price.
4. 1 years Warranty, the second year and the third year,
we can repair it free. but we will charge for the parts that need to change.
