Quick Details
-
Thickness:
-
0.23 - 0.5 mm
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
Steel Coil
-
Product Name:
-
Cold Rolled non-oriented Silicon Steel
-
Width:
-
600-1250mm or As required
-
Surface:
-
coated
-
Keyword:
-
non-oriented silicon steel
-
Coil Weight:
-
3-5 Tons
-
MOQ:
-
1 Ton
-
Usage:
-
Transformer Core
-
Material:
-
ASTM/AISI/SGCC/CGCC/TDC51DZM/TDC52DTS350GD/TS550GD/DX51D+Z Q195-q345
-
Spangle:
-
Big Medium Small Zero
Quick Details
-
Type:
-
Non-oriented Silicon Steel
-
Tolerance:
-
±1%
-
Grade:
-
silicon steel
-
Thickness:
-
0.23 - 0.5 mm
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
Steel Coil
-
Product Name:
-
Cold Rolled non-oriented Silicon Steel
-
Width:
-
600-1250mm or As required
-
Surface:
-
coated
-
Keyword:
-
non-oriented silicon steel
-
Coil Weight:
-
3-5 Tons
-
MOQ:
-
1 Ton
-
Usage:
-
Transformer Core
-
Material:
-
ASTM/AISI/SGCC/CGCC/TDC51DZM/TDC52DTS350GD/TS550GD/DX51D+Z Q195-q345
-
Spangle:
-
Big Medium Small Zero

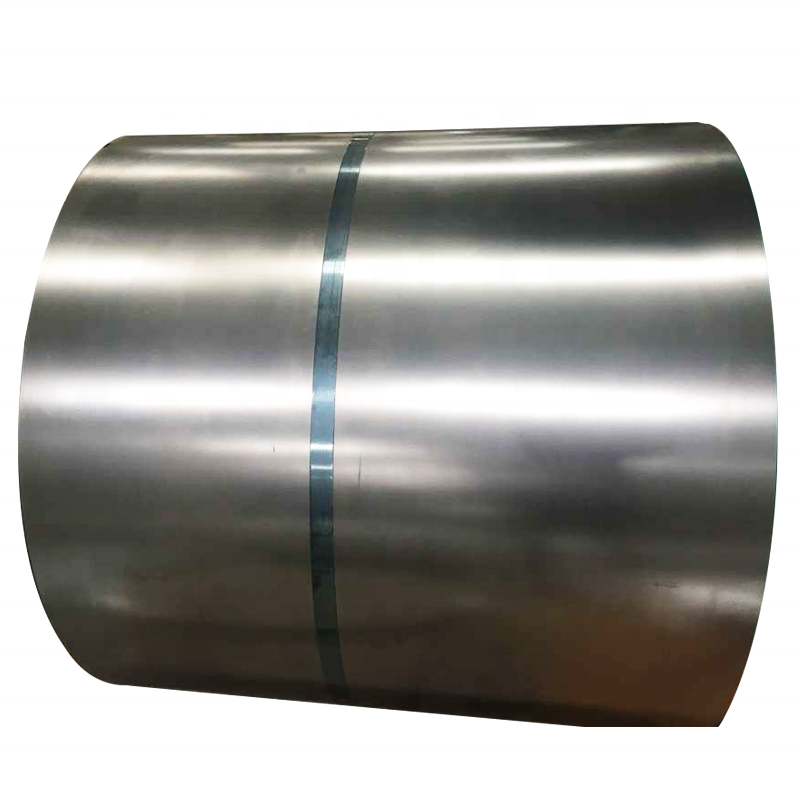

Wholesale Cold Rolled Silicon Steel 0.35mm 0.5mm Non-Grain-Oriented used for motors generators transformers iron core
Specification
|
Product Name
|
Cold Rolled Non-Oriented Silicon Steel
|
|
|
|
|||
|
Standard
|
B23G110, B27G120, B35G155, B23R080-B27R095
|
|
|
|
|||
|
Thickness
|
0.23mm-0.35mm
|
|
|
|
|||
|
Width
|
20mm-1250mm
|
|
|
|
|||
|
Length
|
Coil Or As Required
|
|
|
|
|||
|
Technique
|
Cold Rolled
|
|
|
|
|||
|
Surface Treatment
|
Coated
|
|
|
|
|||
|
Application
|
Mainly used in the manufacture of electric motors and generators
|
|
|
|
|||
|
Special Use
|
Silicon Steel
|
|
|
|
|||
|
Sample
|
For Free （Within 10 KG）
|
|
|
|
|||
The difference between oriented silicon steel and non-oriented silicon steel
Non-oriented silicon steel:
ferrosilicon alloy with very low carbon content. In the deformed and annealed steel sheet, its grains are distributed randomly. The silicon content of the alloy is 1.5% to 3.0%, or the sum of the silicon and aluminum content is 1.8% to 4.0%. The products are usually cold-rolled plates or strips, which are mainly used to manufacture motors and generators.
Oriented silicon steel : It has strong directionality, the lowest iron loss value in the rolling direction, the highest magnetic permeability, and a higher magnetic induction value under a certain magnetization field. The silicon content of oriented silicon steel is about 3%. It also requires a low content of oxide inclusions in the steel and must contain certain inhibitors (MnS, A1N).
Oriented silicon steel : It has strong directionality, the lowest iron loss value in the rolling direction, the highest magnetic permeability, and a higher magnetic induction value under a certain magnetization field. The silicon content of oriented silicon steel is about 3%. It also requires a low content of oxide inclusions in the steel and must contain certain inhibitors (MnS, A1N).
