Quick Details
-
Structure:
-
Control
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Model Number:
-
OV32
-
Port Size:
-
1 1/4"
-
Body material:
-
POM
-
Color:
-
White
-
Working medium:
-
Water
-
Standard or Nonstandard:
-
Standard
-
Temperature:
-
T100
-
Pressure:
-
1.6mpa
-
Spring material:
-
Stainless steel
-
Product name:
-
one way valve
Quick Details
-
Type:
-
Stop & Waste Valves, Washing Machine Valves, Plastic Check Valves, Globe Valves, Water Regulating Valves, Faucet Valve, REVERSING VALVE
-
Application:
-
Home Kitchen
-
Power:
-
Hydraulic
-
Structure:
-
Control
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Model Number:
-
OV32
-
Port Size:
-
1 1/4"
-
Body material:
-
POM
-
Color:
-
White
-
Working medium:
-
Water
-
Standard or Nonstandard:
-
Standard
-
Temperature:
-
T100
-
Pressure:
-
1.6mpa
-
Spring material:
-
Stainless steel
-
Product name:
-
one way valve
Application

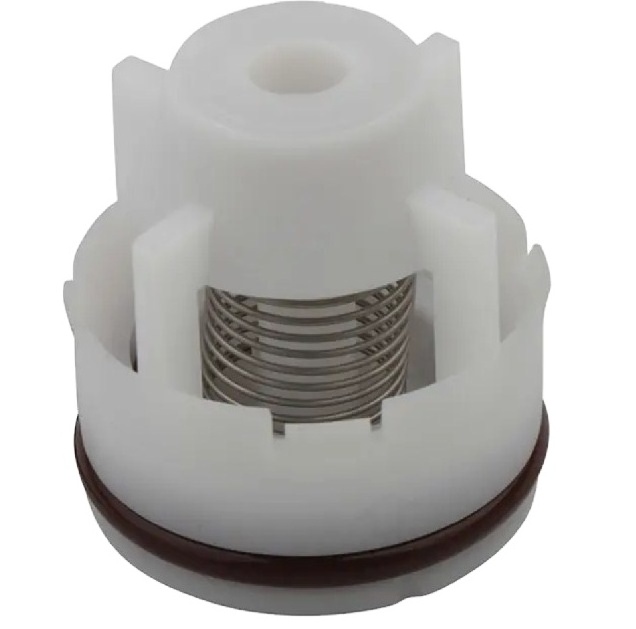

Application of the OV Series 32mm Water Meter Check Valve:
Water meter check valves are used in whether the inlet, outlet, connectors & fittings, or the plumbing systems to prevent the
backflow of water through a water meter. These plastic check valves, also called the one way stop valve, or non-return check
valve, serve several important functions, including:
Preventing Backflow:
Water meter check valves ensure that water flows in only one direction, preventing backflow from occurring. Backflow can happen
when the pressure in the downstream side of the system becomes greater than the pressure at the source. This can contaminate the
water supply or cause damage to the plumbing system.
Water Meter Accuracy:
Check valves help maintain accurate measurement of water usage by preventing backward rotation of the water meter. Without a check
valve, water could flow back through the meter, causing inaccurate measurements and potentially leading to billing discrepancies.
Protection against Pressure Surges:
Water meter check valves are used in whether the inlet, outlet, connectors & fittings, or the plumbing systems to prevent the
backflow of water through a water meter. These plastic check valves, also called the one way stop valve, or non-return check
valve, serve several important functions, including:
Preventing Backflow:
Water meter check valves ensure that water flows in only one direction, preventing backflow from occurring. Backflow can happen
when the pressure in the downstream side of the system becomes greater than the pressure at the source. This can contaminate the
water supply or cause damage to the plumbing system.
Water Meter Accuracy:
Check valves help maintain accurate measurement of water usage by preventing backward rotation of the water meter. Without a check
valve, water could flow back through the meter, causing inaccurate measurements and potentially leading to billing discrepancies.
Protection against Pressure Surges:
Check valves act as protection against pressure surges or water hammer. When there is a sudden
change in pressure within the plumbing system, such as when a valve is closed quickly, water hammer can occur. Check valves help
reduce the impact of these pressure surges, preventing damage to the plumbing system.
System Isolation:
change in pressure within the plumbing system, such as when a valve is closed quickly, water hammer can occur. Check valves help
reduce the impact of these pressure surges, preventing damage to the plumbing system.
System Isolation:
Check valves allow for isolation of the water meter and associated plumbing system. This enables maintenance or
repairs to be carried out without needing to shut off the water supply to the entire building. By closing the check valve, the
water meter and downstream plumbing can be isolated while work is performed.
Overall, water meter check valves play a crucial role in maintaining the integrity of the water supply system, ensuring accurate
metering, protecting against backflow, and facilitating maintenance and repairs.
repairs to be carried out without needing to shut off the water supply to the entire building. By closing the check valve, the
water meter and downstream plumbing can be isolated while work is performed.
Overall, water meter check valves play a crucial role in maintaining the integrity of the water supply system, ensuring accurate
metering, protecting against backflow, and facilitating maintenance and repairs.
Features and Advantages
Water meter check valves have several key features that make them effective and reliable
for their intended applications:
for their intended applications:
1. One-Way Flow:
These valves are designed to allow water to flow in one direction only. They prevent backflow by closing automatically when the
water tries to flow in the opposite direction, ensuring that water moves through the meter in the proper direction.
2. Spring-Loaded Mechanism:
Water meter check valves typically employ a spring-loaded mechanism that provides the necessary force to close the valve when
there is no forward flow. The spring ensures a positive seal and prevents any leakage or backflow.
3. Low Pressure Loss:
Check valves are designed with minimal resistance to flow. They have streamlined passages that minimize pressure drop, allowing
efficient water flow through the system.
4. Compact Design:
Water meter check valves are compact in size, making them suitable for installation in tight spaces. Their compact design also
ensures they can be easily integrated into plumbing systems without causing significant disruptions.
These valves are designed to allow water to flow in one direction only. They prevent backflow by closing automatically when the
water tries to flow in the opposite direction, ensuring that water moves through the meter in the proper direction.
2. Spring-Loaded Mechanism:
Water meter check valves typically employ a spring-loaded mechanism that provides the necessary force to close the valve when
there is no forward flow. The spring ensures a positive seal and prevents any leakage or backflow.
3. Low Pressure Loss:
Check valves are designed with minimal resistance to flow. They have streamlined passages that minimize pressure drop, allowing
efficient water flow through the system.
4. Compact Design:
Water meter check valves are compact in size, making them suitable for installation in tight spaces. Their compact design also
ensures they can be easily integrated into plumbing systems without causing significant disruptions.
5. Corrosion Resistance:
The OV series check valves are made of PVC, which offer excellent corrosion resistance. This ensures their longevity and
reliability even in environments with high moisture or chemical exposure.
6. Easy Maintenance:
Water meter check valves are generally straightforward to maintain. They can be inspected easily and cleaned if necessary. Some
models may also feature removable caps or access points for servicing or repairs.
7. Standards Compliance:
Quality check valves adhere to various industry standards and regulations to ensure their performance and reliability. Common
standards include those set by organizations such as NSF International (NSF/ANSI 61) and the American Water Works Association
(AWWA C508).
The OV series check valves are made of PVC, which offer excellent corrosion resistance. This ensures their longevity and
reliability even in environments with high moisture or chemical exposure.
6. Easy Maintenance:
Water meter check valves are generally straightforward to maintain. They can be inspected easily and cleaned if necessary. Some
models may also feature removable caps or access points for servicing or repairs.
7. Standards Compliance:
Quality check valves adhere to various industry standards and regulations to ensure their performance and reliability. Common
standards include those set by organizations such as NSF International (NSF/ANSI 61) and the American Water Works Association
(AWWA C508).
These features collectively contribute to the effectiveness and dependability of water
meter check valves, ensuring accurate measurement, preventing backflow, and maintaining the integrity of the water supply system.
meter check valves, ensuring accurate measurement, preventing backflow, and maintaining the integrity of the water supply system.
